Home >> Acura >> 1997 >> SLX V6-3.2L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Grounding Point >> Testing and Inspection

Grounding Point: Testing and Inspection

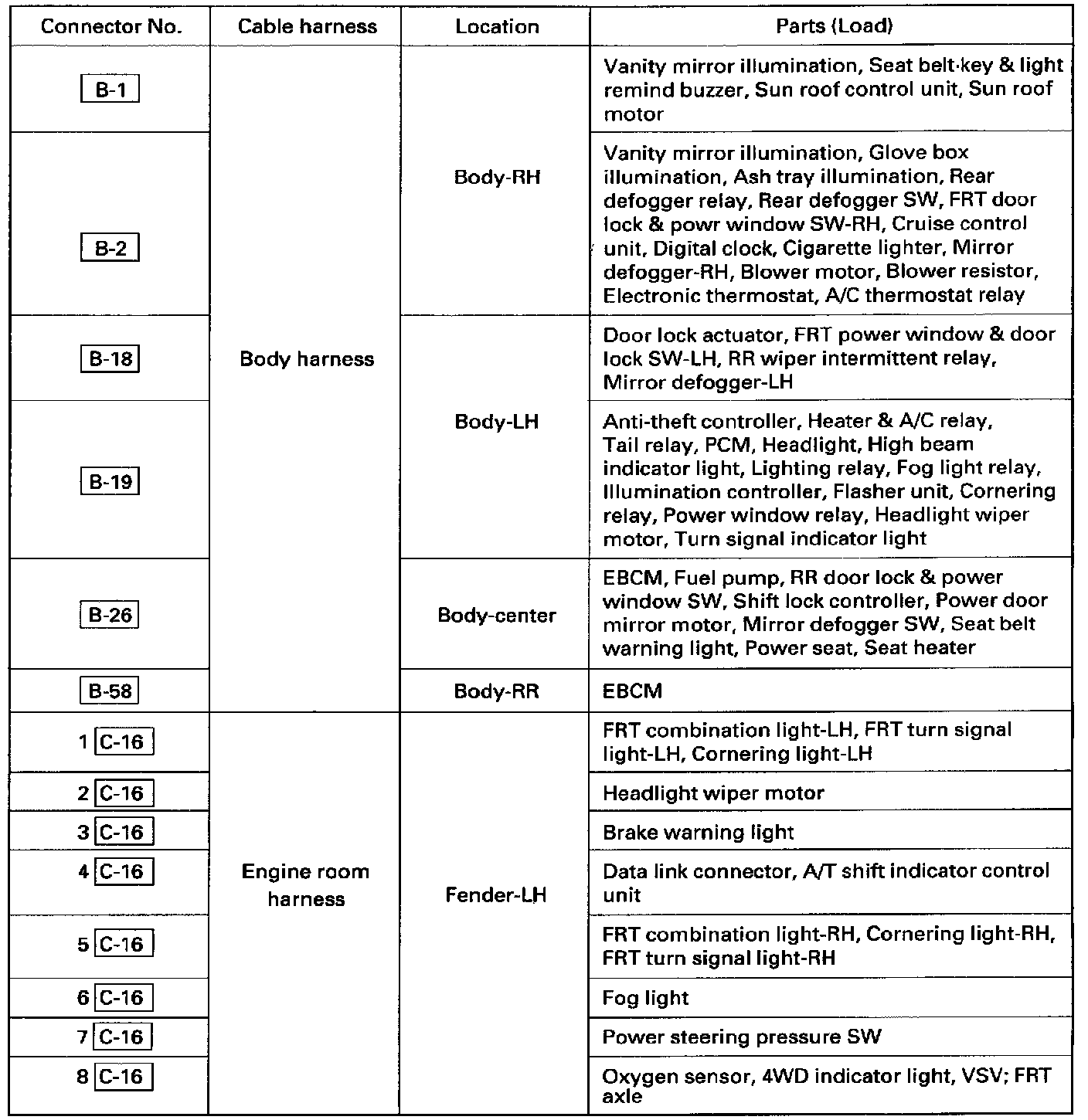

LOCATION - 1

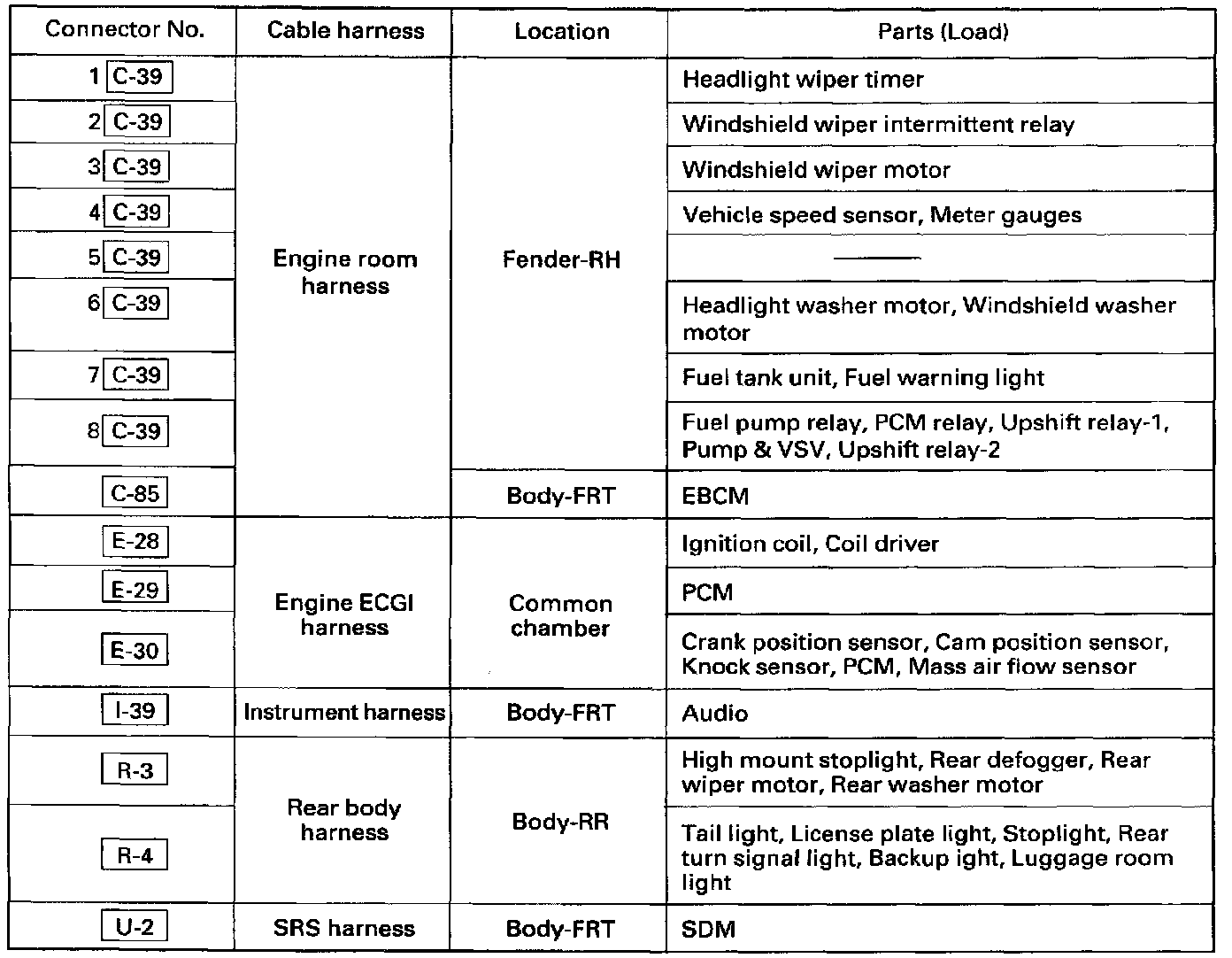

LOCATION - 2




LOCATION - 3
