Operation CHARM
: Car repair manuals for everyone.
Home
>>
Acura
>>
1997
>>
SLX V6-3.2L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Transmission Assembly
Transmission Assembly

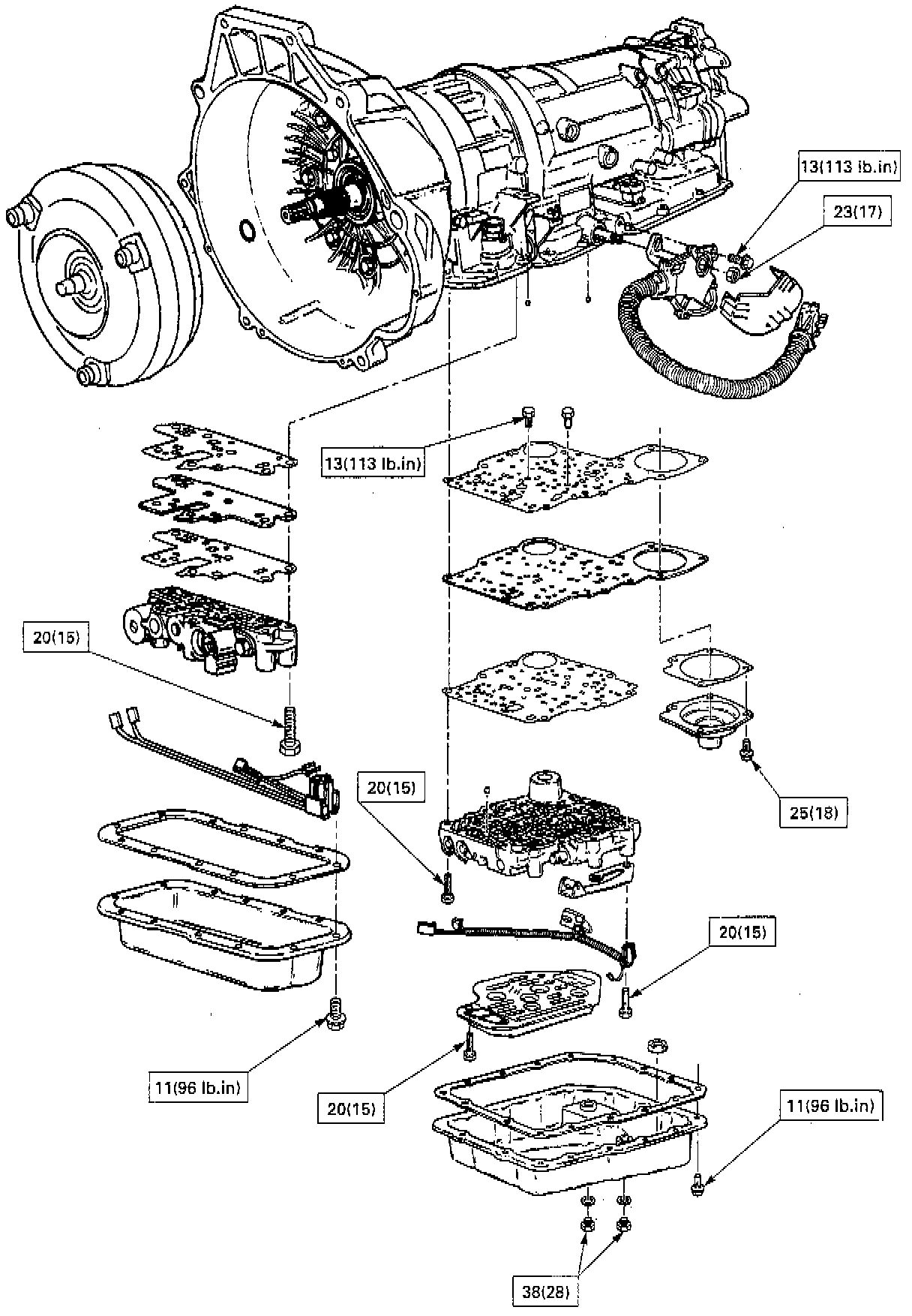

Captions Are Nm (ft. Lbs.) Part 1 Of 3:

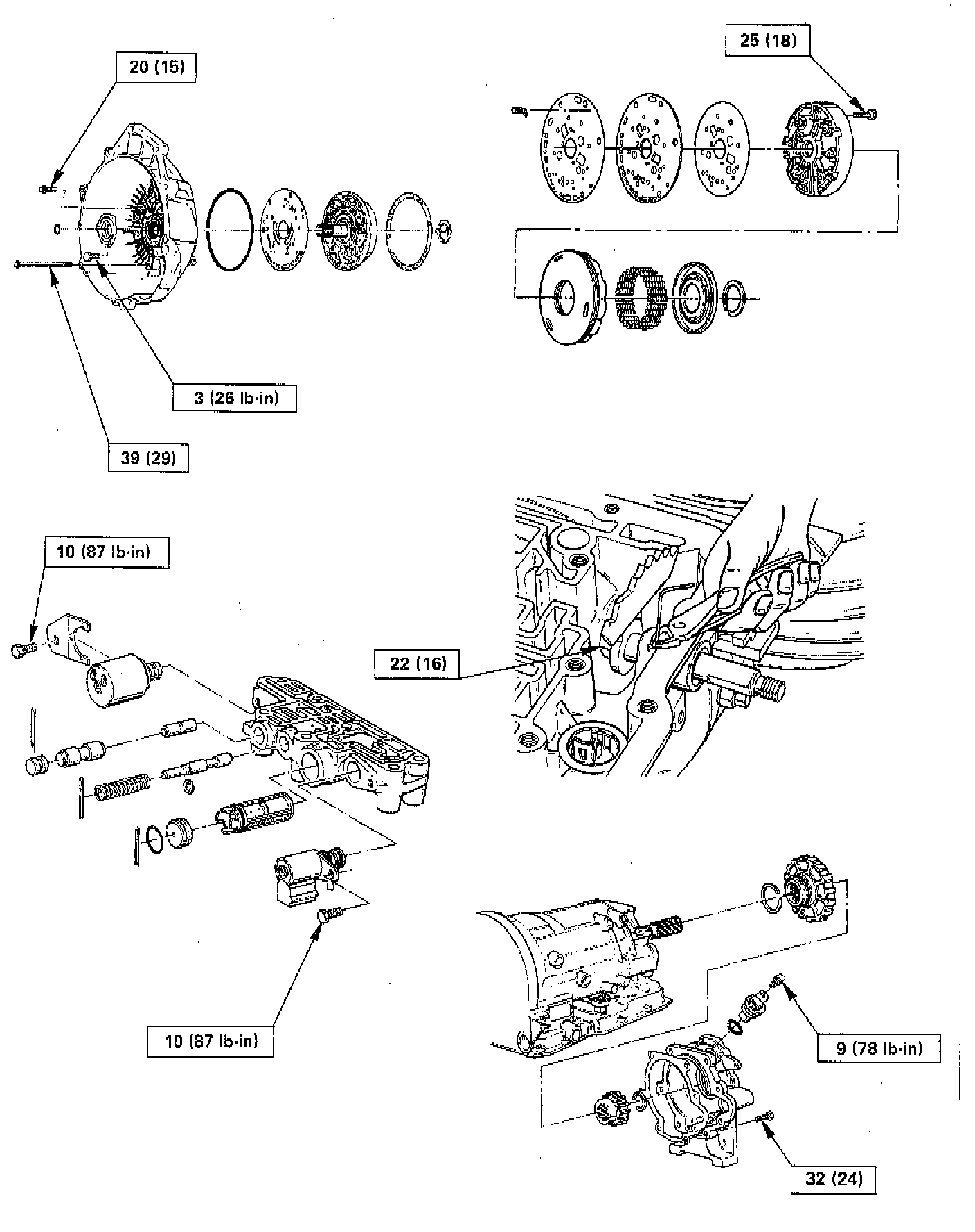

Captions Are Nm (ft. Lbs.) Part 2 Of 3:

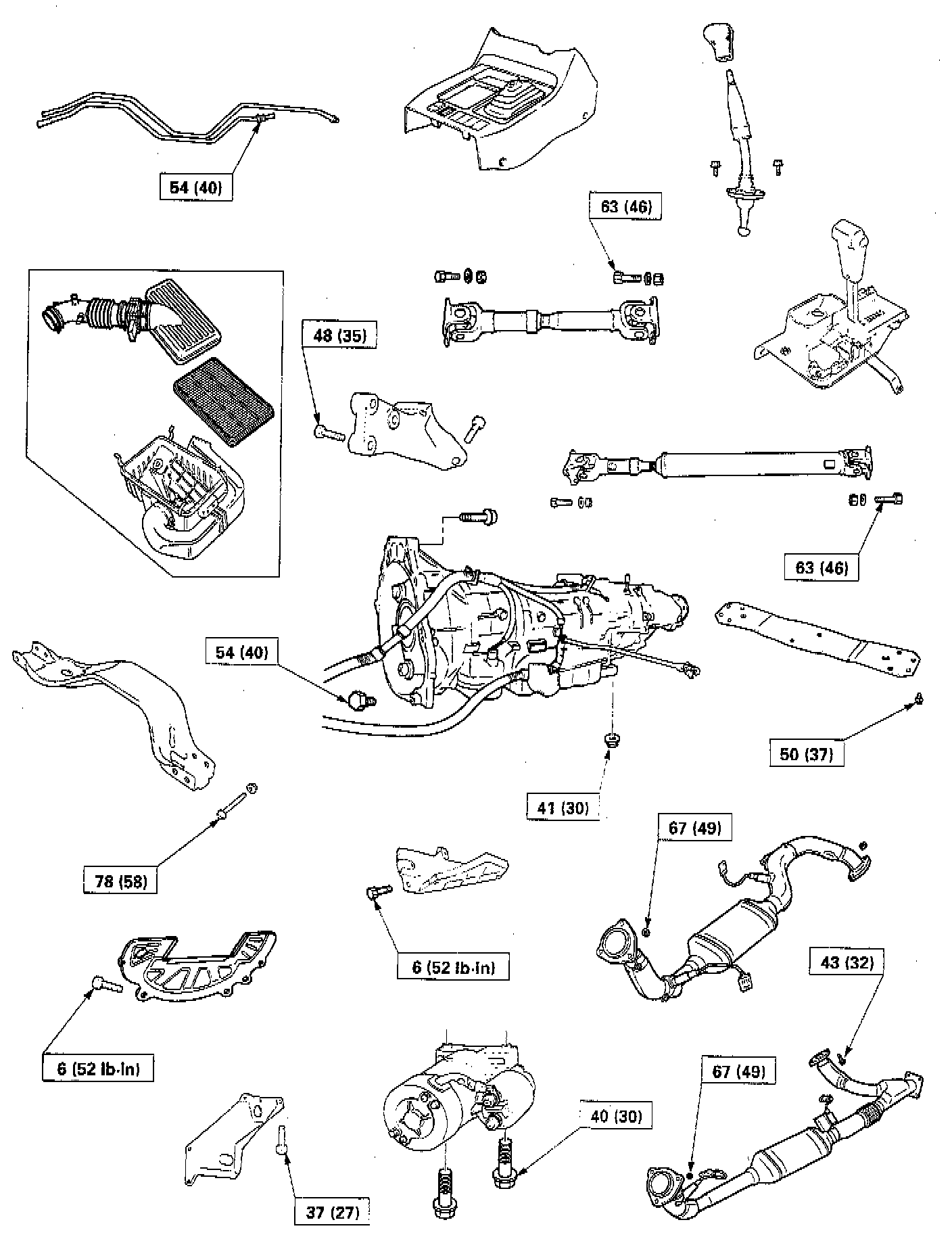

Captions Are Nm (ft. Lbs.) Part 3 Of 3:
