Electrical Diagrams

Dash, Console, Ashtray, And Vanity Mirror Lights (Part 1 Of 5):

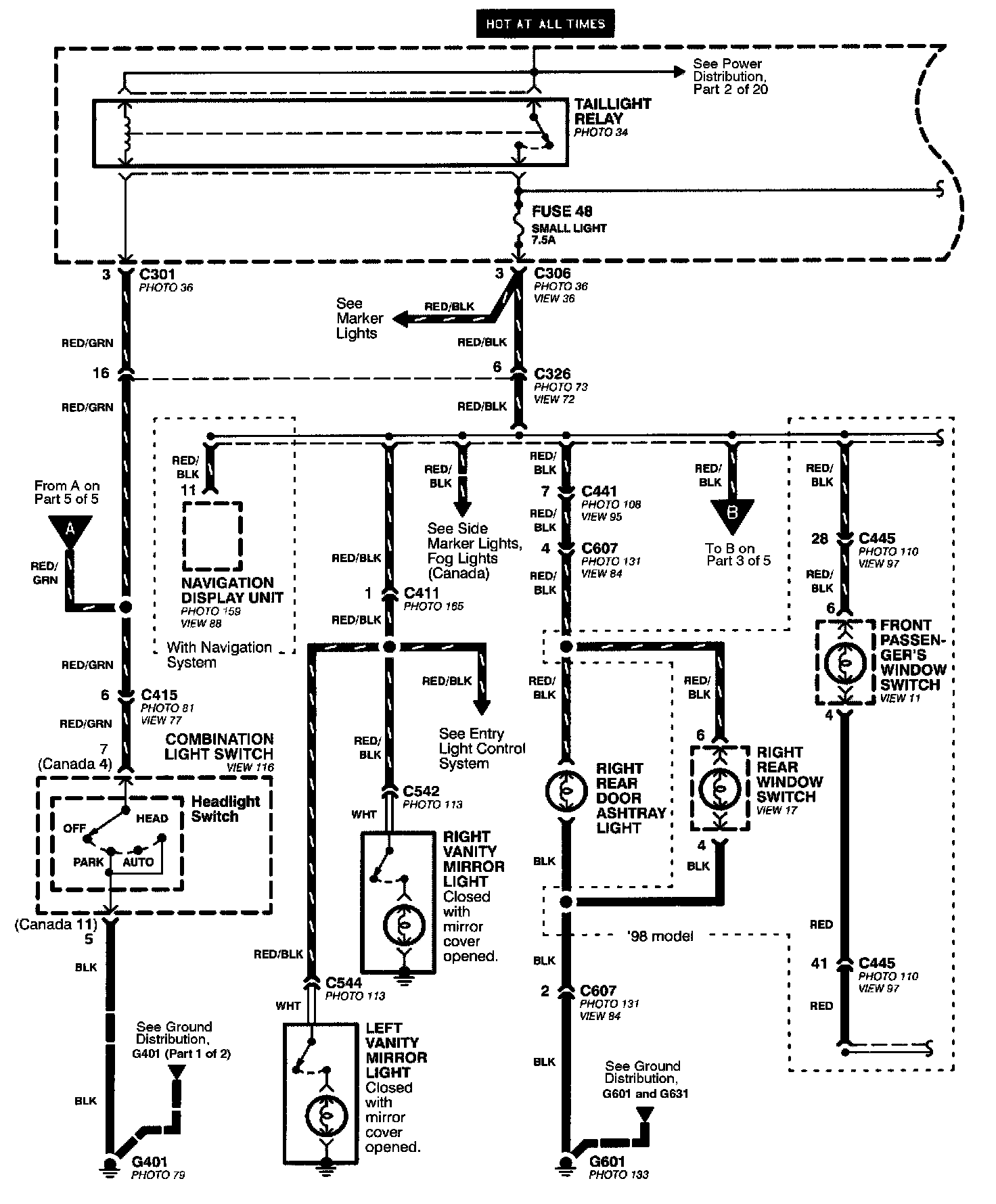

Dash, Console, Ashtray And Vanity Mirror Lights (Part 1 Of 5)
Combination Light Switch
Front Passenger's Window Switch
Left Vanity Mirror Light
Navigation Display Unit
Right Rear Door Ashtray Light
Right Rear Window Switch
Right Vanity Mirror Light
Taillight Relay

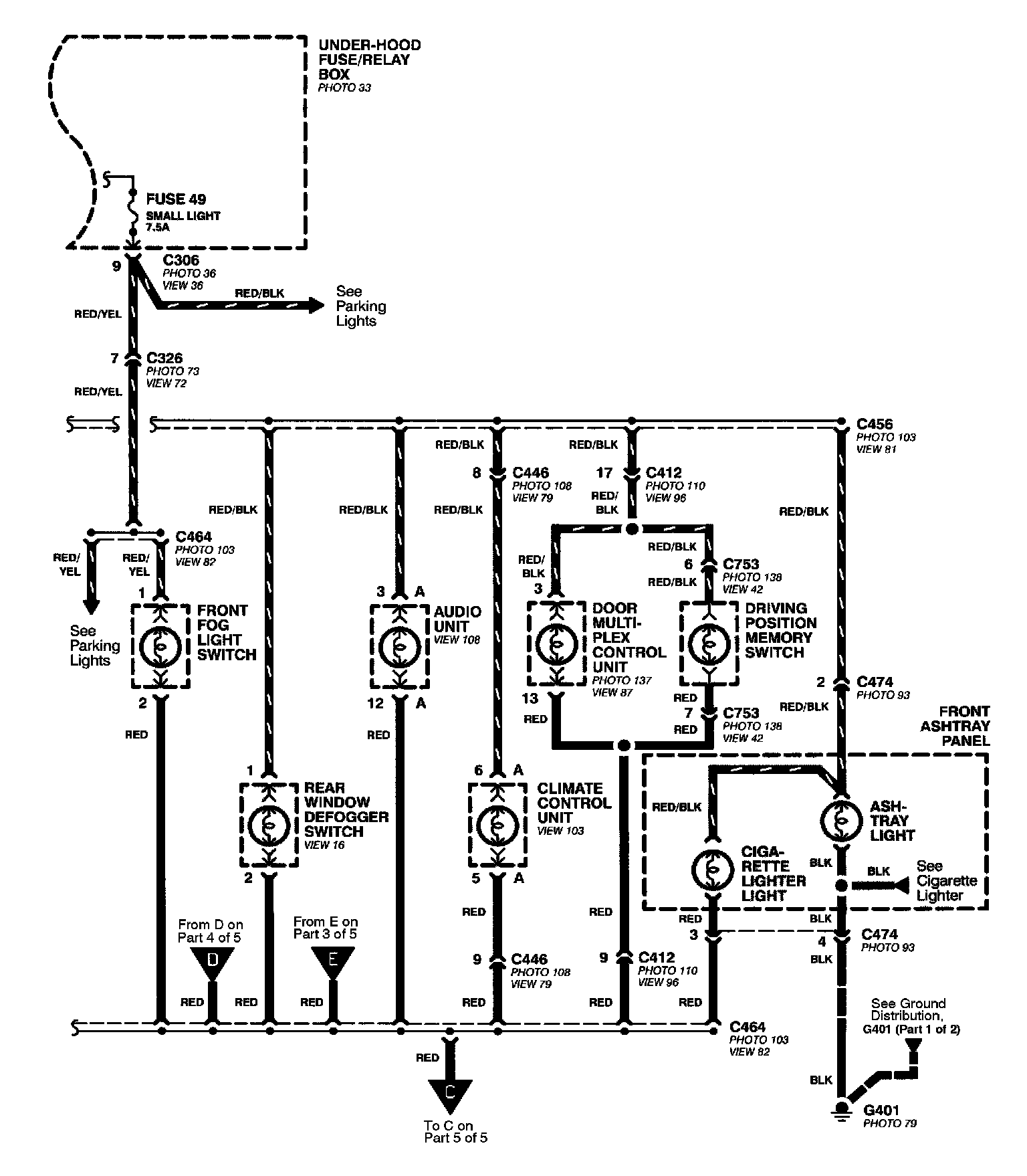

Dash, Console, Ashtray, And Vanity Mirror Lights (Part 2 Of 5):

Dash, Console, Ashtray And Vanity Mirror Lights (Part 2 Of 5)
Audio Unit
Climate Control Unit
Door Multiplex Control Unit
Driving Position Memory Switch
Front Ashtray Panel
Front Fog Light Switch
Rear Window Defogger Switch
Under-Hood Fuse/Relay Box

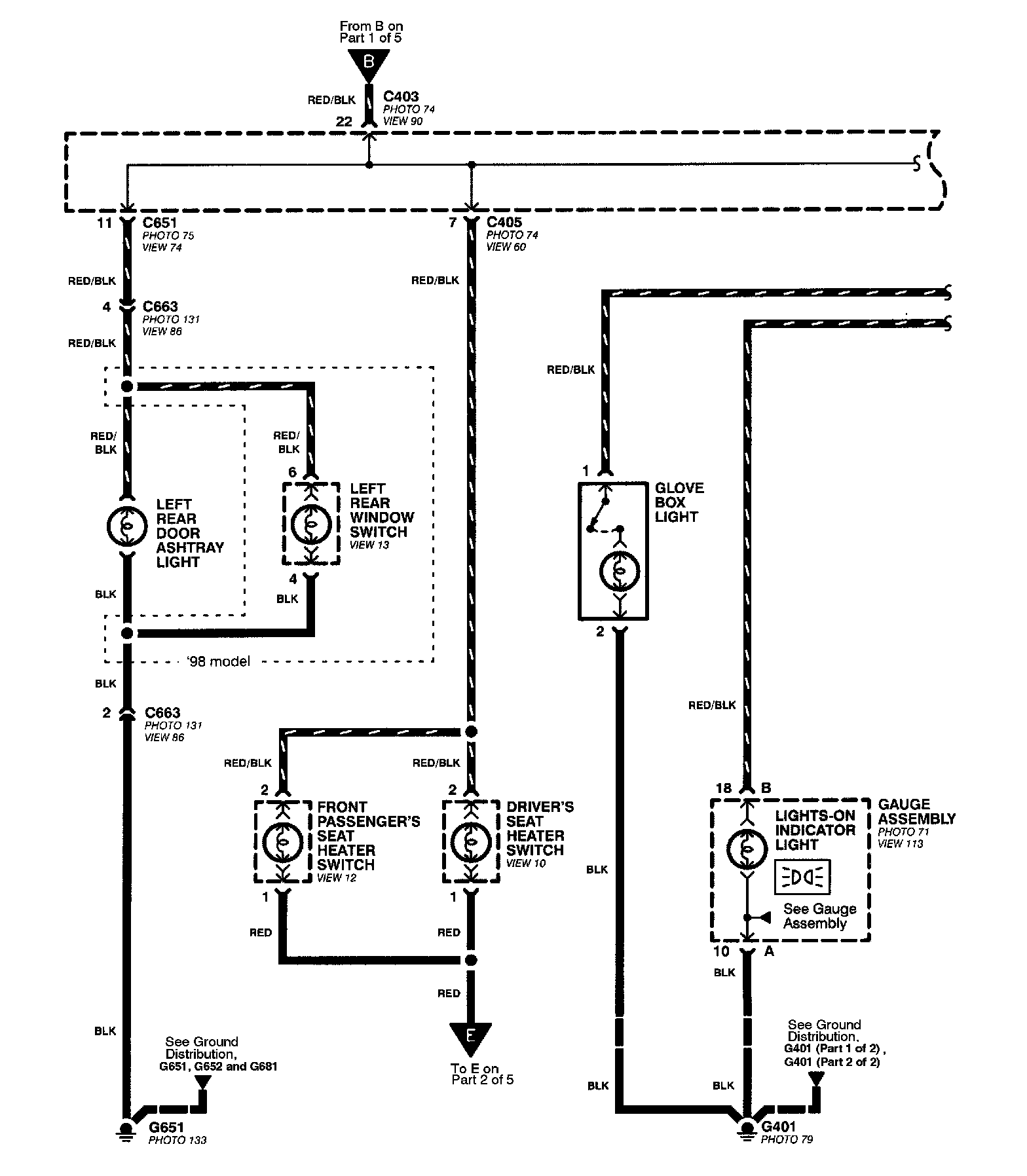

Dash, Console, Ashtray, And Vanity Mirror Lights (Part 3 Of 5):

Dash, Console, Ashtray And Vanity Mirror Lights (Part 3 Of 5)
Driver's Seat Heater Switch
Front Passenger's Seat Heater Switch
Gauge Assembly
- Lights-On Indicator Light
Glove Box Light
Left Rear Window Switch

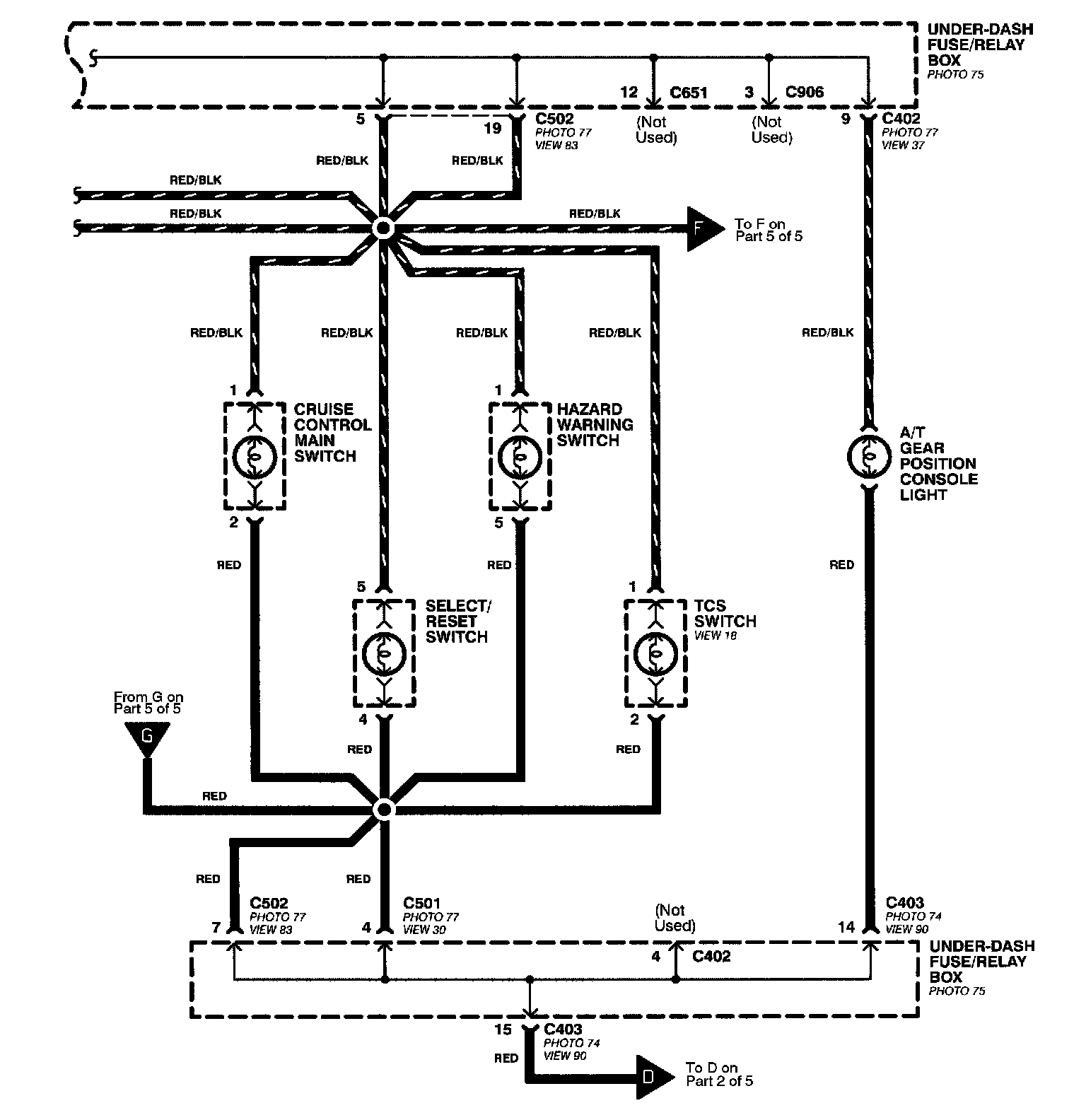

Dash, Console, Ashtray, And Vanity Mirror Lights (Part 4 Of 5):

Dash, Console, Ashtray And Vanity Mirror Lights (Part 4 Of 5)
Cruise Control Main Switch
Hazard Warning Switch
Select/Reset Switch
TCS Switch
Under-Dash Fuse/Relay Box

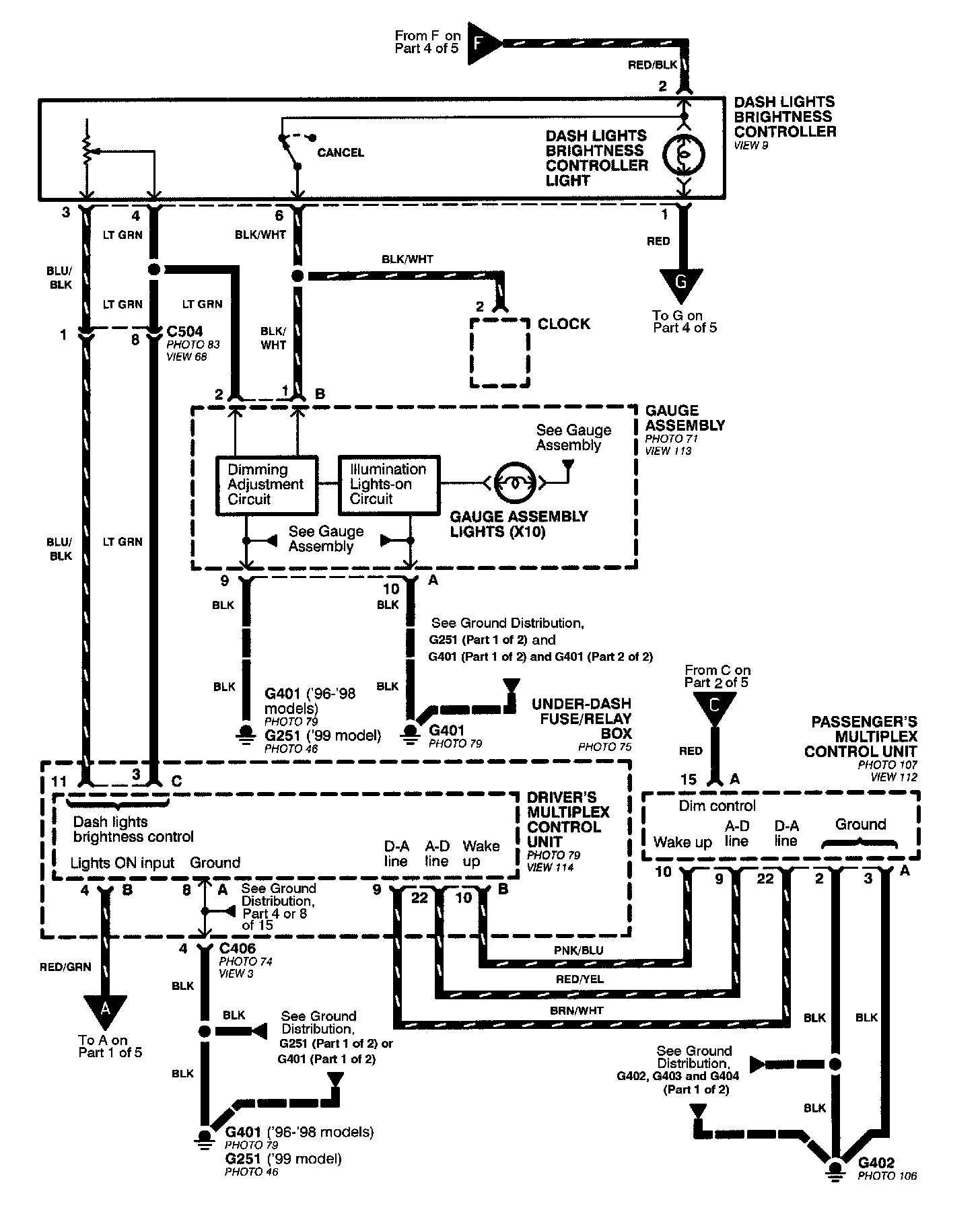

Dash, Console, Ashtray Lights (Part 5 Of 5):

Dash, Console, Ashtray And Vanity Mirror Lights (Part 5 Of 5)
Dash Lights Brightness Controller
Gauge Assembly
Passenger's Multiplex Control Unit
Under-Dash Fuse/Relay Box
- Driver's Multiplex Control Unit
