Cruise Control: Testing and Inspection
Troubleshooting:
NOTE: ^

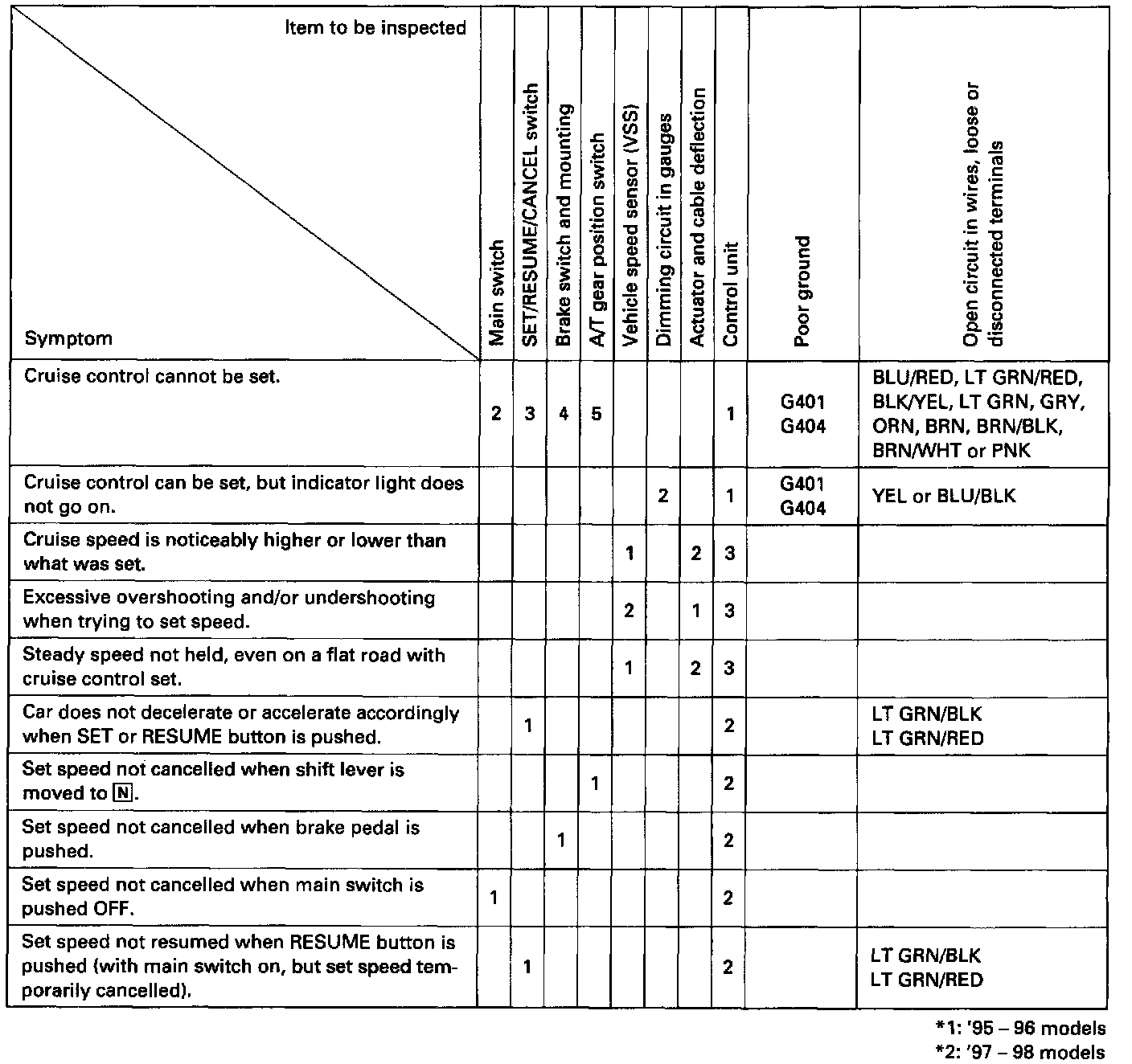

The numbers in the table show the troubleshooting sequence.
^
Before troubleshooting,
-
Check the No.1
(10 A) and the No.4
(15 A)*1 or
(20 A)*2 fuses in the under-dash fuse/relay box, and the No.30
(20 A) fuses in the under-hood fuse/relay box.
-
Check that the horns sound.
-
Check the tachometer to see if it works properly.
