Manifold Pressure/Vacuum Sensor: Testing and Inspection

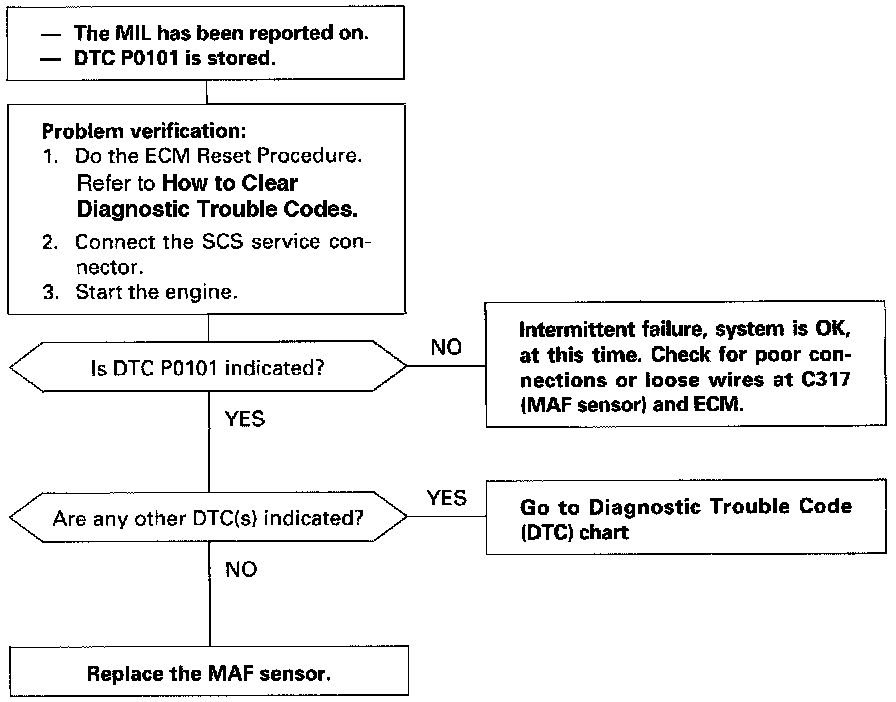

(_P0101_)
The scan tool indicates Diagnostic Trouble Code (DTC) P0101: range/performance problem in the Mass Air Flow (MAF) Sensor system.

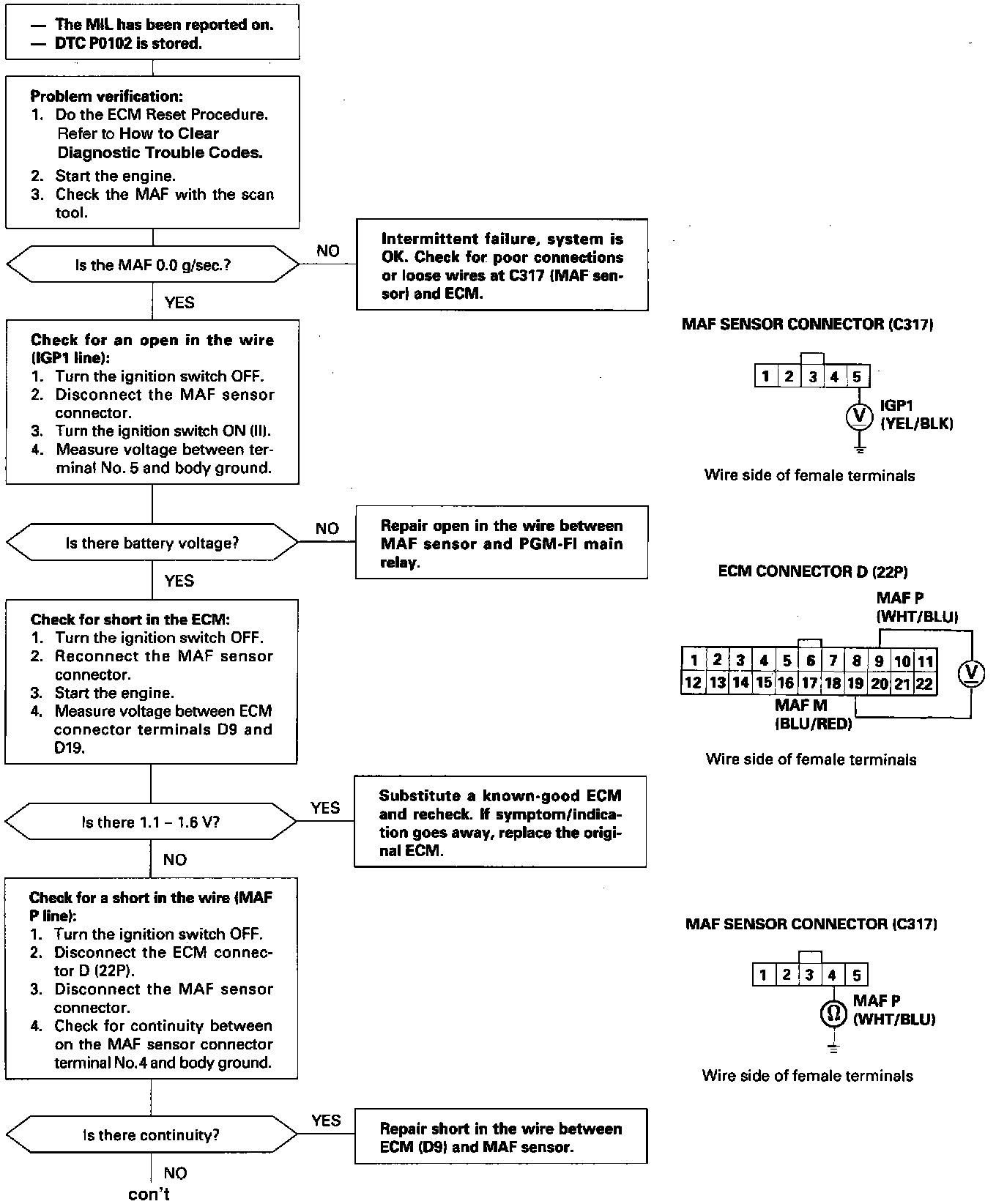

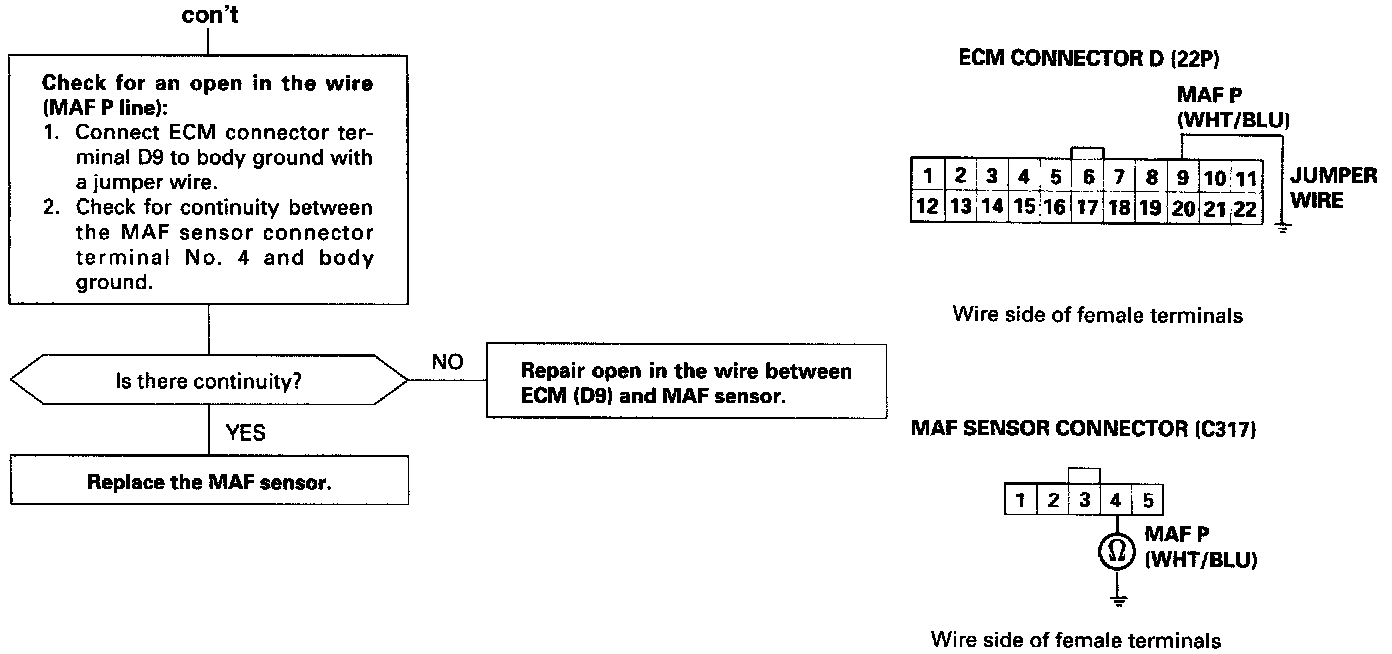

(_P0102_)
The scan tool indicates Diagnostic Trouble Code (DTC) PO1O2: A low voltage problem in the Mass Air Flow (MAF) Sensor circuit.

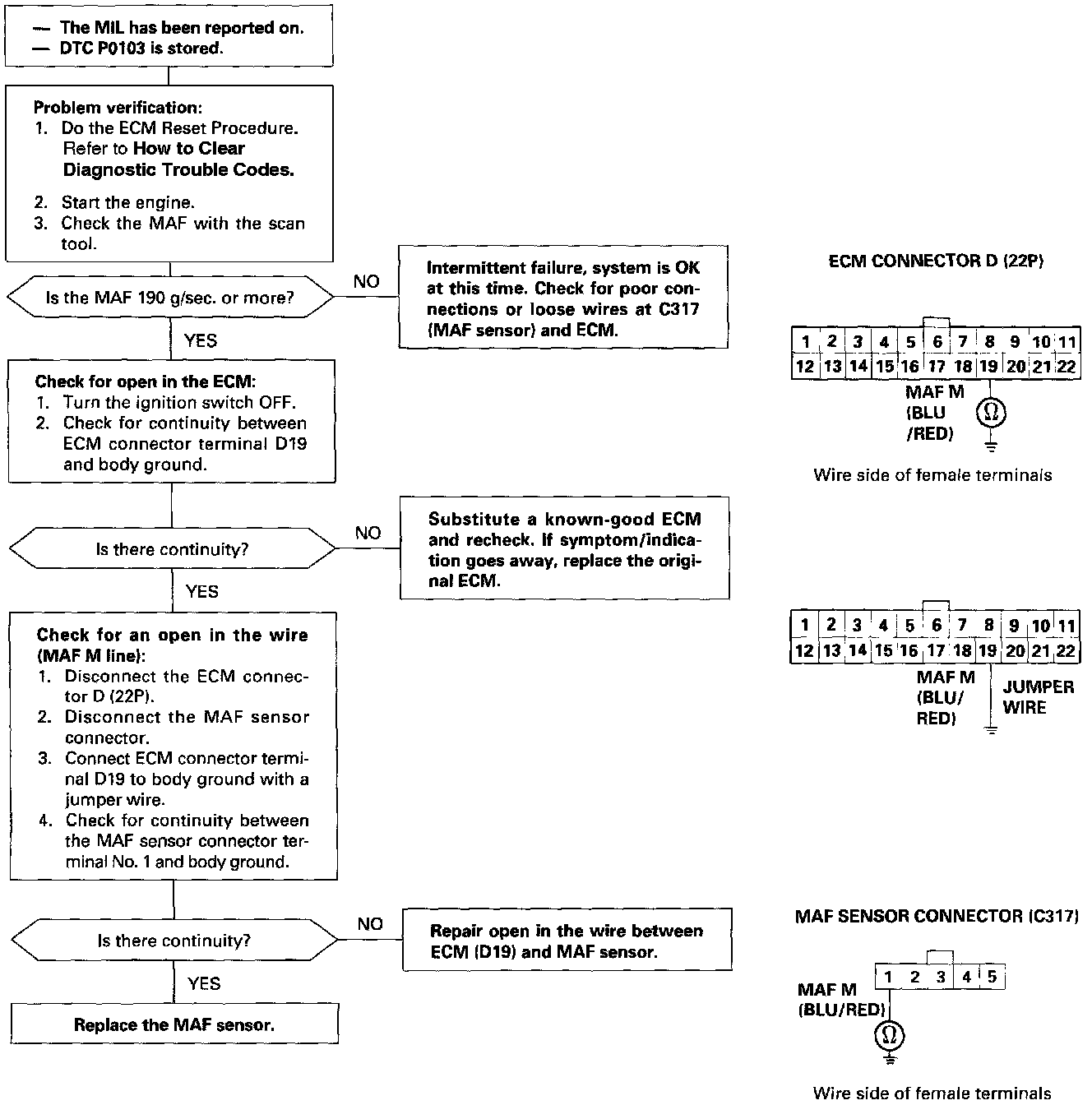

(_P0103_)
The scan tool indicates Diagnostic Trouble Code (DTC) PO1O3: A high voltage problem in the Mass Air Flow Sensor circuit.

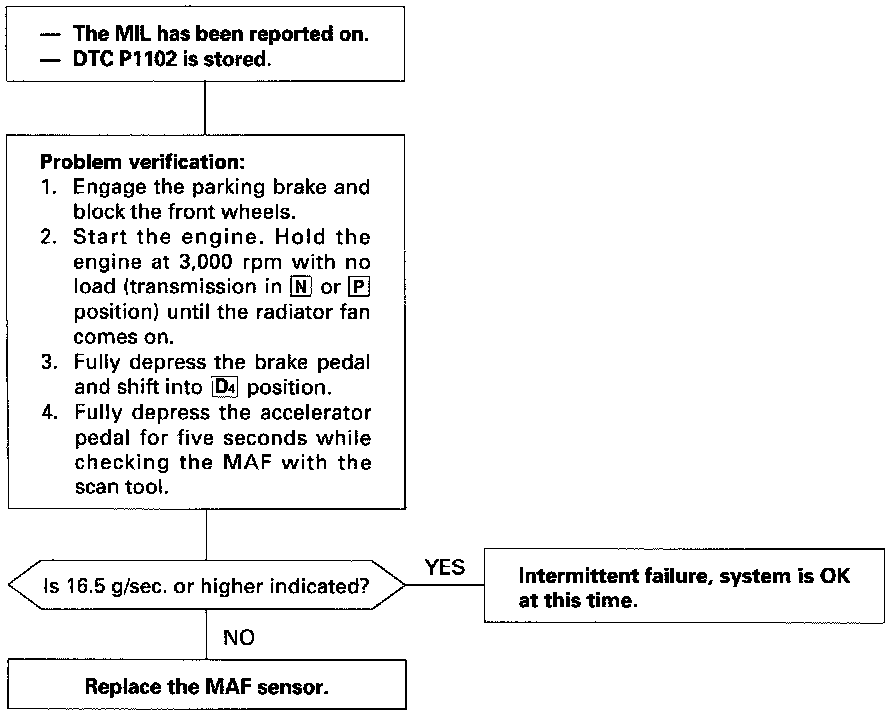

(_P1102_)
- The scan tool indicates Diagnostic Trouble Code (DTC) P1102: Mass Air Flow (MAF) lower than expected.

CAUTION:
- To prevent transmission damage, do not depress the accelerator pedal more than 10 seconds at a time.
- Do not shift the lever while raising the engine speed.

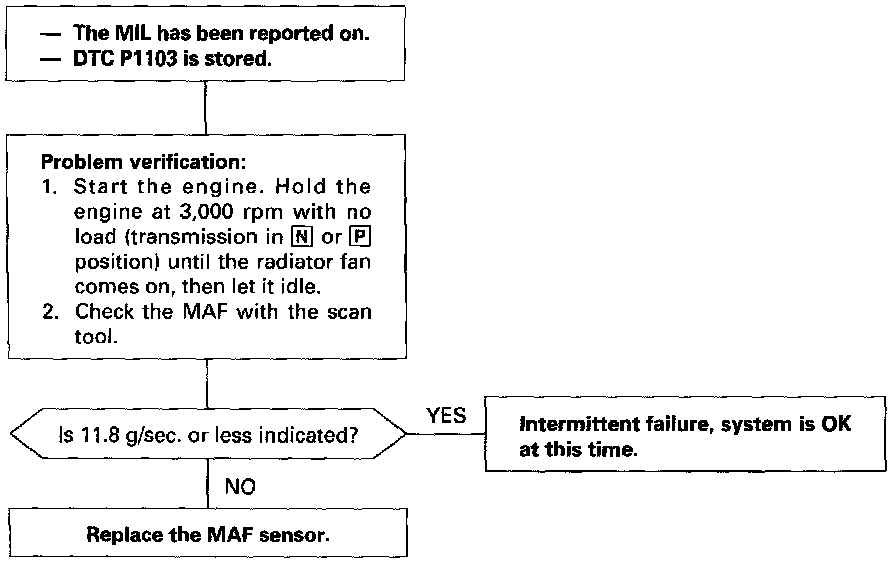

(_P1103_)
- The scan tool indicates Diagnostic Trouble Code (DTC) P1103: Mass Air Flow (MAF) higher than expected.
