Door Lock Switch Test
DOOR LOCK SWITCH / TEST

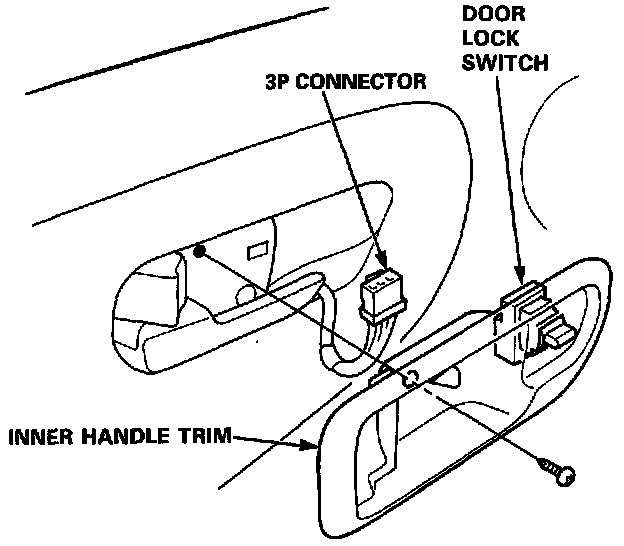

1. Remove the inner handle trim.
2. Disconnect the 3-P connector from the switch.

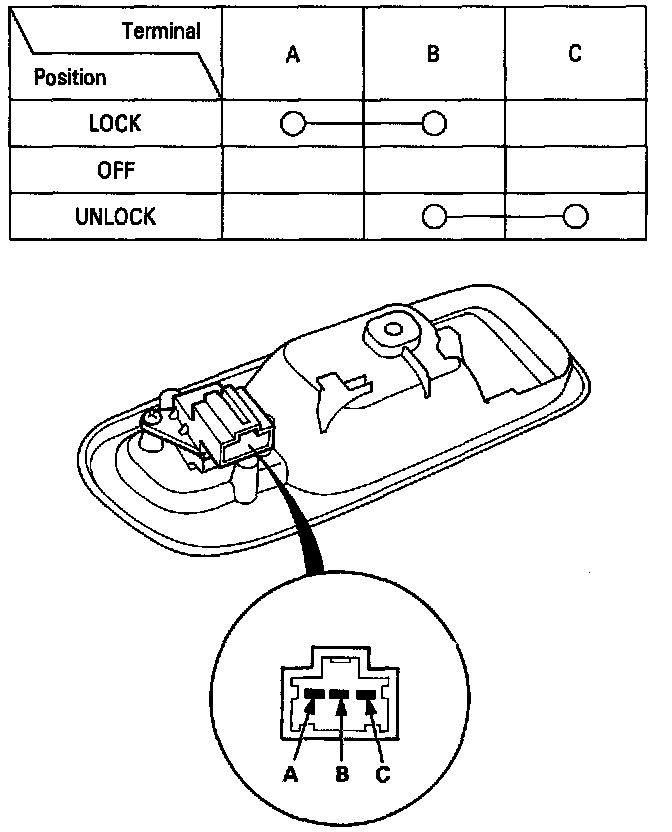

3. Check for continuity between the terminals in each switch position according to the table.
DOOR LOCK SWITCH / TEST
1. Remove the inner handle trim.
2. Disconnect the 3-P connector from the switch.
3. Check for continuity between the terminals in each switch position according to the table.
