Trunk / Liftgate Weatherstrip: Service and Repair

Hatch Weatherstrip/Trunk Lid Weatherstrip

Replacement

Hatch Weatherstrip:

NOTE:
- Before installing the hatch weatherstrip, apply clear sealant in its channel at the locations.
- After applying the sealant, install the hatch weatherstrip.

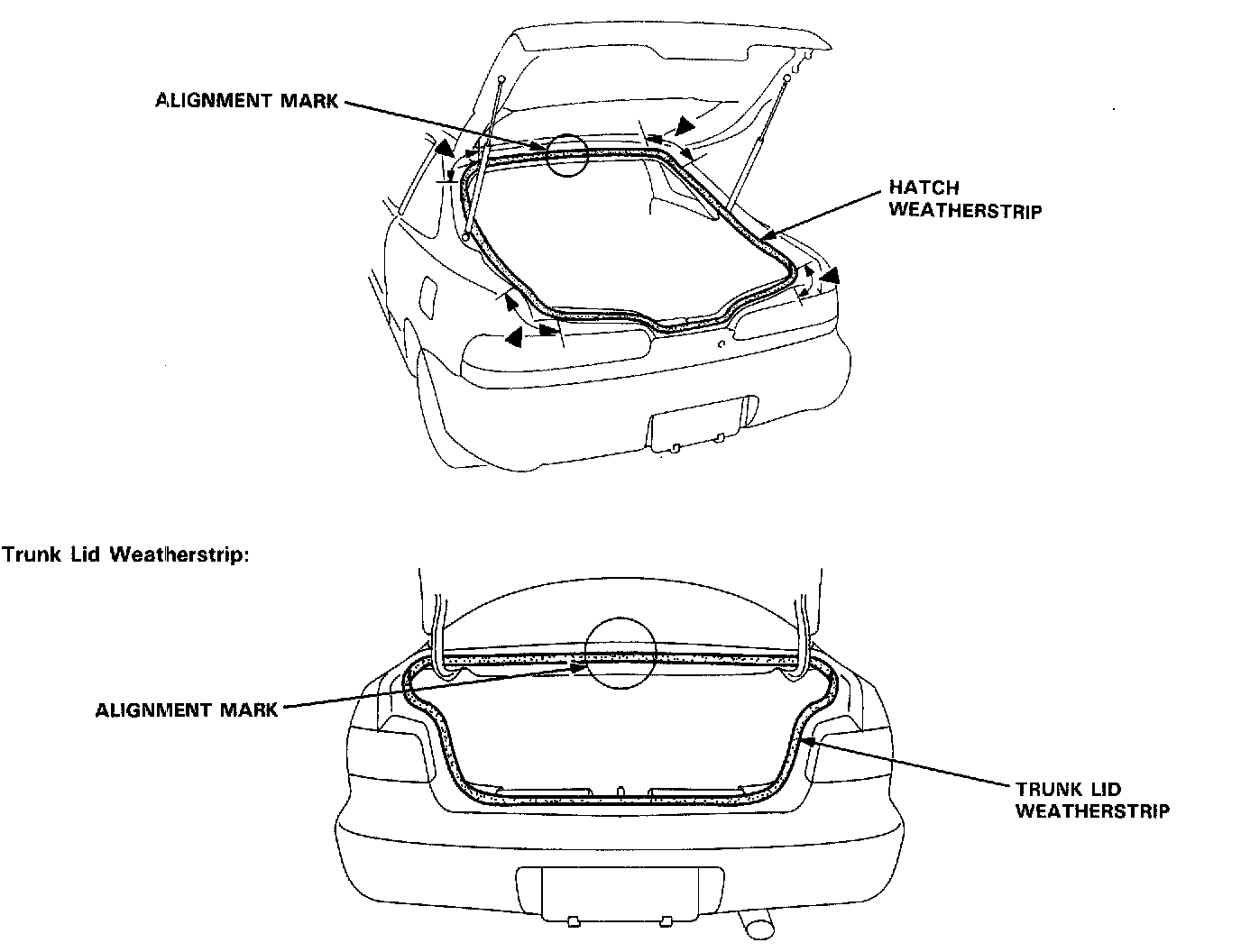

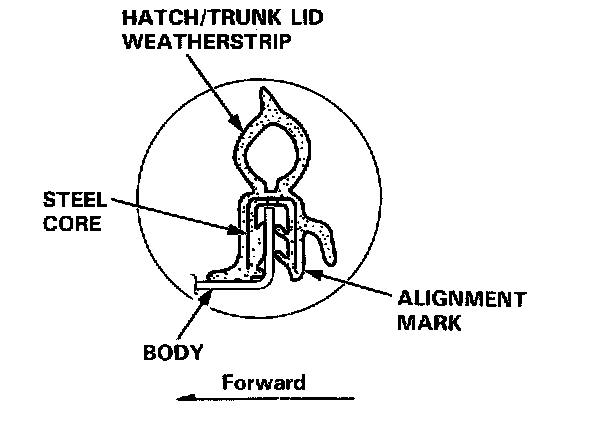

When installing the hatch or trunk lid weatherstrip, align it with the alignment mark on the hatch or trunk lid opening.

NOTE:
- Make sure there are no wrinkles in the weatherstrip.
- Check for water leaks.
