Programmed Fuel Injection System (PGM-FI)

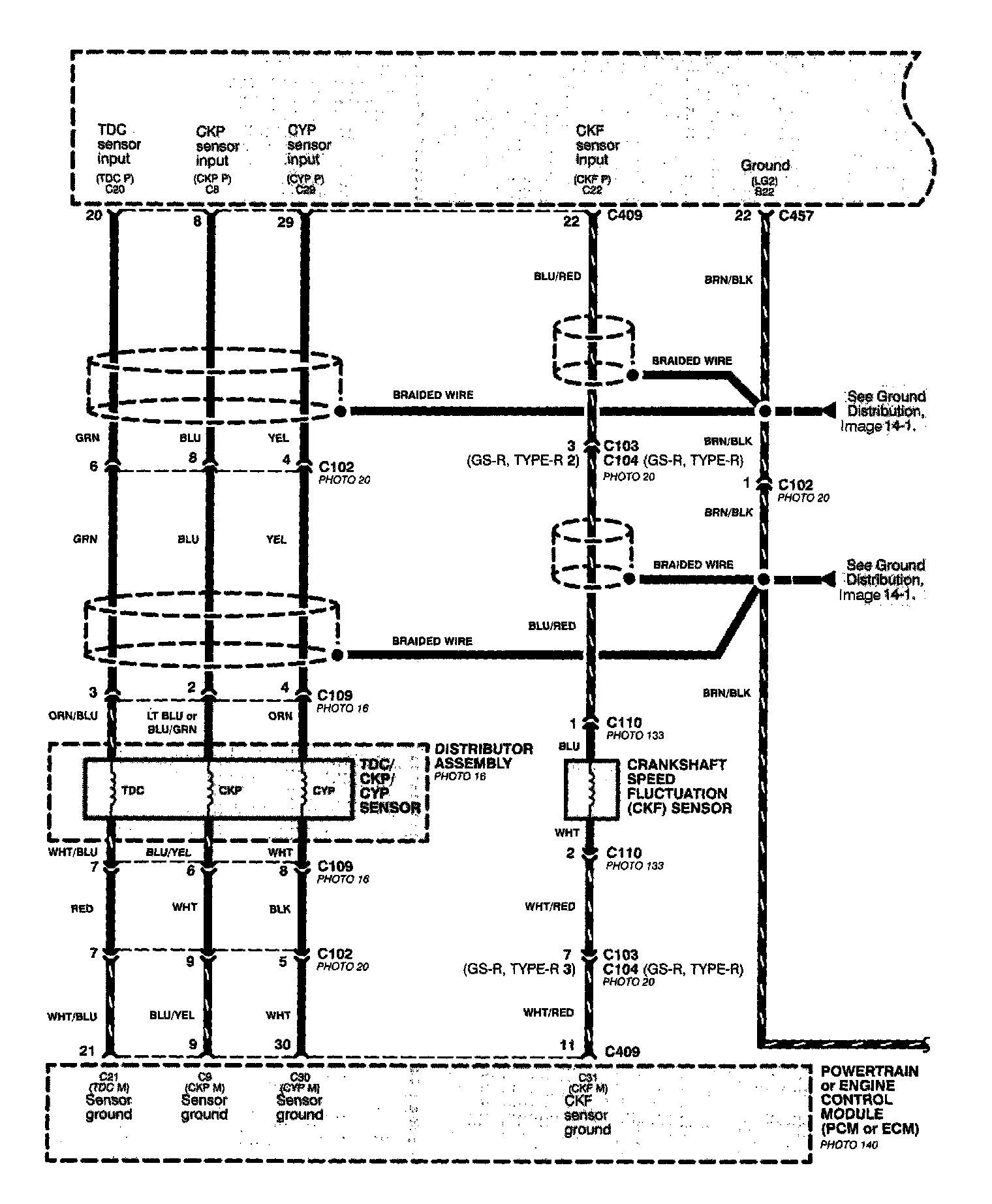

PGM-FI Image 24:

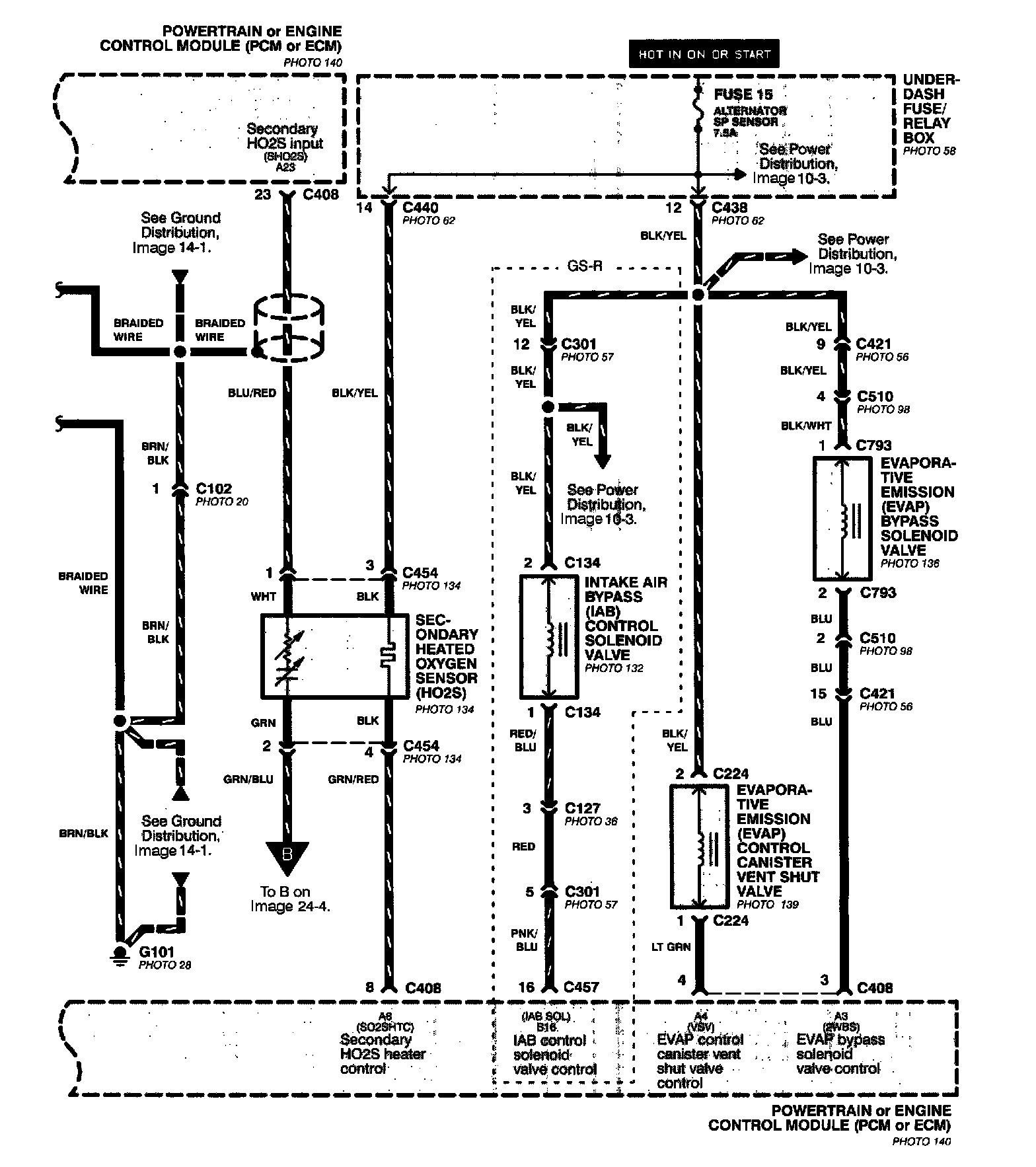

PGM-FI Image 24-1:

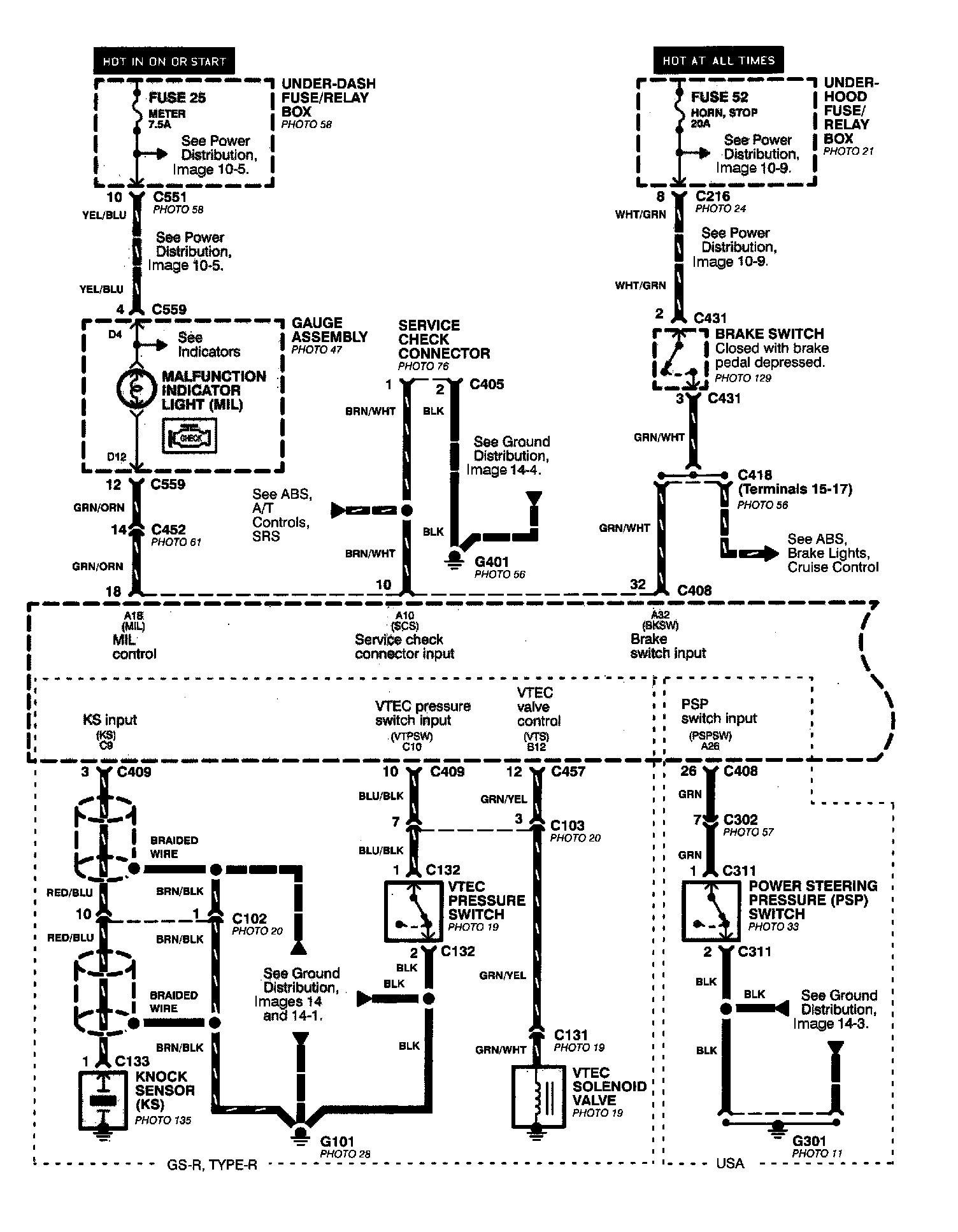

PGM-FI Image 24-2:

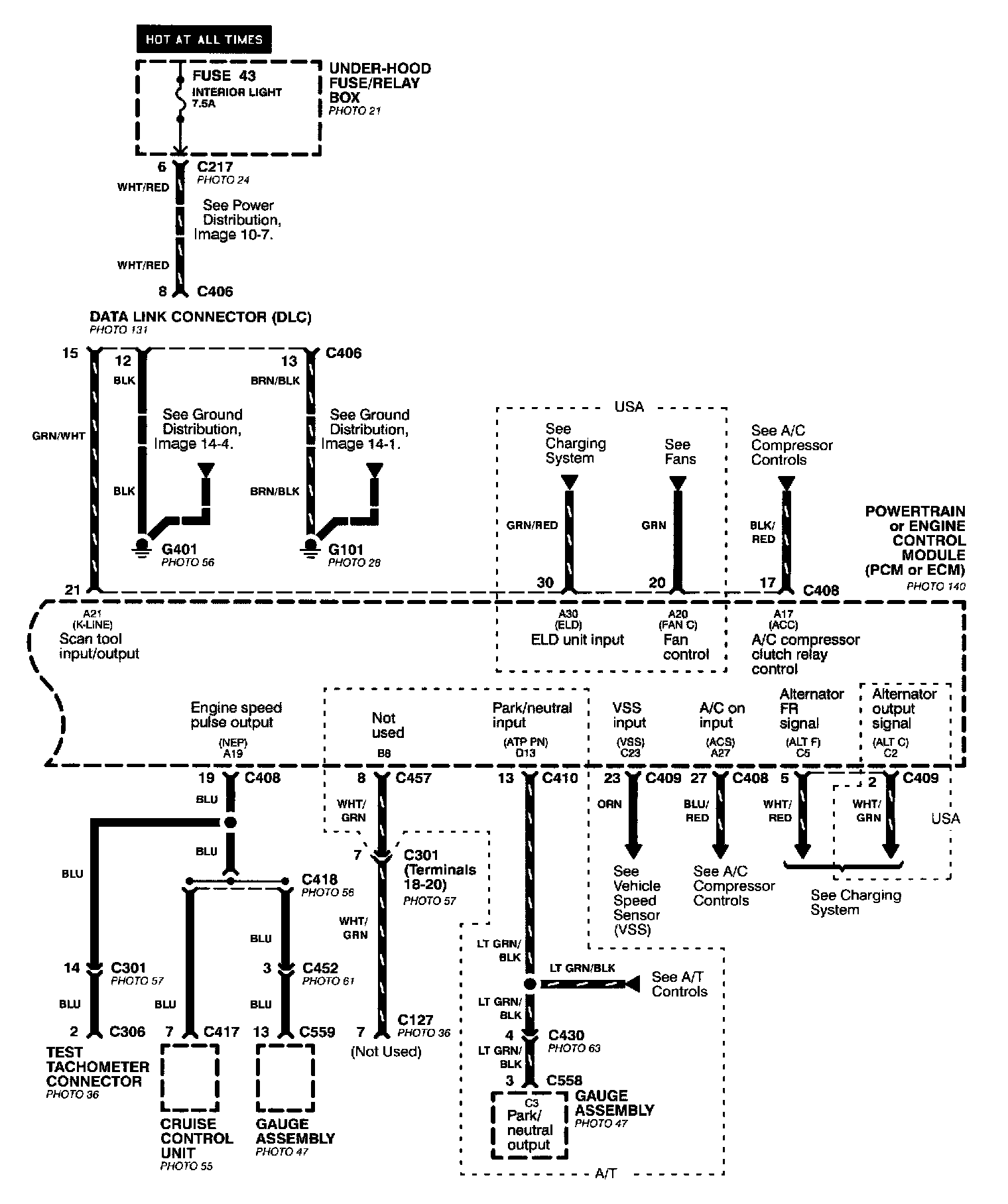

PGM-FI Image 24-3:

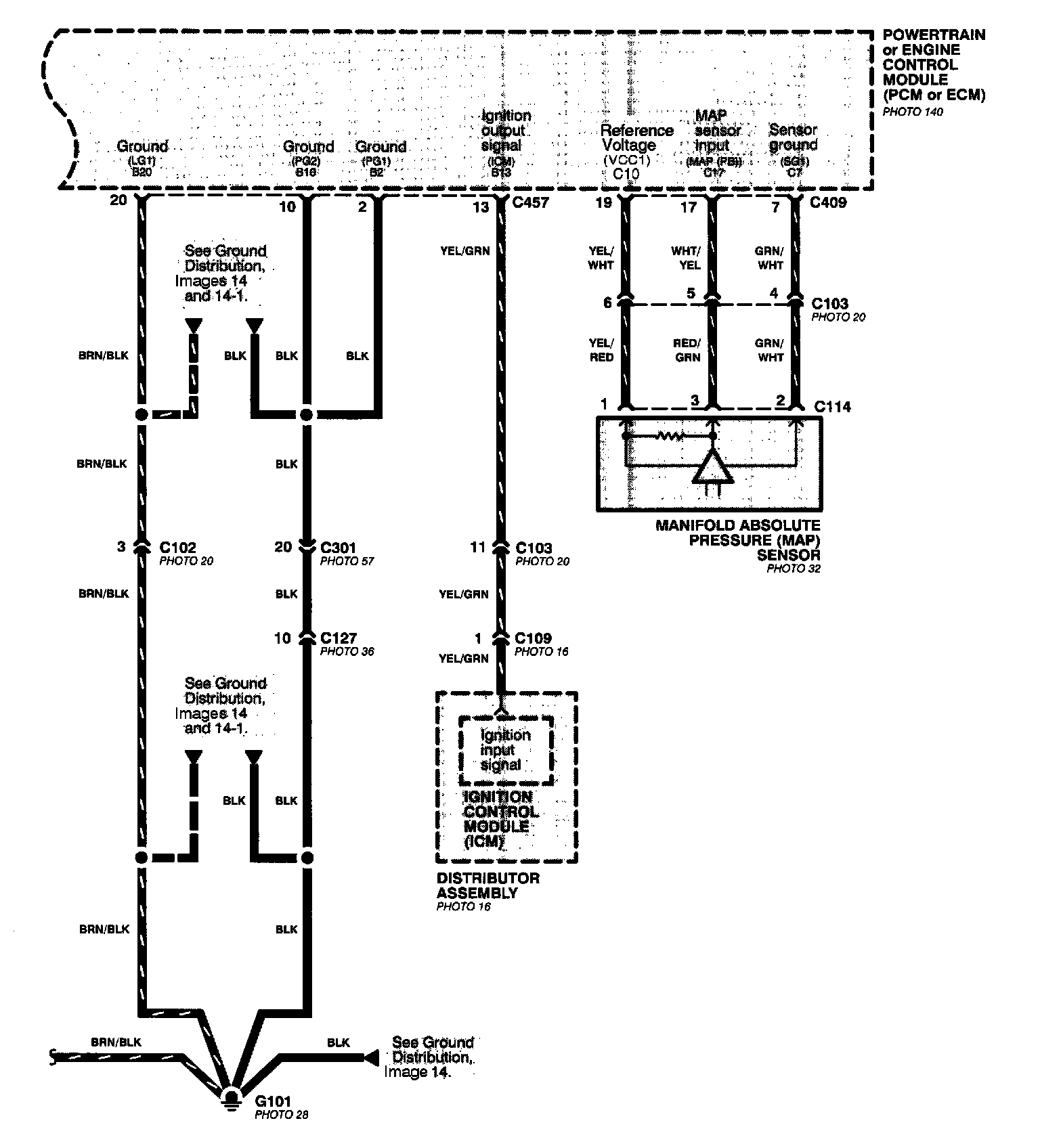

PGM-FI Image 24-4:

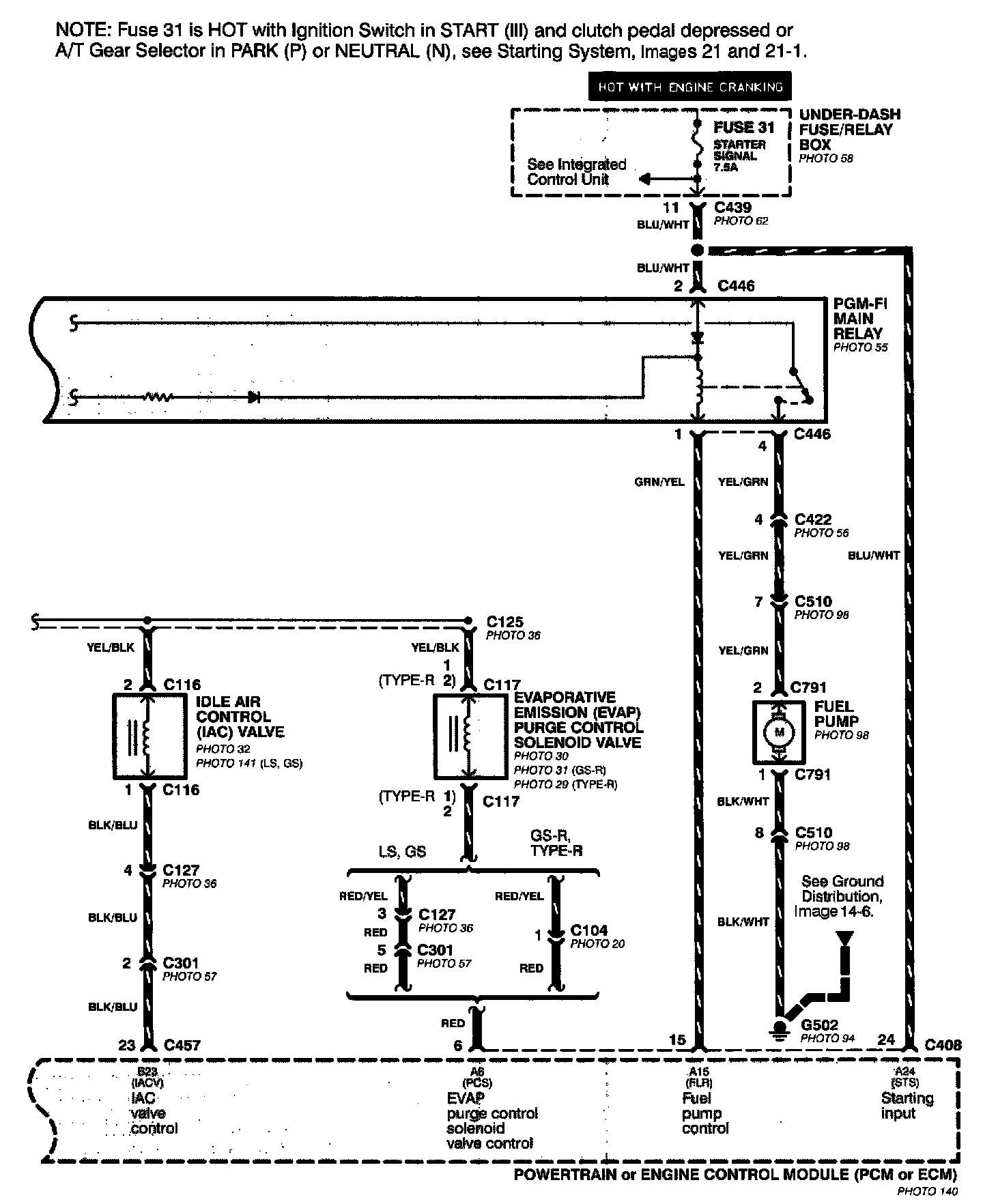

PGM-FI Image 24-5:

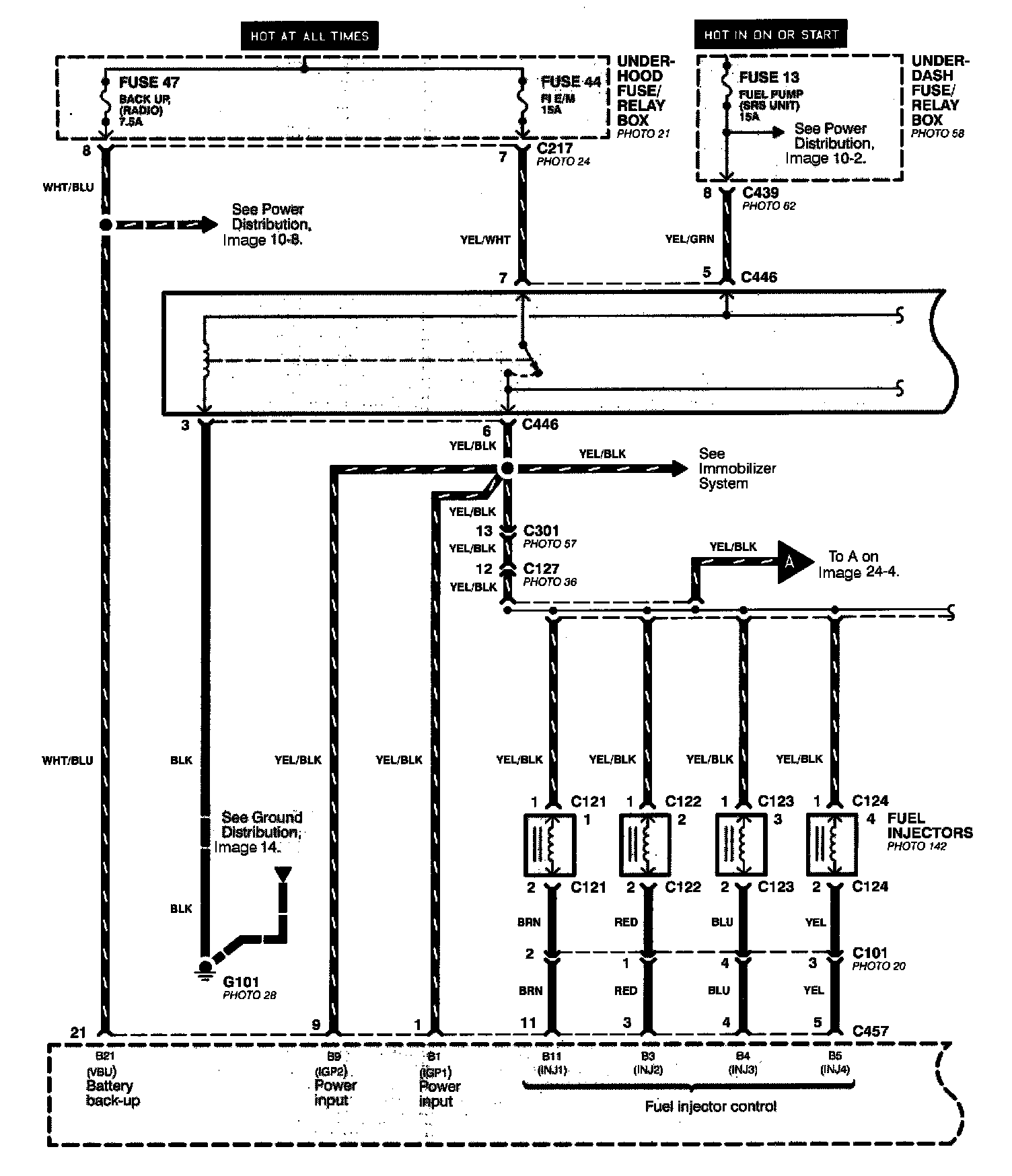

PGM-FI Image 24-6:

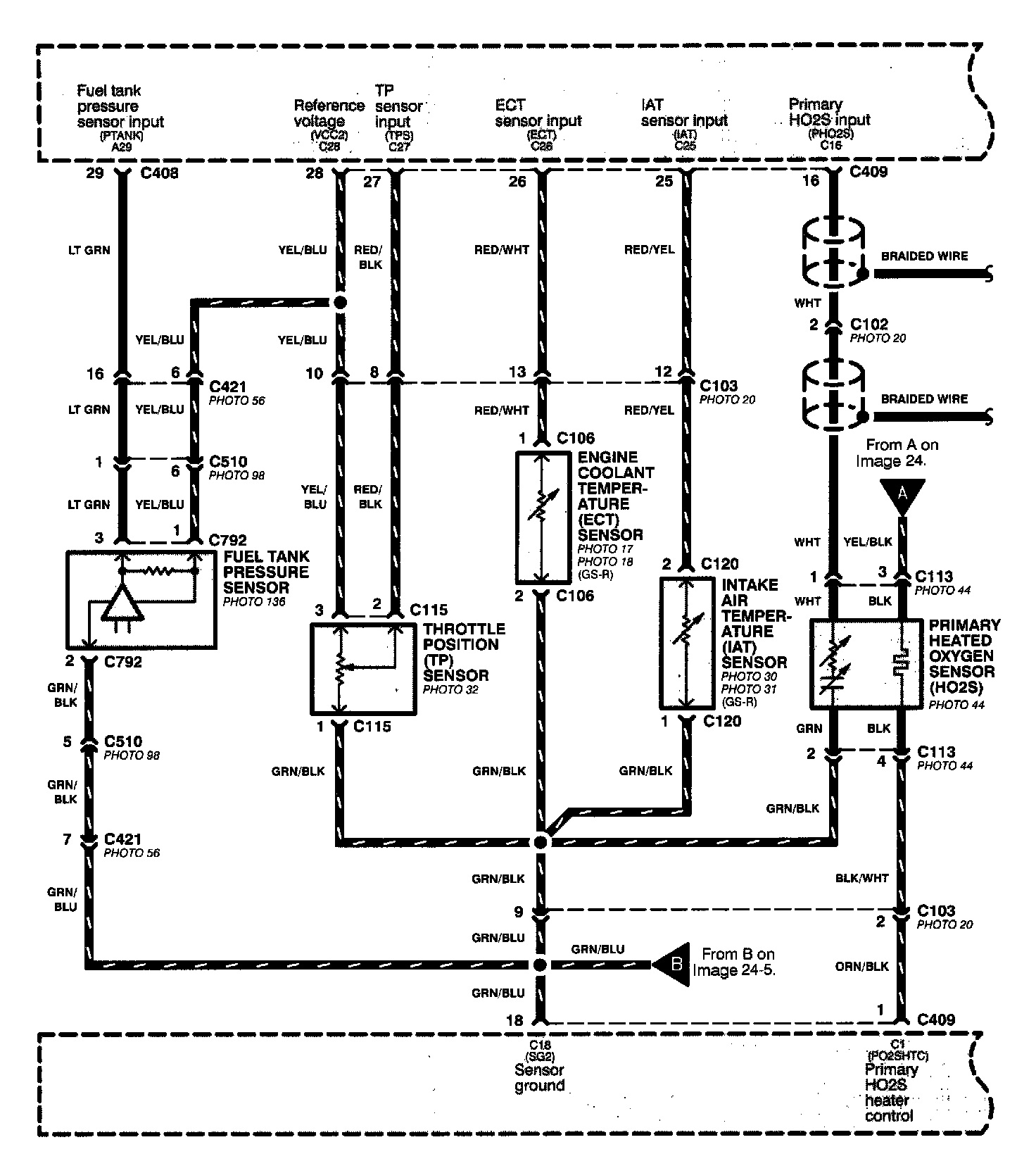

PGM-FI Image 24-7:
