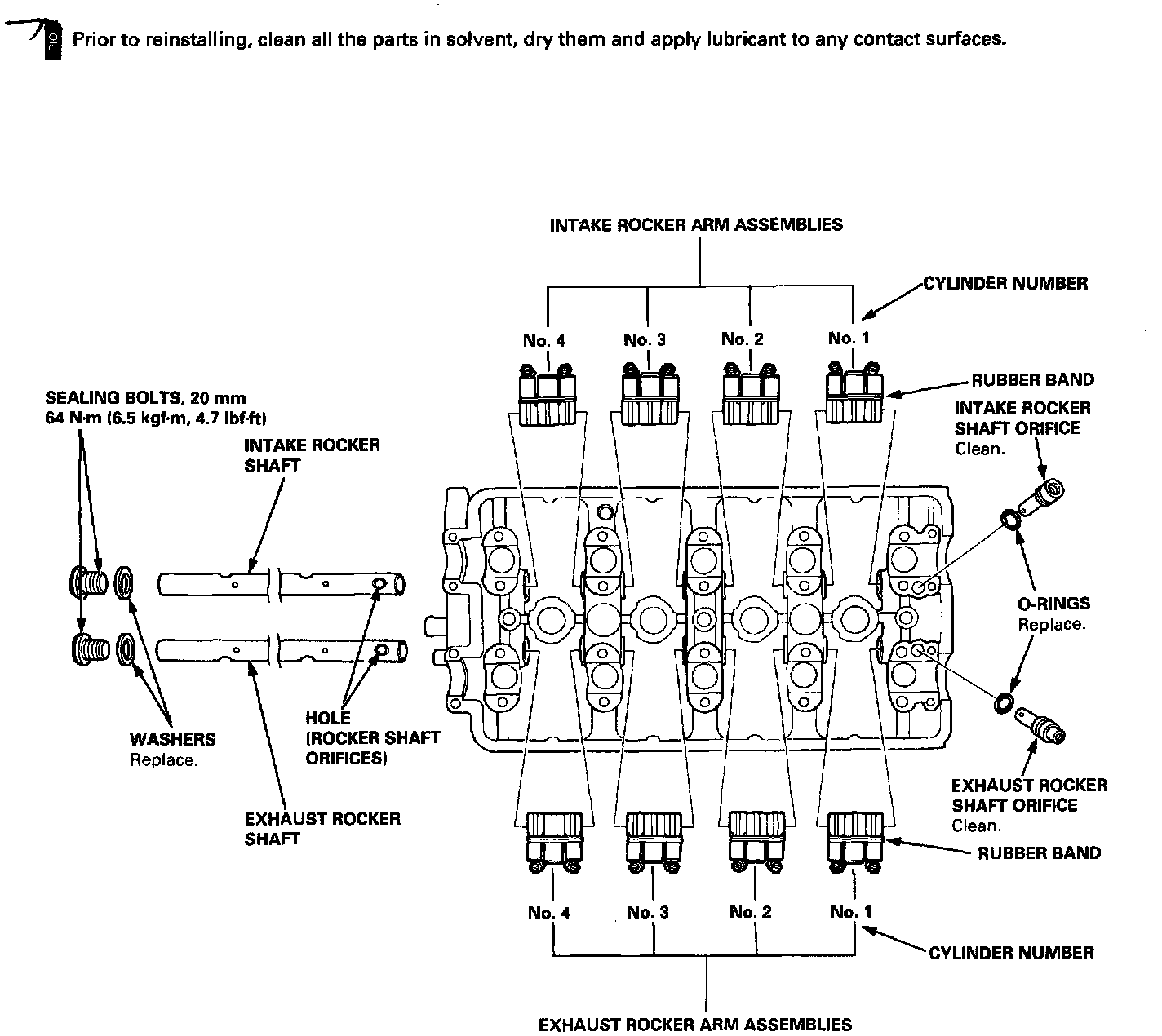

Disassembly/Reassembly

CAUTION: After installing the rocker shaft orifice, try to turn the rocker shaft to make sure that the orifice is correctly inserted in the hole of the rocker shaft. If the orifice is in place, it should not turn.

NOTE:
- Identify parts as they are removed to ensure reinstallation in original locations.
- Inspect rocker shahs and rocker arms.
- Rocker arms must be installed in the same position if reused.
- Clean the rocker shah orifices when installing.

OIL: Prior to reinstalling, clean all the parts in solvent, dry them and apply lubricant to any contact surfaces.
