Manual Transmission


COMPRESSOR BELT / REPLACEMENT
Manual Transmission

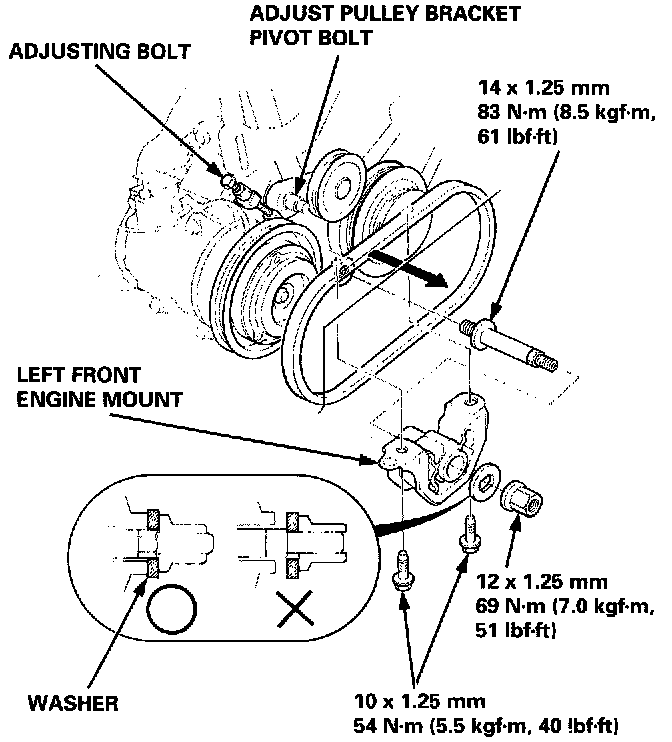

1. Loosen the adjust pulley bracket pivot bolt and the adjusting bolt, then remove the A/C compressor belt from the pulleys.







2. Remove the two mounting bolts from the left front engine mount.
Remove the engine mount nut, washer, bolt and the left front engine mount.
Remove the A/C compressor belt.
3. Install in the reverse order of removal, and adjust the A/C compressor belt.

NOTE: When tightening the engine mount nut, make sure the washer is set properly on the left front engine mount as shown.
