Component Locations

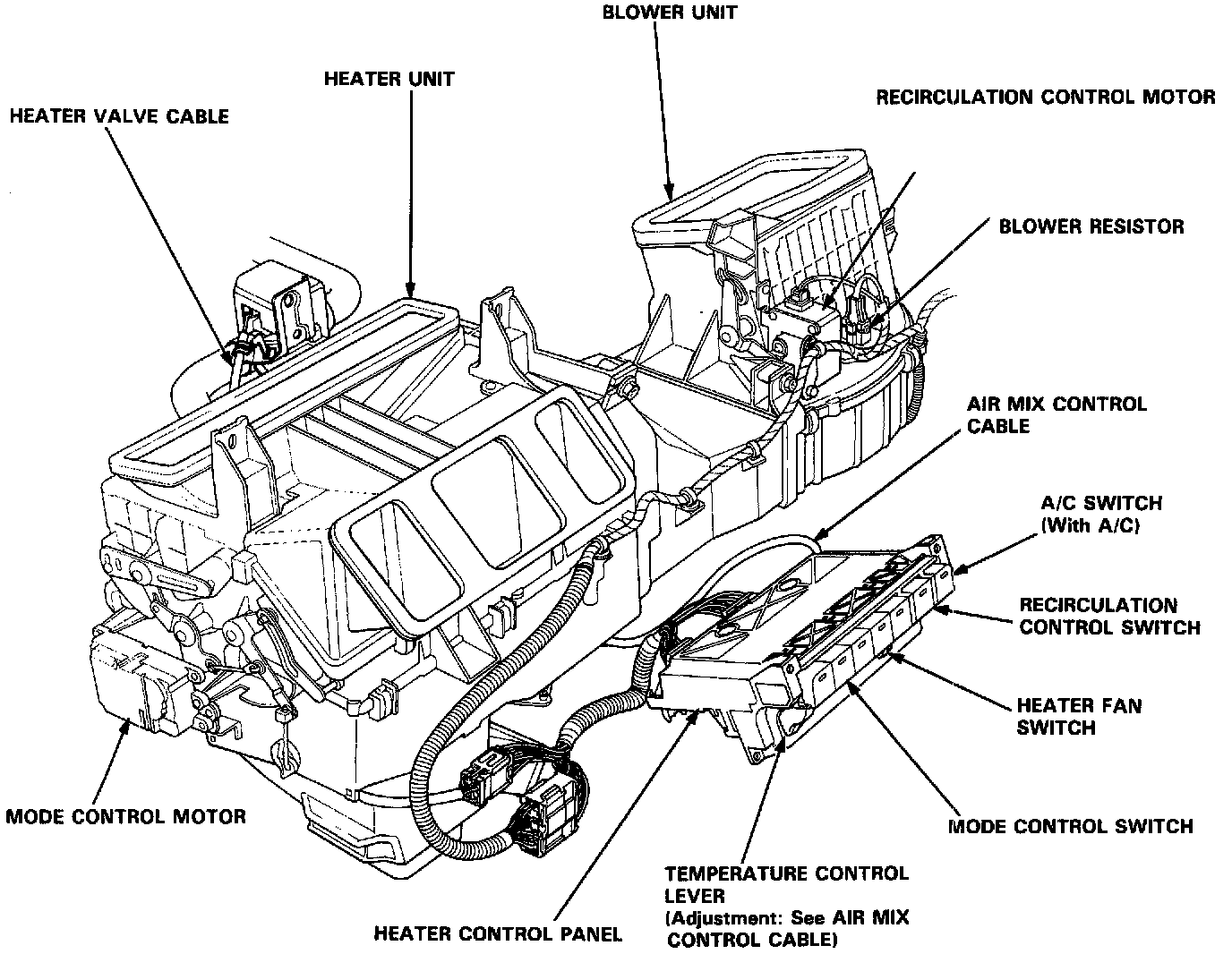

Heating and Air Conditioning SystemHeating System:

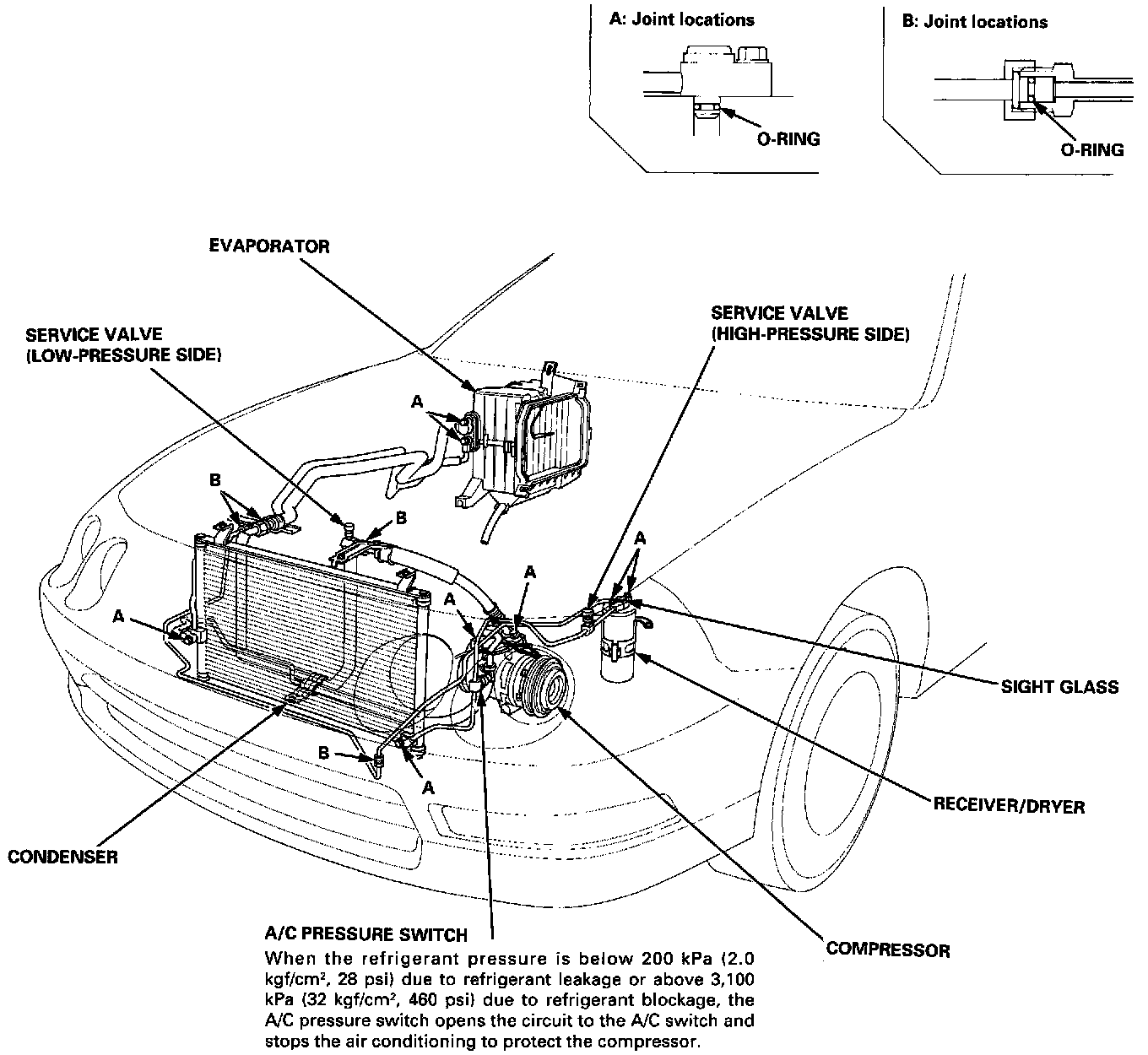

Air Conditioning System:
SRS components are located in this area. Review the SRS component locations, precautions, and procedures. Refer to AIR BAGS AND SEAT BELTS / SERVICE PRECAUTIONS.
Technician Safety Information
