Combination Switch: Testing and Inspection

COMBINATION LIGHT-TURN SIGNAL SWITCH / TEST







CAUTION:
All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.

Whenever the ignition switch is ON, or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.

For additional precautions, refer to SRS Service Precautions.

1. Remove the dashboard lower cover and steering column covers.

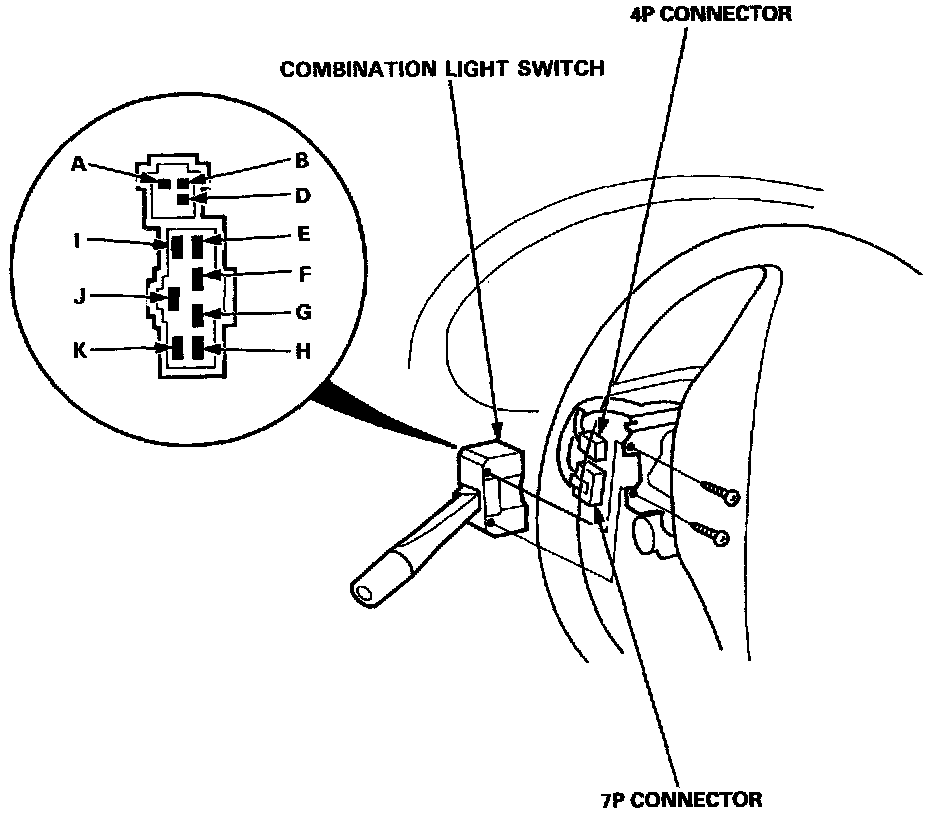

2. Disconnect the 4-P and 7-P connectors from the switch.
3. Check the connector and socket terminals to be sure they are all making good contact. If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.

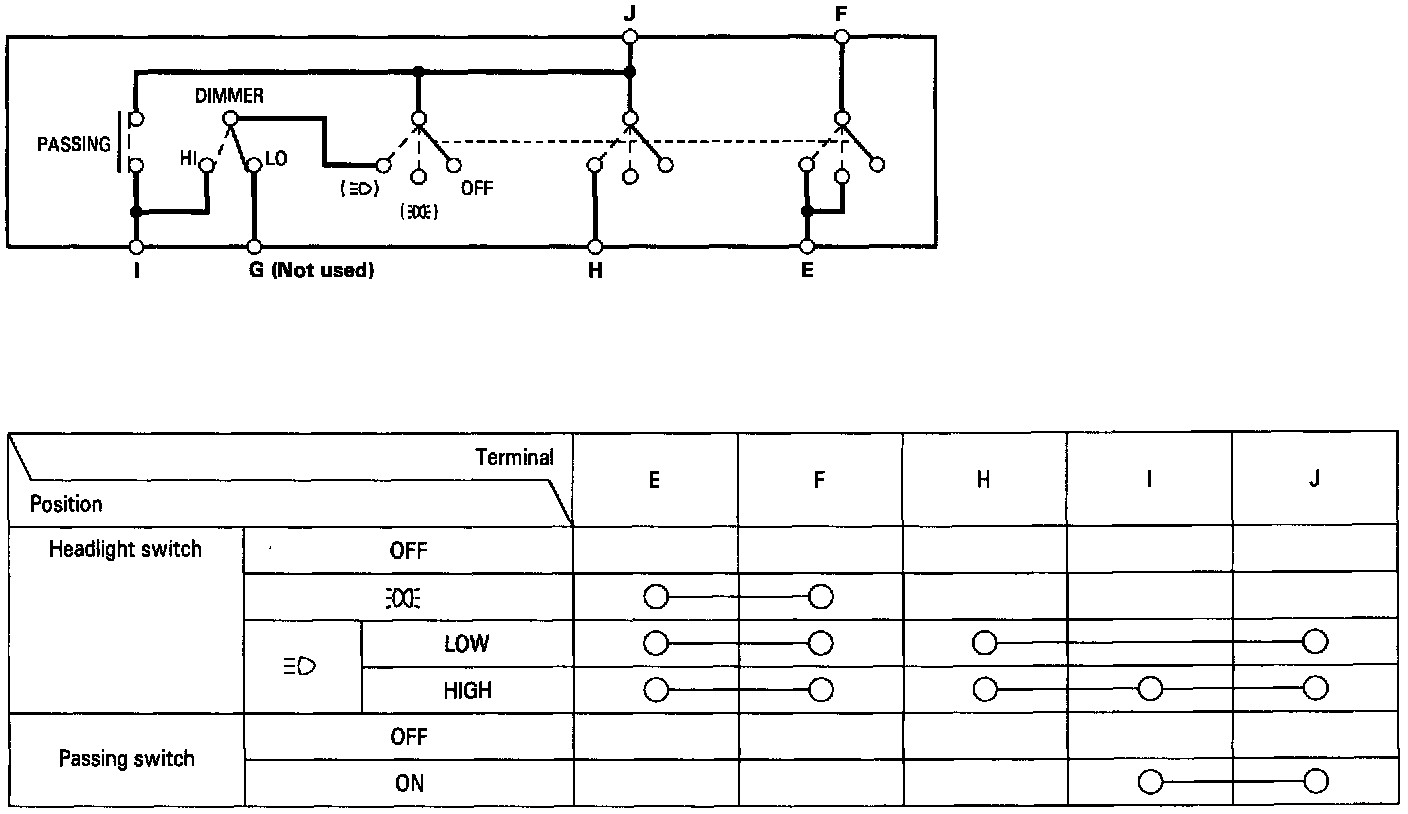

Combination Light Switch:

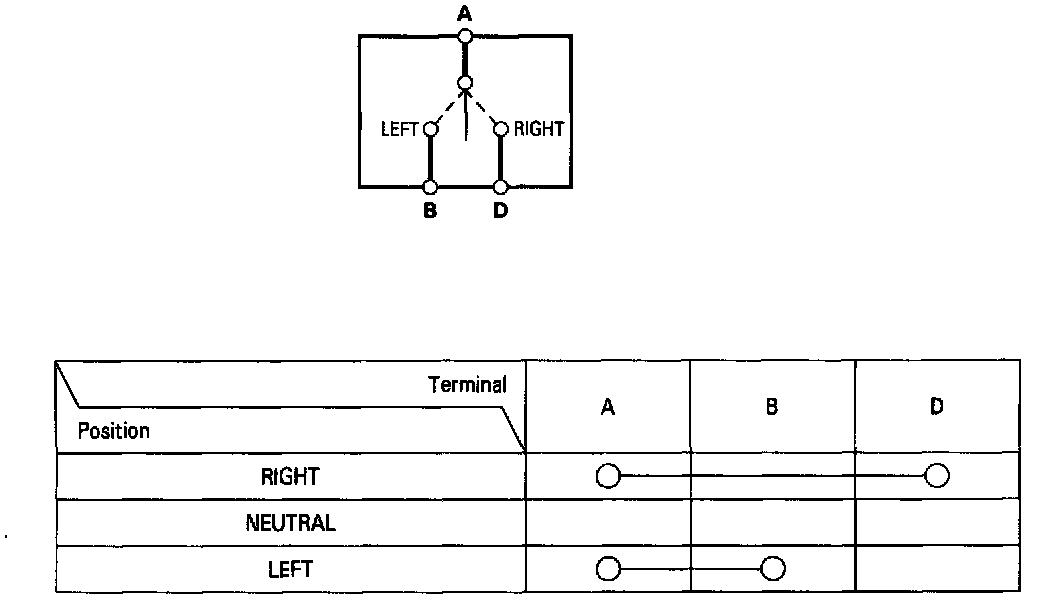

Turn Signal Switch:

4. Check for continuity between the terminals in each switch position according to the table.
