Bulb Replacement

TAILLIGHT BULB / REPLACEMENT (SEDAN)

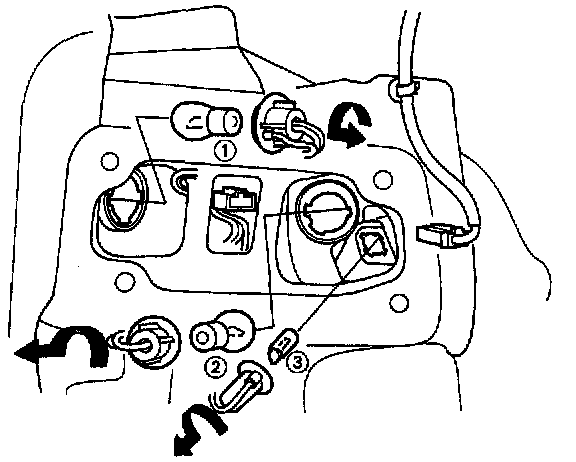

Taillight:
1. Open the trunk lid, then remove the rear panel lining and side lining.

2. Remove the bulb from the bulb socket.

(1): BRAKE/TAILLIGHT BULB (32/3 CP)
(2): TURN SIGNAL LIGHT BULB (32 CP)
(3): REAR PARKING LIGHT BULB (3 CP)

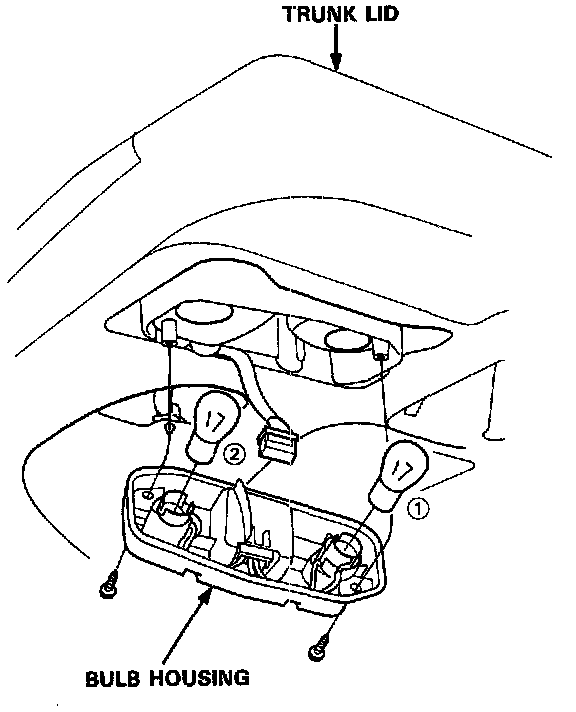

Inner Taillight:
1. Open the trunk lid, then remove the bulb housing.

2. Remove the bulb from the bulb housing.

(1): BACK-UP LIGHT BULB (32 CP)
(2): BRAKE/TAILLIGHT BULI3 (32/3 CP)
