Ignition Coil: Service and Repair
IGNITION COIL / REPLACEMENT 1.

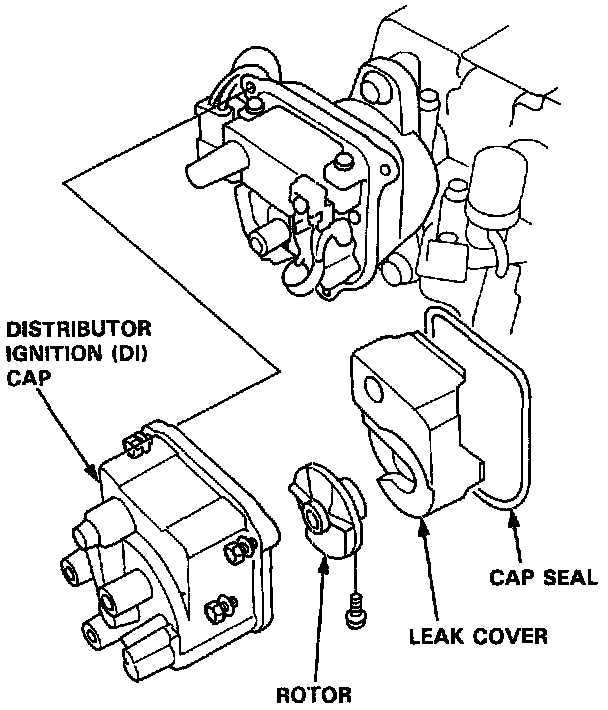

With the
ignition switch OFF, remove the
distributor ignition (DI) cap, rotor, and cap seal, then remove the leak cover.
2.
Remove the two screws to disconnect the BLK/YEL and WHT/BLU wires from the coil.
3.
Remove the two screws, and slide the
ignition coil Out of the
distributor ignition (DI) housing.
