Alternator Bearing: Service and Repair
Rear Bearing Replacement(Mitsubishi):
1.
Pull off the rear bearing.
-
Make sure the tips of the bearing puller jaws are thin enough to fit between the bearing and the slip rings.
-
Do not reuse the bearing.
(Mitsubishi):
2.

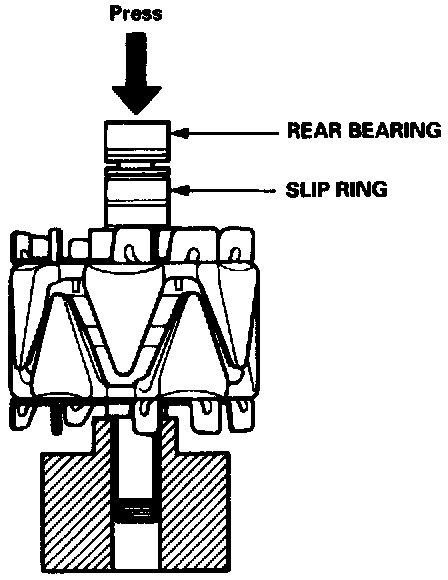

Use a hand press to install the new bearing. Apply pressure only on the inner race to avoid damaging the bearing.
