Denso

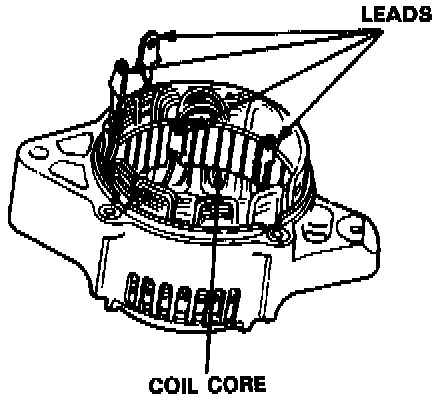

Stator Test
1. Check that there is continuity between each pair of leads.
2. Check that there is no continuity between each lead and the coil core.
3. If the coil fails either continuity check, replace the alternator.
1. Check that there is continuity between each pair of leads.
2. Check that there is no continuity between each lead and the coil core.
3. If the coil fails either continuity check, replace the alternator.
