Fluid Line/Hose: Service and Repair





ATF COOLER HOSES
CONNECTION

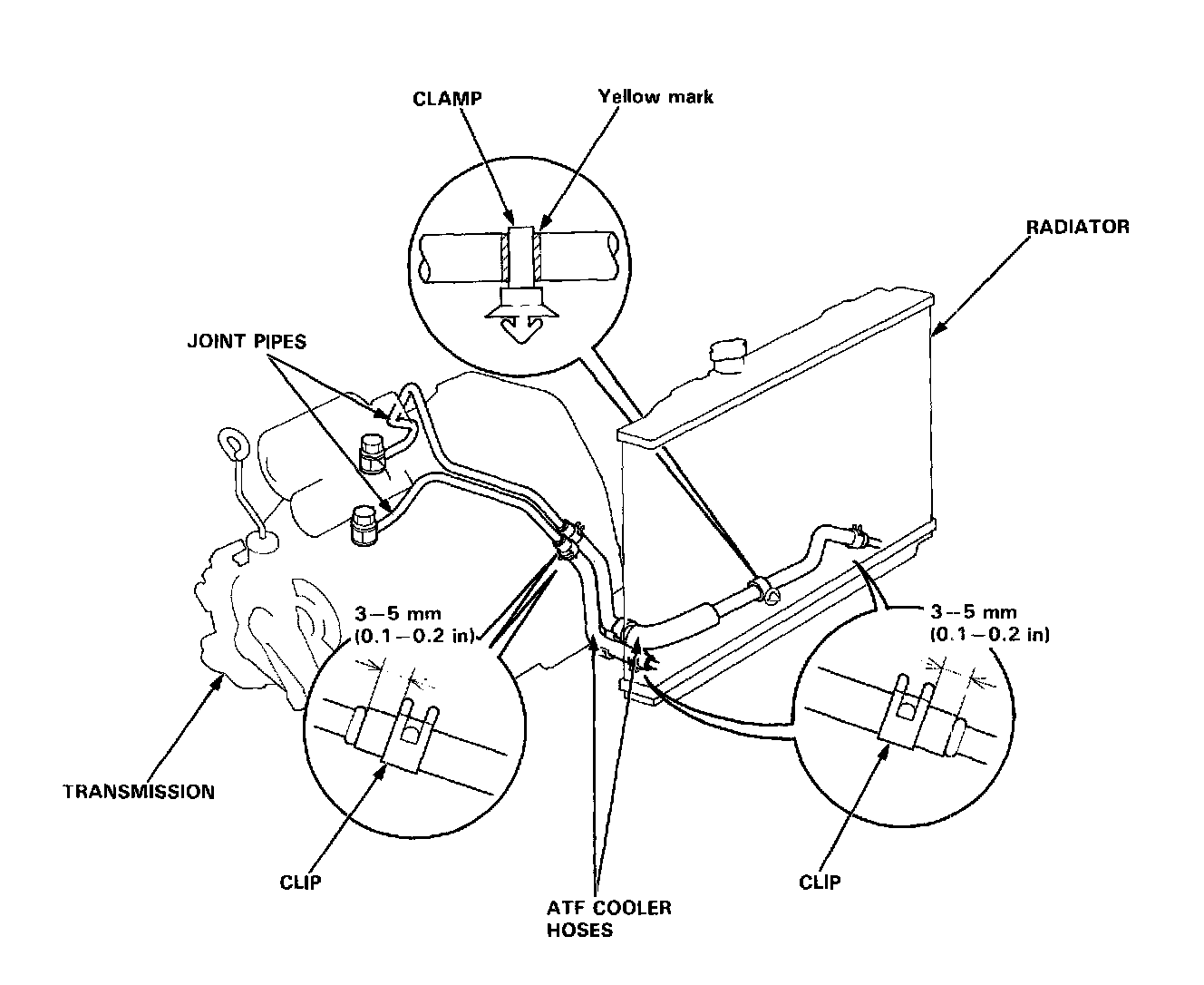

1. Connect the ATF cooler hoses to the joint lines and ATF cooler, and secure them with the clips as shown.
2. Clamp the ATF cooler hose at the yellow mark as shown.
