Shift Linkage: Service and Repair

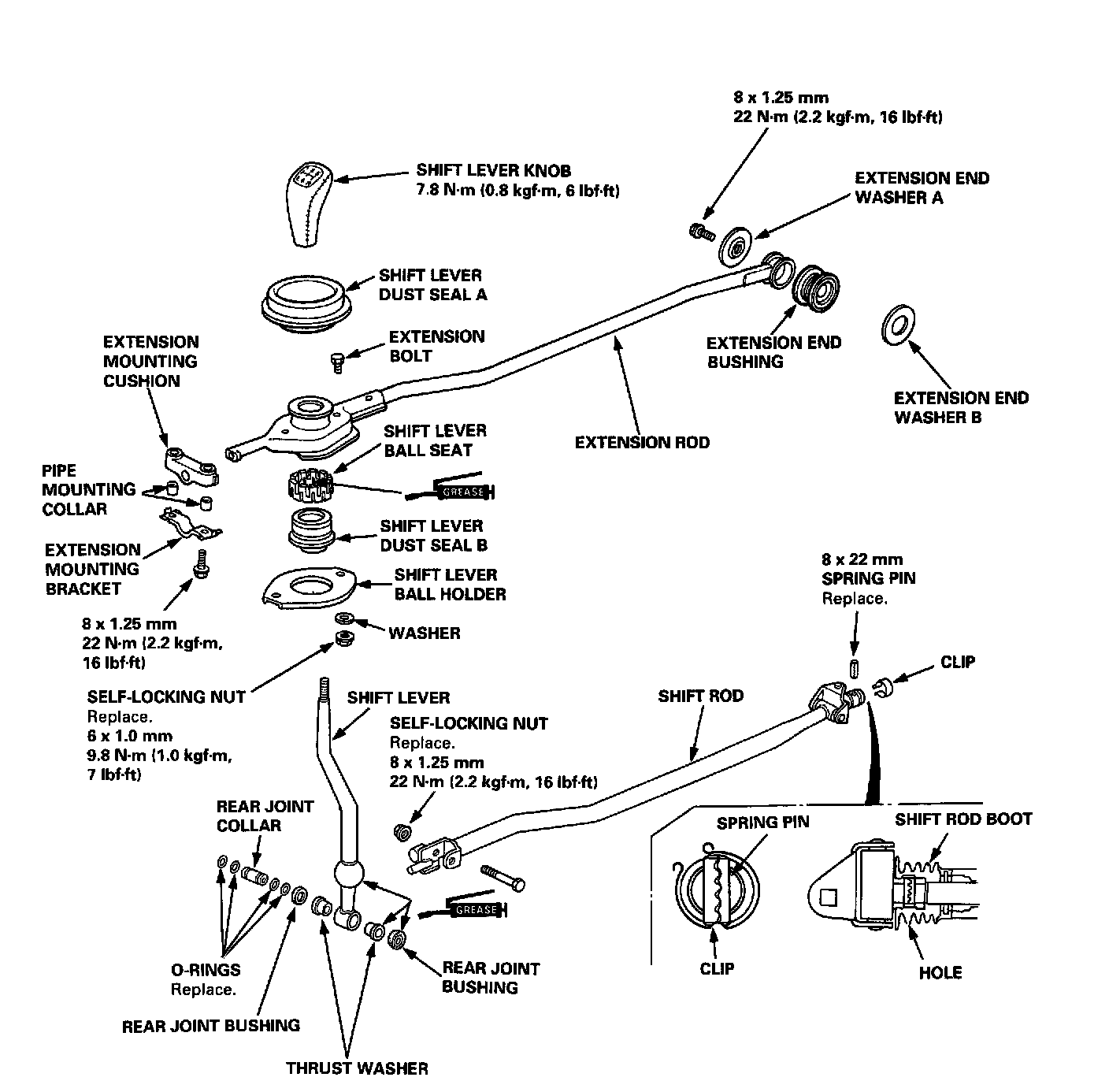

GEARSHIFT MECHANISM OVERHAUL NOTE: -
Inspect rubber parts for wear and damage when disassembling; replace any worn or damaged parts.
-
Install the spring pin and the clip on the change joint as shown.
-
Turn the shift rod boot so the hole is facing down as shown.
-
Make sure the shift rod boot is installed on the change rod.
