Windshield Washer Motor: Service and Repair

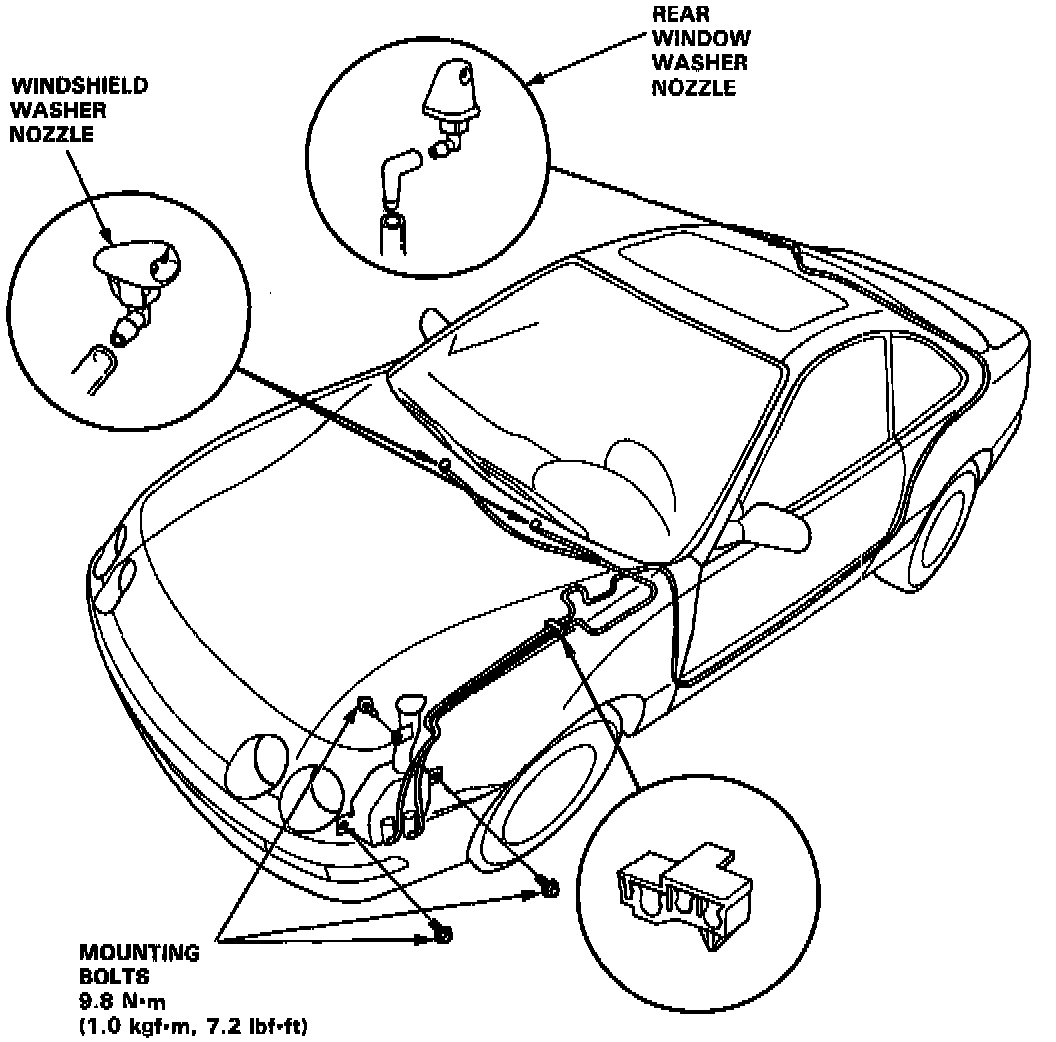

WASHER MOTOR / REPLACEMENT
1. Remove the front bumper.
2. Remove the left front inner fender.
3. Disconnect the 2-P connector and hose from the washer motor.
4. Remove the three mounting bolts and the washer reservoir.
5. Remove the washer motor from the reservoir.
6. Remove the windshield wiper arms and air scoop. Then remove the washer nozzles and hoses.







7. Install in the reverse order of removal.

NOTE:
- Take care not to pinch the hoses during installation.
- Install the clips firmly.
- After installing, adjust the aim of the washer nozzles.
