Condenser Fan: Service and Repair

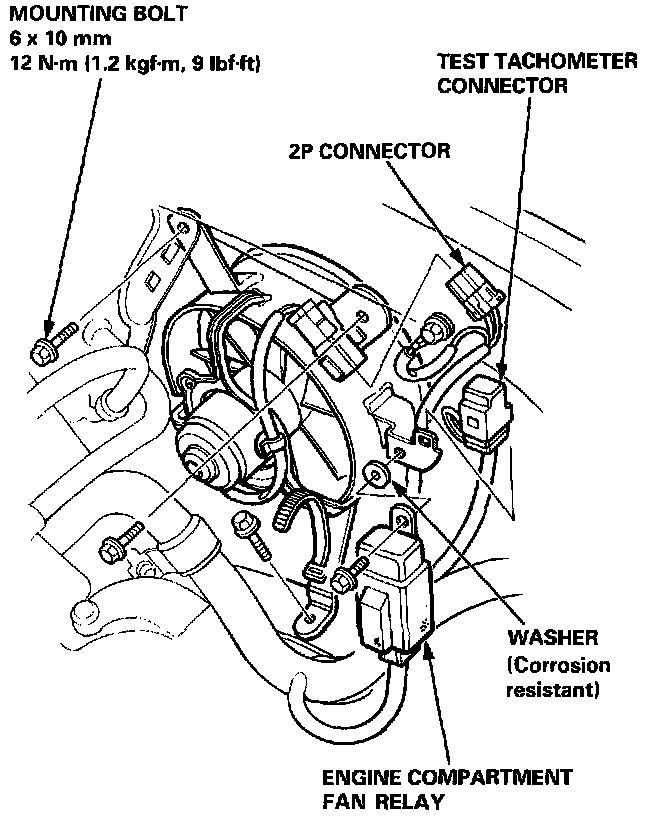

Engine Compartment Fan Motor Removal (A/T):
1.
Disconnect the 2P connector from the engine compartment fan motor.
2.
Remove the engine compartment tan relay, the test tachometer connector, and the engine wire harness from the engine compartment fan shroud.
3.
Remove the three mounting bolts.
