Passenger's Window Switch Replacement

1. Remove the door panel.

Passenger's Switch Replacement:

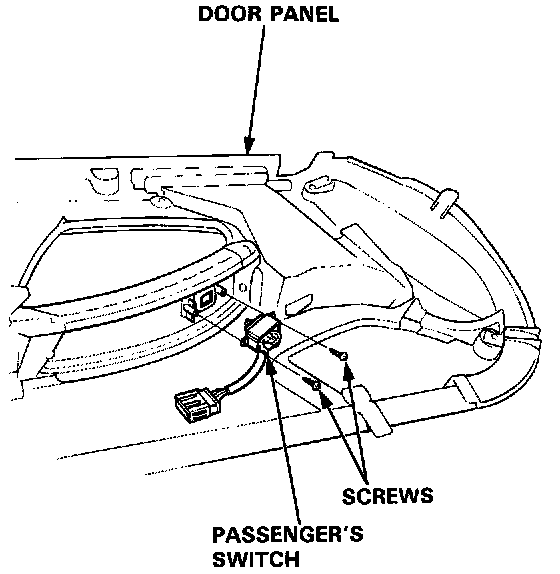

2. Remove the two screws, then remove the passenger's switch from the door panel.
3. Install in the reverse order of removal.
