Console: Service and Repair

Console Panel/Rear Console

Removal - '99 - 04 Models

CAUTION: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

NOTE: Take care not to scratch the console panel, rear console, front seat, and related parts.

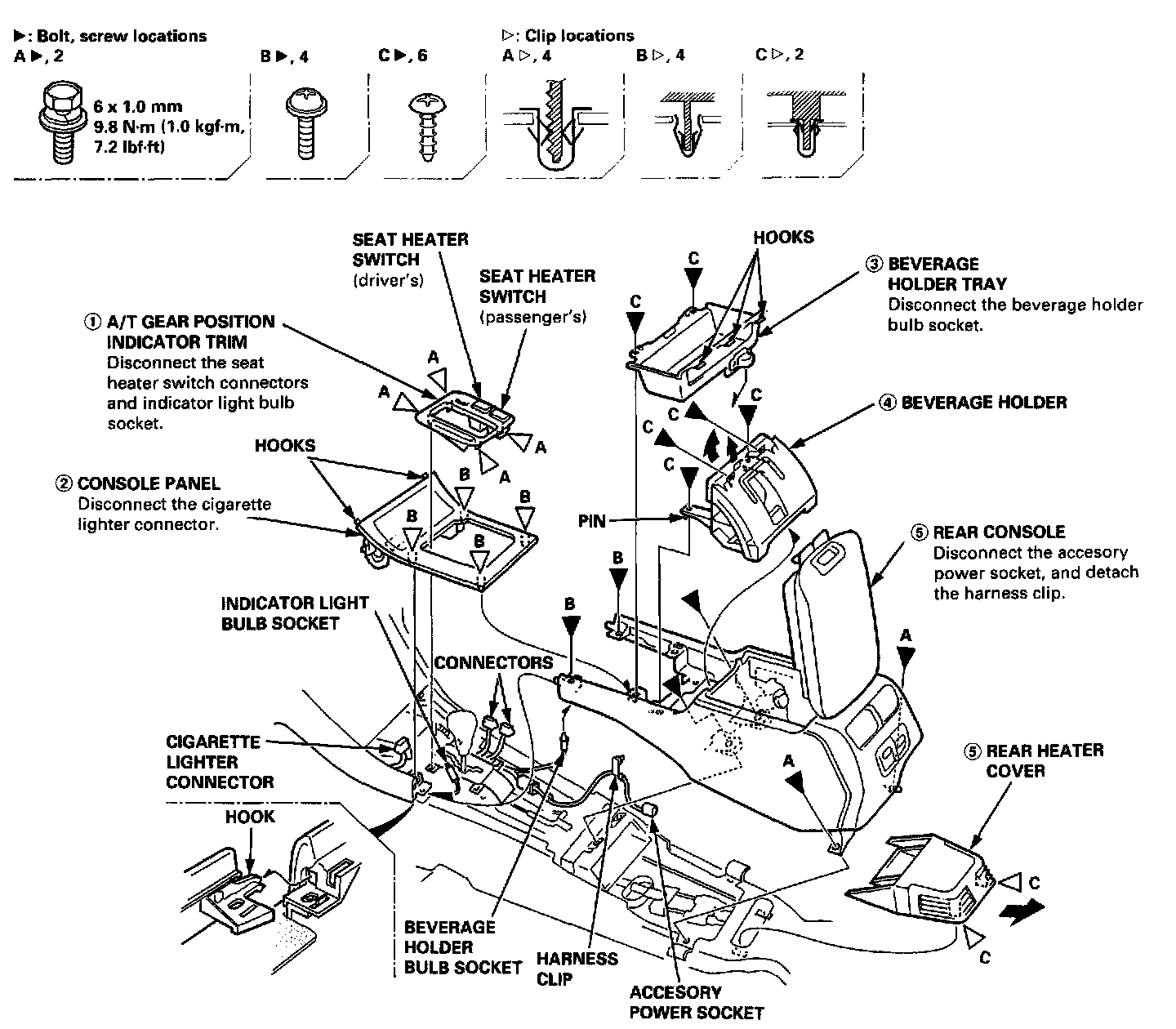

Disassemble in numbered sequence.

Installation is the reverse of the removal procedure.

NOTE:
- If necessary, replace any damaged clips.
- Make sure the wire harnesses are not pinched.
- Make sure the connectors and bulb socket are connected properly.
