Interior Moulding / Trim: Service and Repair

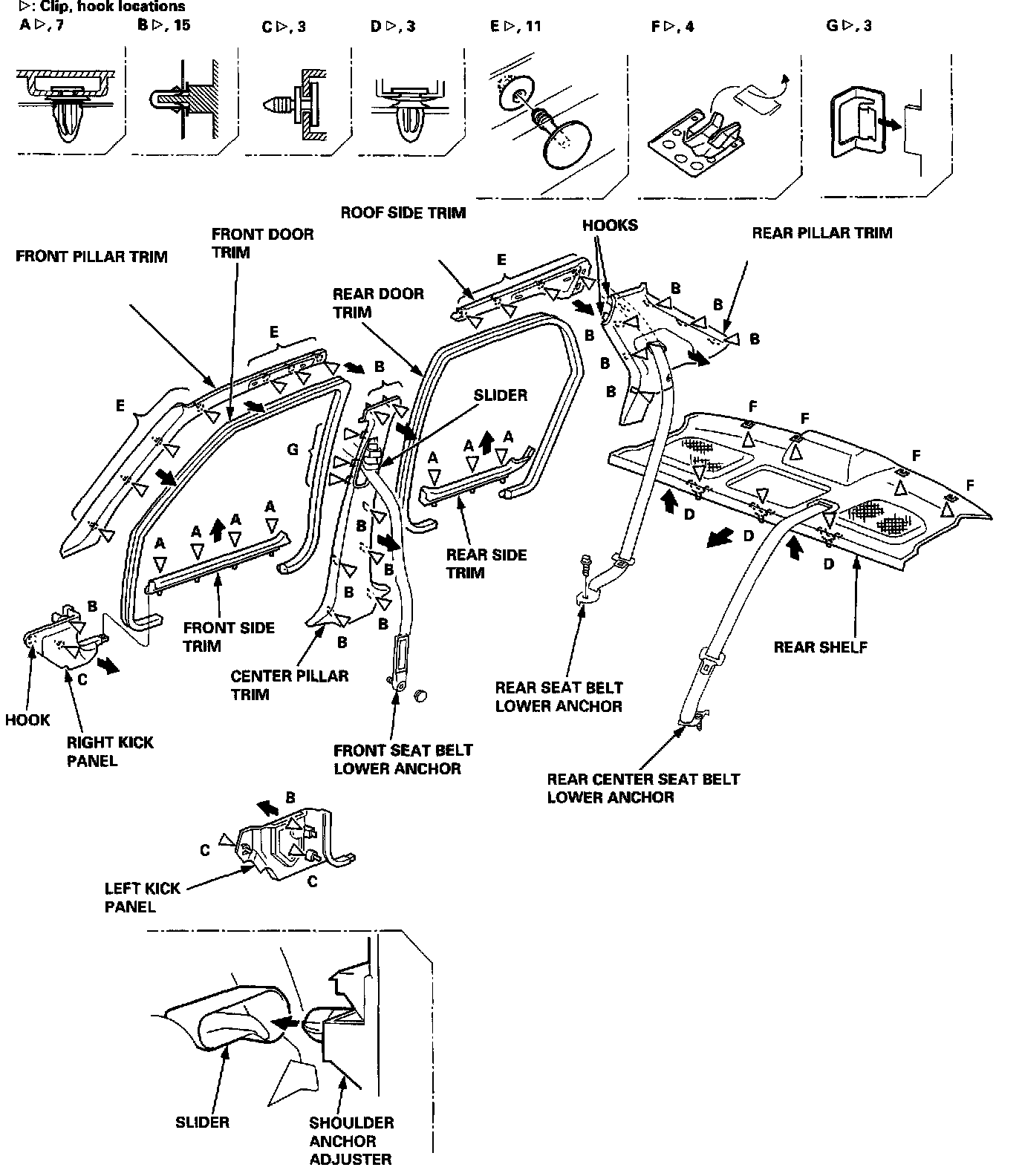

Interior Trim

Removal

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.






NOTE: Take care not to bend or scratch the trim and panels.

Installation is the reverse of the removal procedure.

NOTE:
- If necessary, replace any damaged clips.
- Before installing the center pillar trim, lower the shoulder anchor adjuster and the slider of the center pillar trim fully.
- Before installing the anchor bolts and rear pillar trim, make sure there are no twists or kinks in the seat belts.
- '00 - 04 models: Make sure the child seat tether anchors are installed securely.
