Seat Temperature Element: Testing and Inspection

1. Carefully remove the driver's and front passenger's seat.

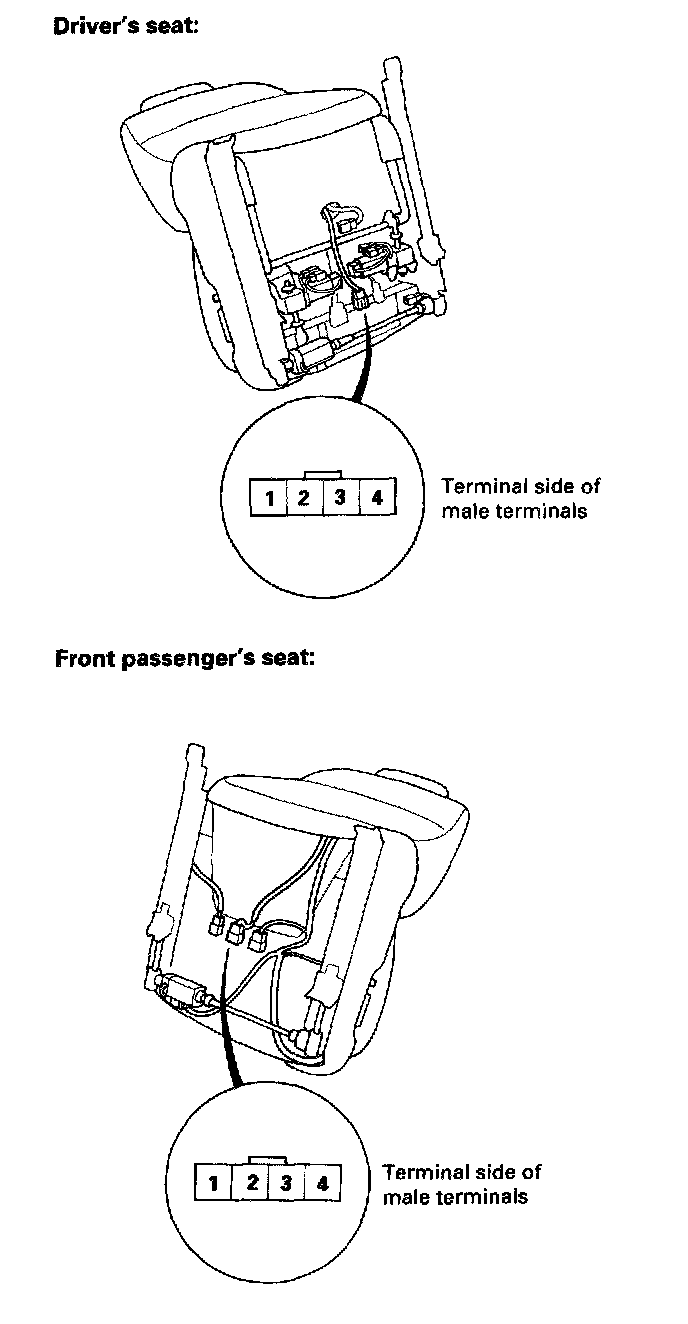

2. Check for continuity between the No.1 and No.4 terminals, and No.3 and No.4 terminals. There should be continuity.
