Intake Air Control Valve

TCS Control Valve Assembly Replacement

CAUTION: Be careful not to damage the TCS control valve when handling the TCS control valve assembly.

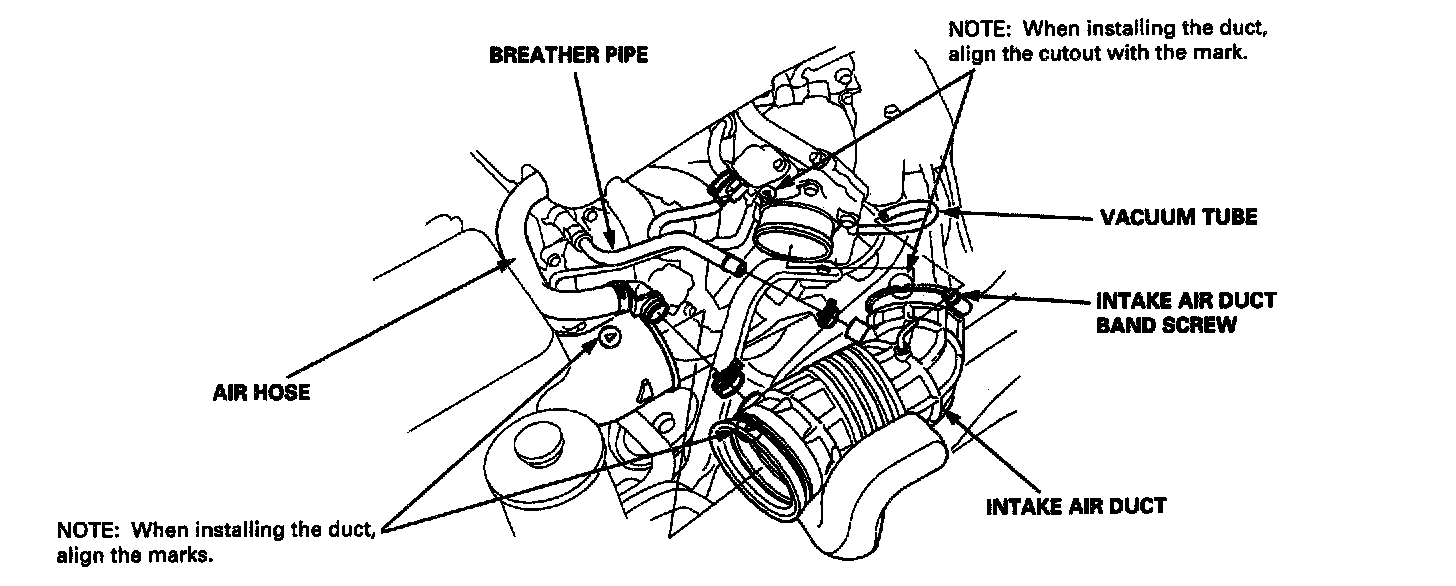

1. Disconnect the vacuum tube, breather pipe, and air hose from the intake air duct.
2. Loosen the intake air duct band screws, then remove the intake air duct.

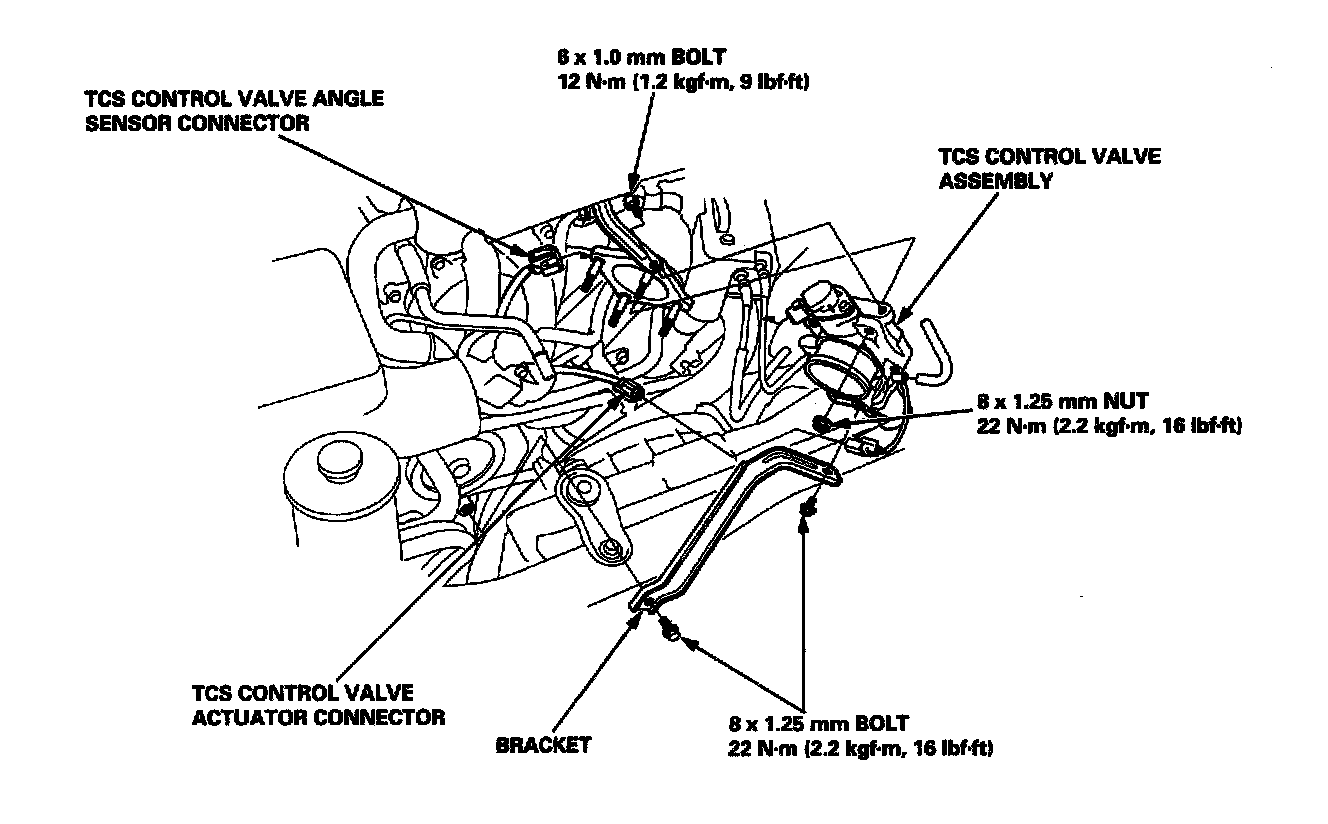

3. Disconnect the TCS control valve angle sensor connector and actuator connector.
4. Remove the TCS control valve assembly and bracket.
5. Install the TCS control valve assembly in the reverse order of removal.
