System Diagram

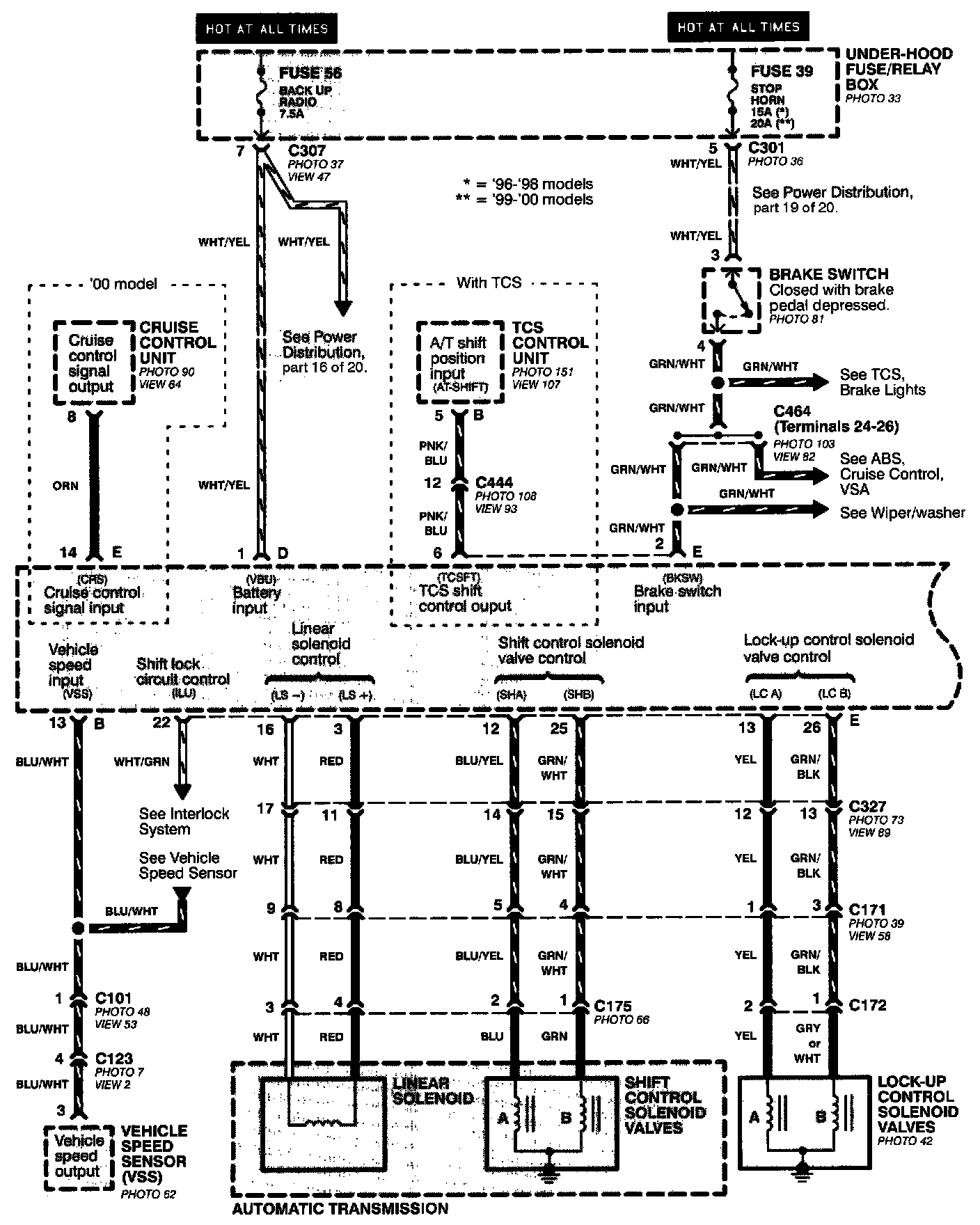

Part 1 Of 4:




Automatic transmission
- Linear Solenoid
- Shift control Solenoid Valves
Cruise Control Unit
Lock-up Control Solenoid Valves
TCS Control Unit
Under-Hood Fuse/Relay Box
- Fuse
Vehicle Speed Sensor

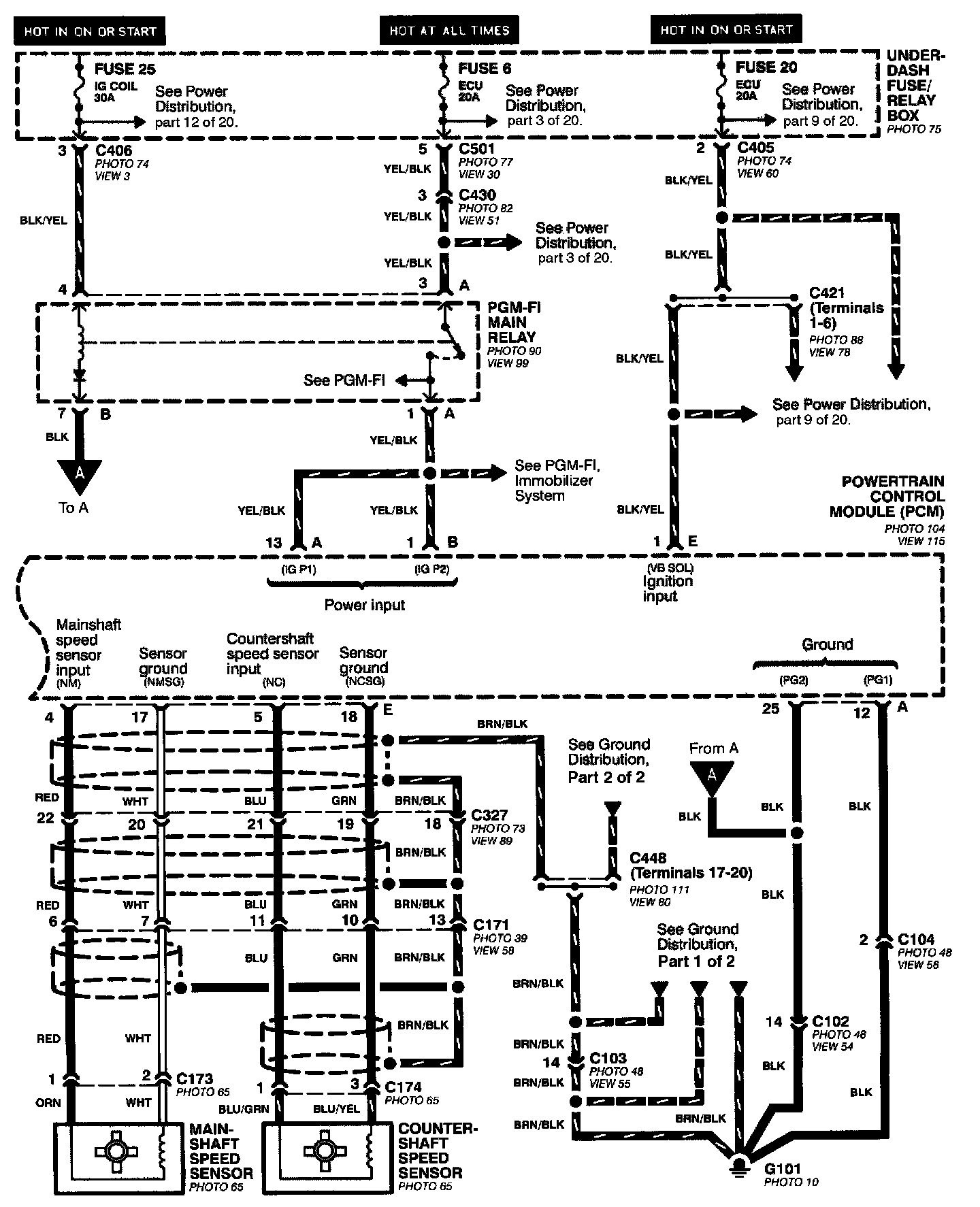

Part 2 Of 4:




Counter-Shaft Speed Sensor
Main Shaft Speed Sensor
PGM-FI Main Relay
Powertrain Control Module(PCM)

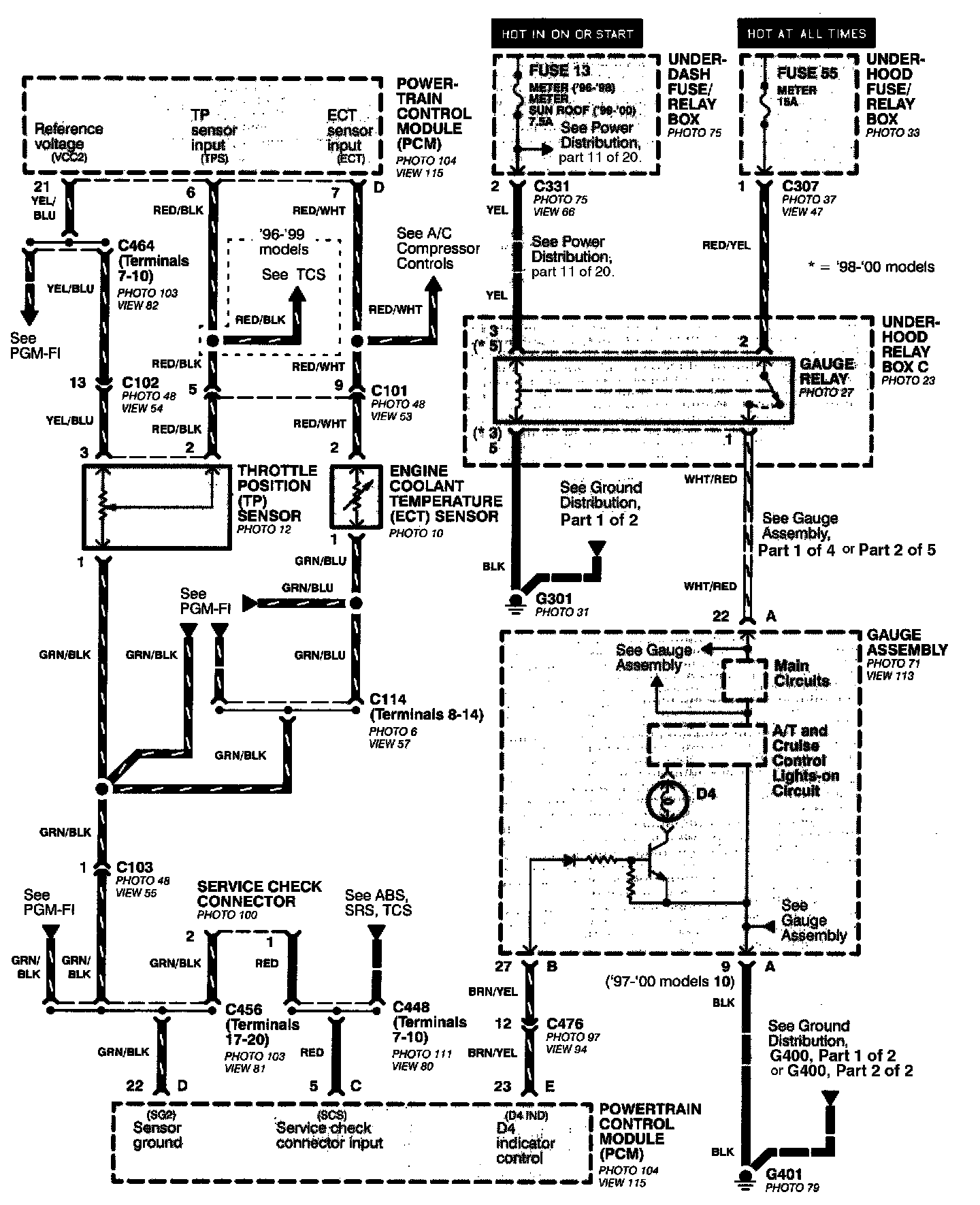

Part 3 Of 4:




Engine Coolant Temperature Sensor
Gauge Assembly
Powertrain Control Module(PCM)
Service Check Connector
Throttle Position Sensor (TP)
Under-Dash Fuse/Relay Box
Under-Hood Relay Box C
- Gauge Relay

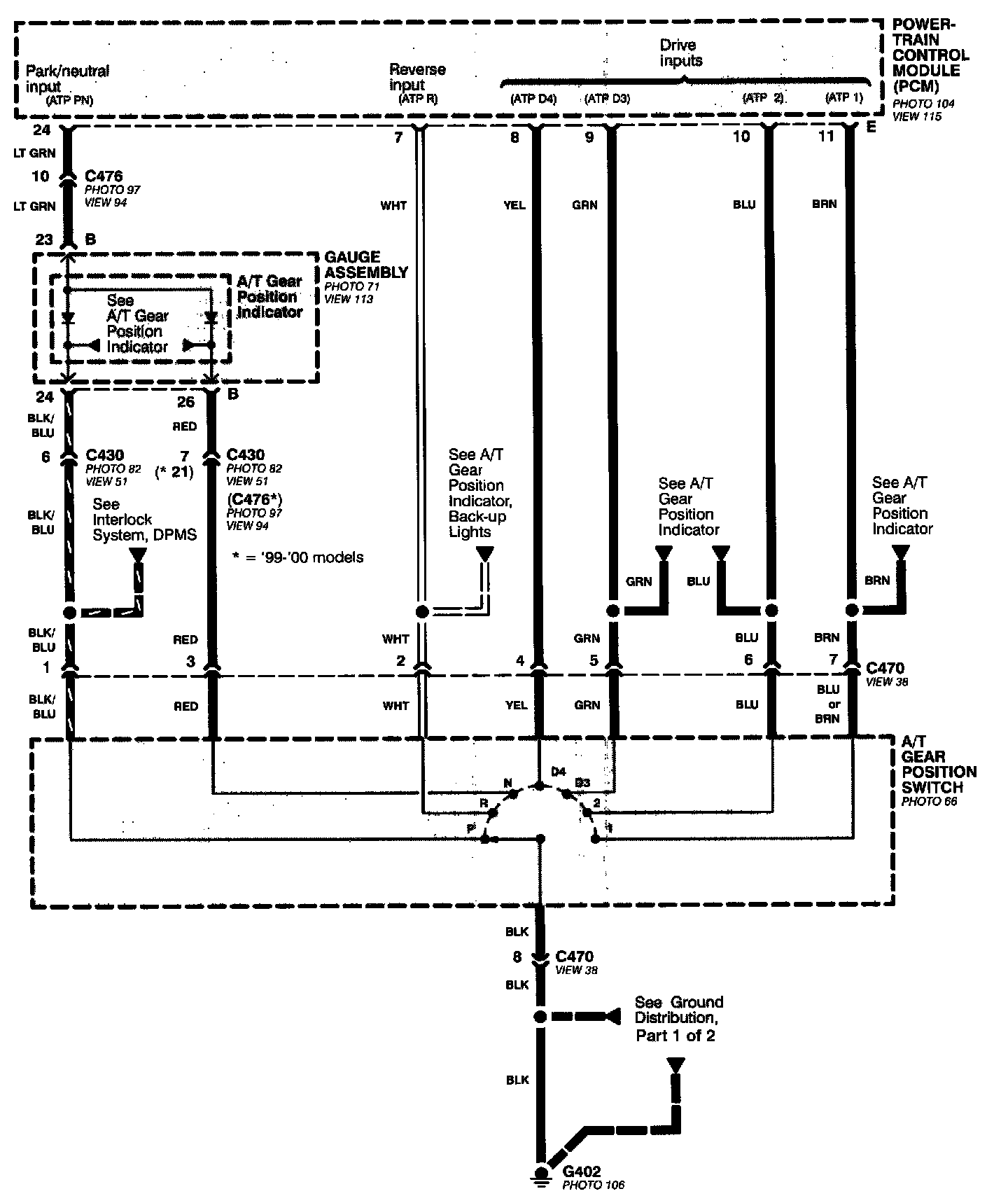

Part 4 Of 4:




A/T Gear Position Switch
Gauge Assembly
Powertrain Control Module (PCM)
