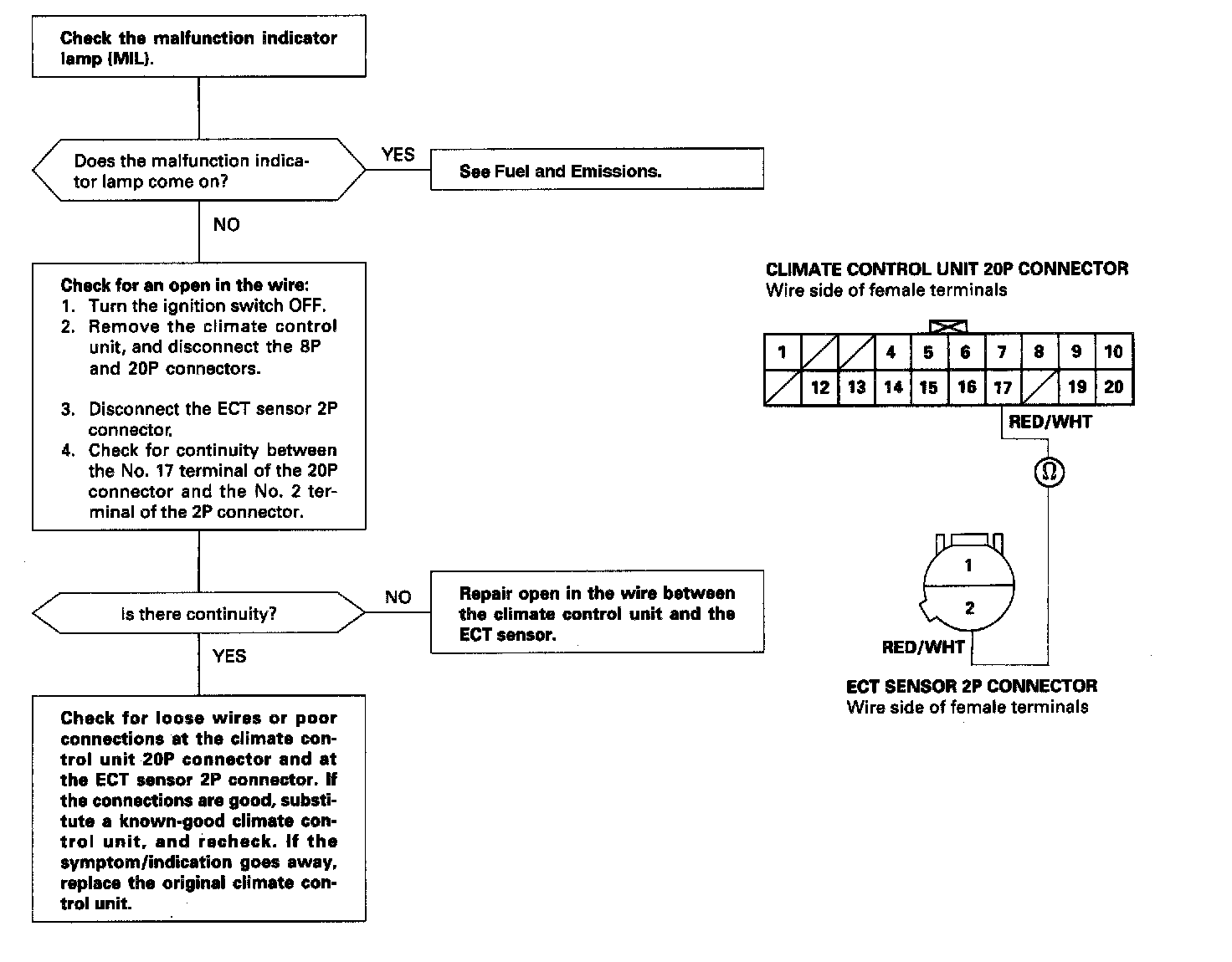

Engine Coolant Temperature (ECT) Sensor




The blower motor does not run immediately, even though the engine is fully warmed up.

NOTE: The temperature control dial must be set between 61 °F [18 °C] and 89 °F [32 °C].
