Shift Interlock Solenoid: Service and Repair

Shift Lock Solenoid Replacement

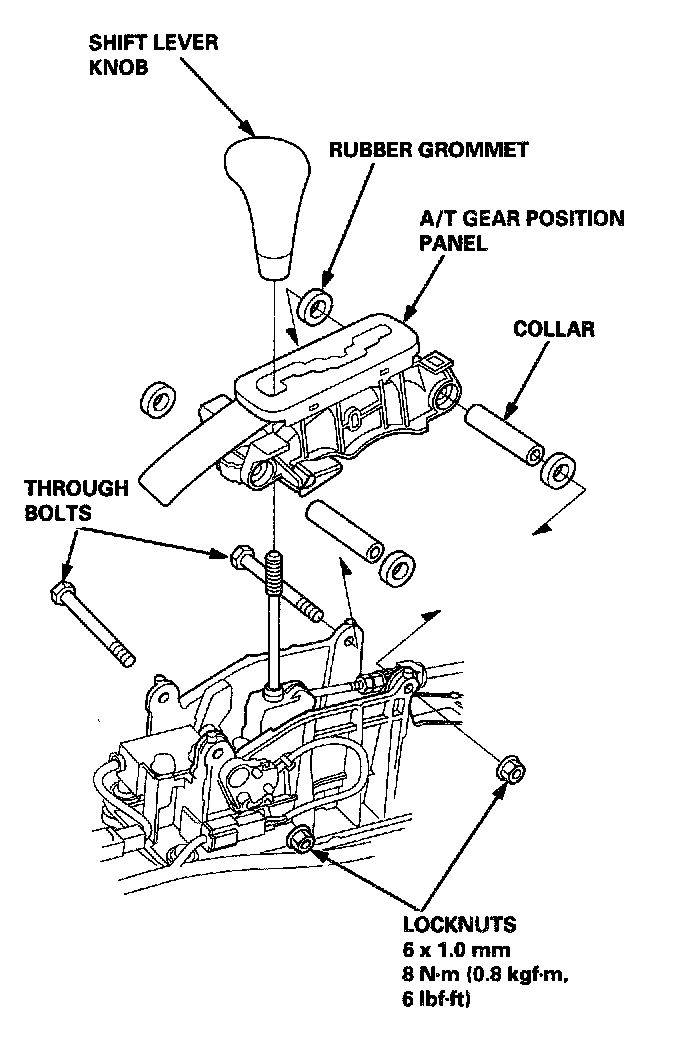

1. Remove the center console and shift lever knob.
2. Disconnect the connectors from the shift lock solenoid and park pin switch.





3. Remove the two locknuts and through bolts, then remove the A/T gear position panel.





4. Remove the two mounting bolts, then remove the shift lock solenoid.





5. Install the shift lock solenoid in the reverse order of removal.

NOTE: Make sure there is clearance between the stop pin and base bracket when the solenoid is ON and OFF.
