Symptom Related Diagnostic Procedures




- In intermittent, the wipers operate every few seconds. The sweep interval will change slightly with speed; getting shorter as you drive faster.
- If you turn the INT TIME ring to the shortest delay, the wipers will change from intermittent to low speed operation when vehicle speed exceeds 12 mph (20 km/h).

NOTE:
- Before testing, go to the Troubleshooting Guide Refer to Multiplex Communication System Testing and Inspection. Be sure to go through self-diagnosis function modes 1 and 2.

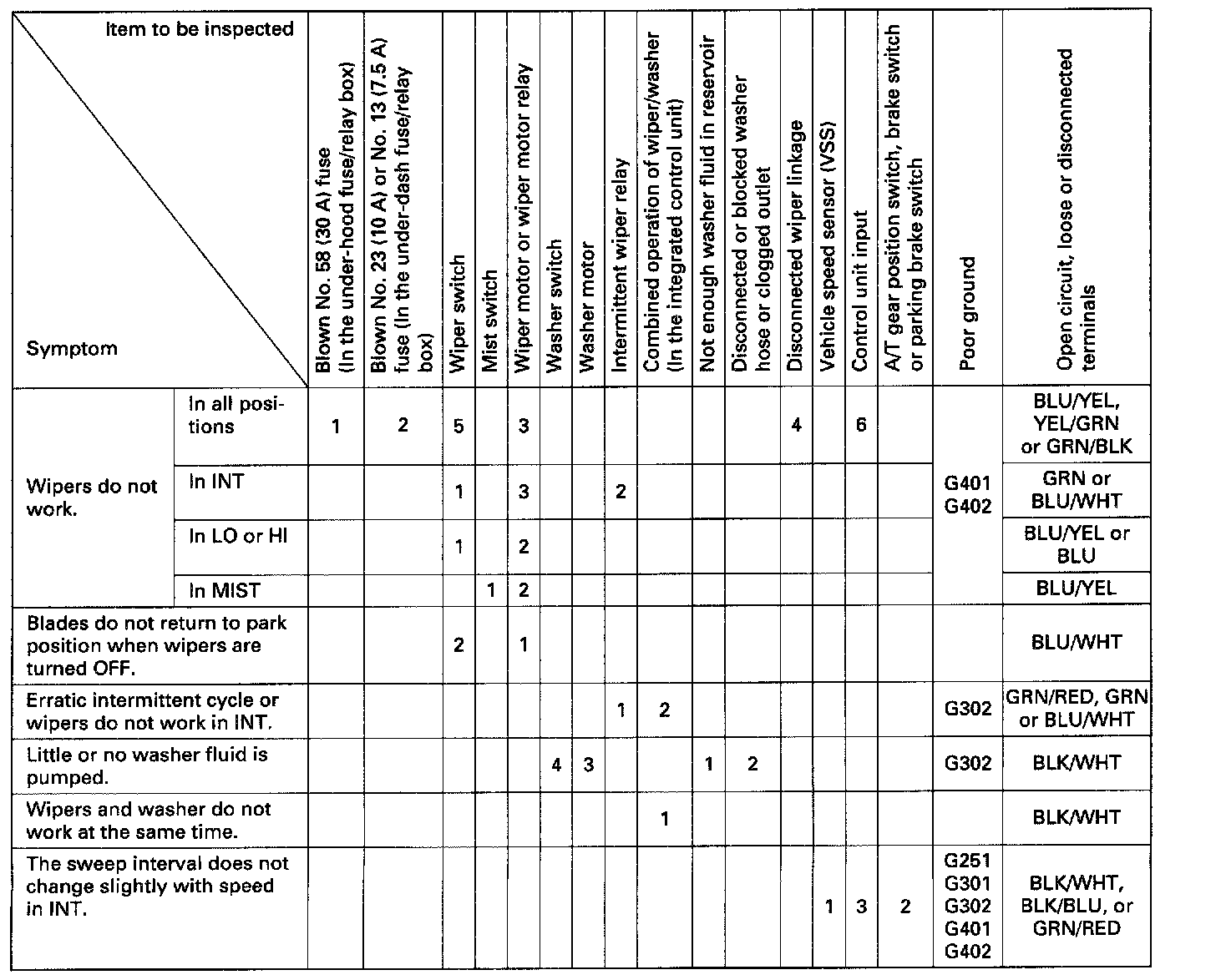

- The numbers in the table show the troubleshooting sequence.
