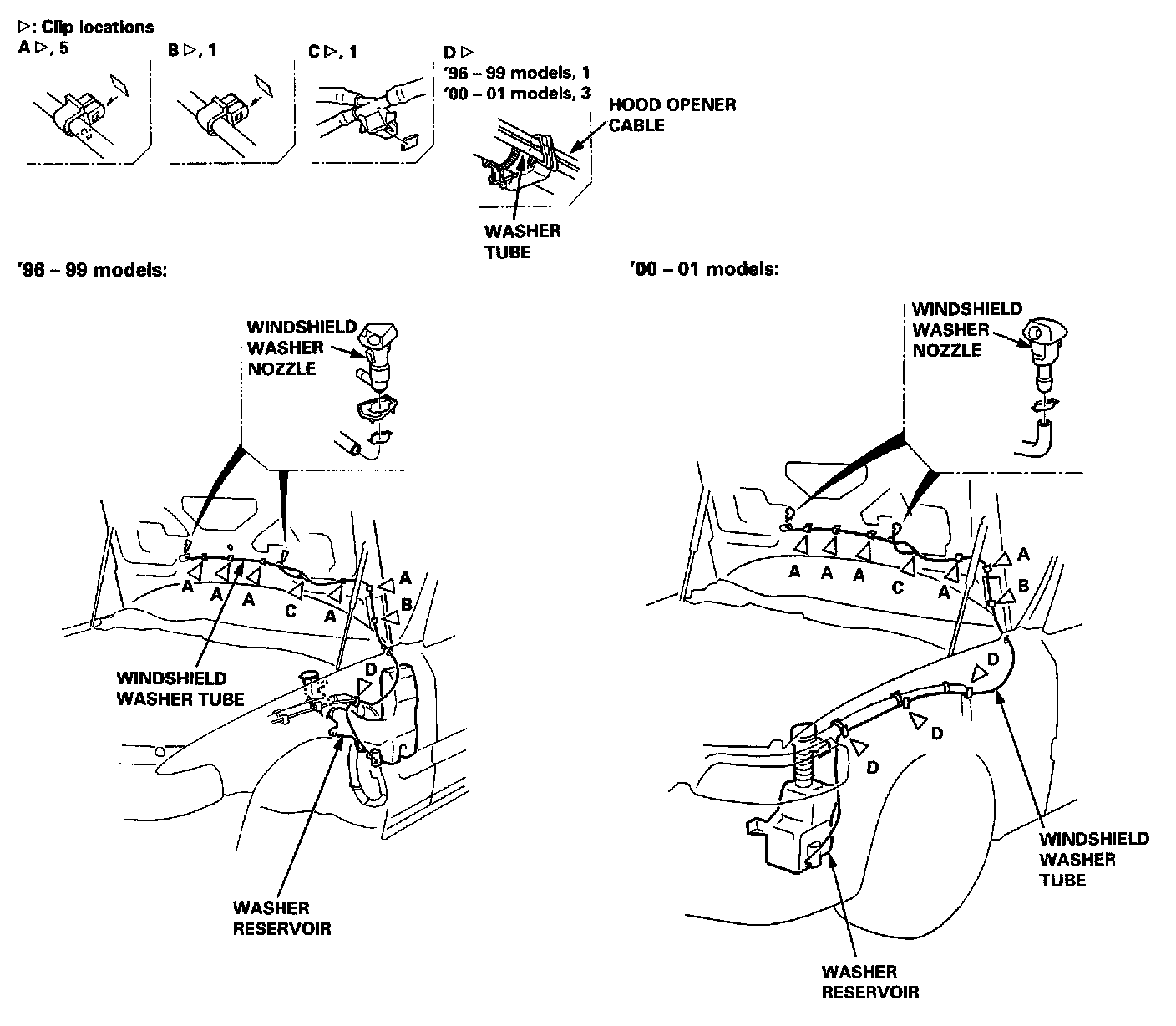

Windshield Washer Hose: Service and Repair
Washer TubeReplacementRemove the left inner fender.
Installation is the reverse of the removal procedure.
NOTE: -
Take care not to pinch the washer tube.
-
If necessary, replace any damaged clips.
-
After installing, adjust the aim of the windshield washer nozzles.
