DTC 53

DTC 53: Motor Stuck On
1. Clear the DTC.
2. Test-drive the vehicle.
Does the ABS indicator come on and is DTC 53 indicated?
YES - Go to step 3.
NO - Intermittent failure, the system is OK at this time.

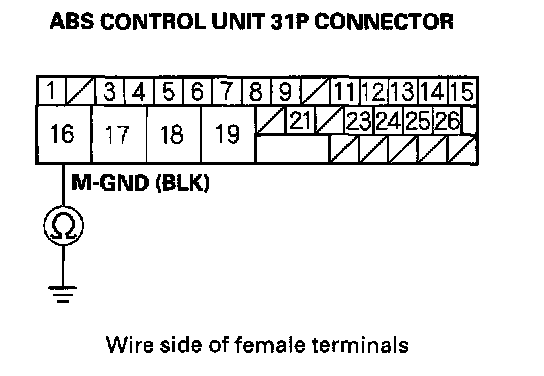

3. Disconnect the ABS control unit 31P connector.





4. Check for continuity between the ABS control unit 31P connector terminal No. 16 and body ground.
Is there continuity?
YES - Replace the ABS modulator-control unit.
NO - Repair open in the wire between the ABS control unit and body ground.
