DTC 61
DTC 61: Ignition Voltage1. Check the R/C MIRROR (7.5A) fuse in the driver's under-dash fuse/relay box, and reinstall the fuse if it is OK.
Is the fuse OK?
YES - Go to step 2.
NO - Replace the fuse and recheck.
2. Clear the DTC.
3. Test-drive the vehicle.
Does the ABS indicator come on and is DTC 61 indicated?
YES - Go to step 4.
NO - The system is OK at this time..
4. Disconnect the ABS control unit 31P connector.
5. Turn the ignition switch ON (II).

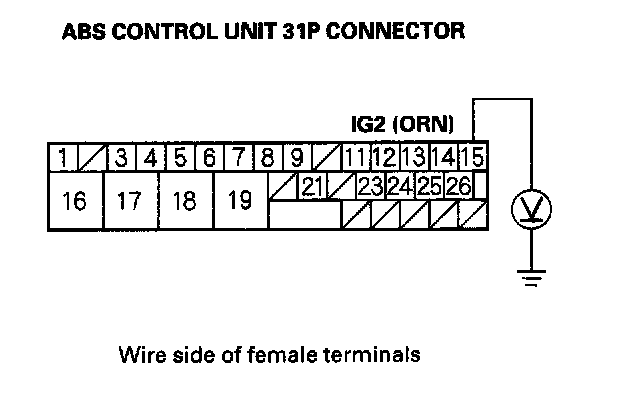

6. Measure the voltage between the ABS control unit 31P connector terminal No. 15 and body ground.
Is there battery voltage?
YES - Replace the ABS modulator-control unit.
NO - Repair open in the wire between the ABS control unit and the under-hood multi fuse box.
