Navigation Display: Service and Repair

Display Unit Removal/Installation
1. Remove the center panel.
2. Remove the display unit/audio unit.

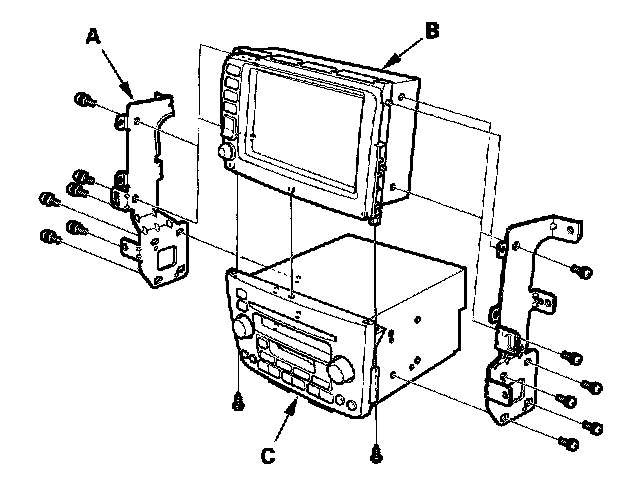

3. Remove the bracket (A), then remove the display unit (B) from the audio unit (C).
4. Install the parts in the reverse order of removal.
