Second Row Seat-Back Recline Cable

Second Row Seat-back Recline Cable Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend the cable.

1. Remove the seat-back recline lever.

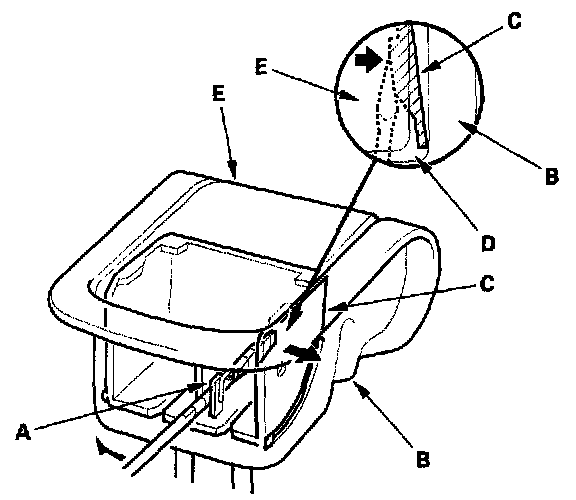

2. Carefully insert a flat-tip screwdriver through hole (A) in the housing (B), then press the inside face of the cover (C) outward against the housing to make a gap (D) between the lever (E) and the cover.

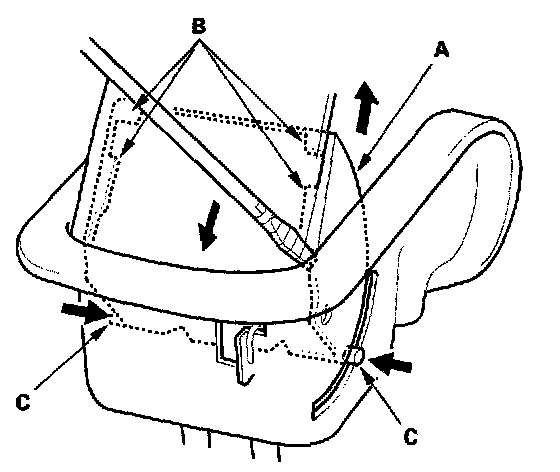

3. Carefully pry out the cover (A) with a flat-tip screwdriver at the gap while holding the lever open. Release the tabs (B), and push both stopper portions (C), then remove the cover.

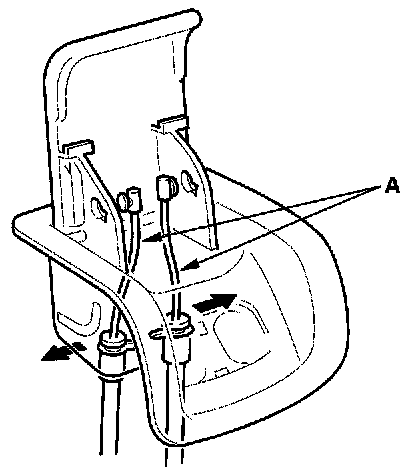

4. Disconnect the recline cables (A). There is no inner recline cable on the right recline lever.
5. Install the second row seat-back recline cables in the reverse order of removal, and make sure the cables are connected securely.
