Pinout Values and Diagnostic Parameters

ABS Control Unit Inputs and Outputs for 31P Connector

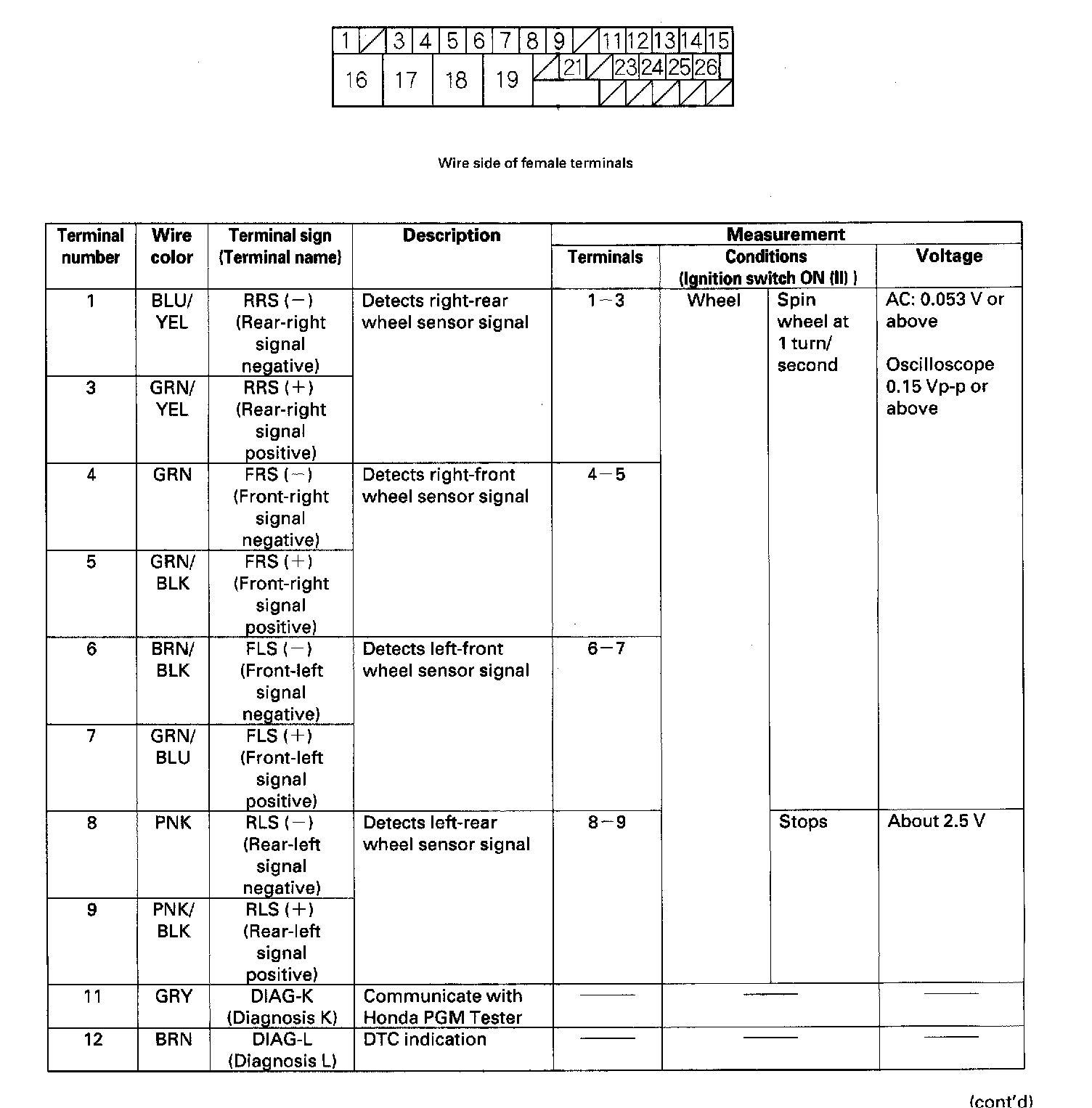

Part 1 of 2

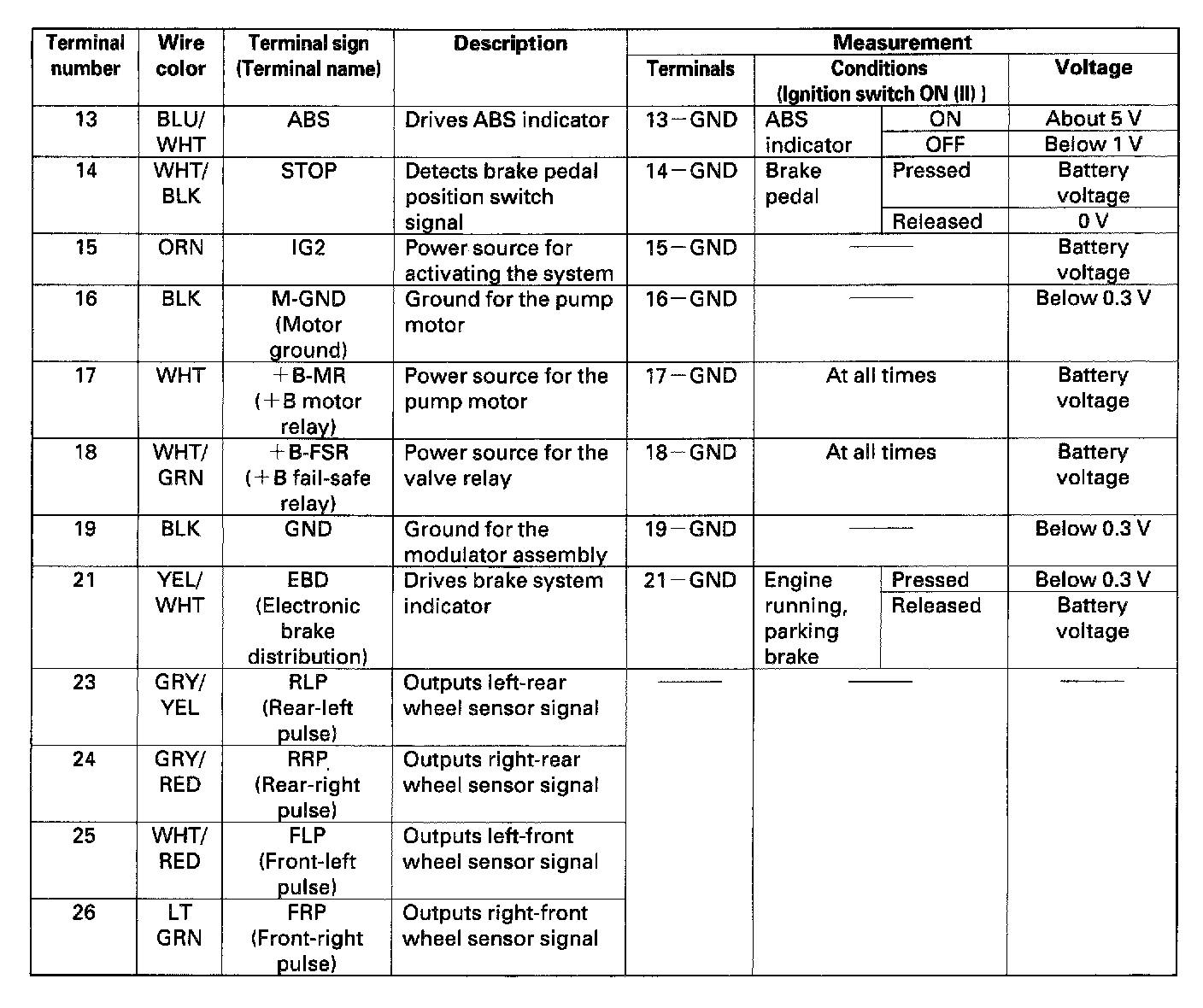

Part 2 of 2
