System Diagram
System Diagram

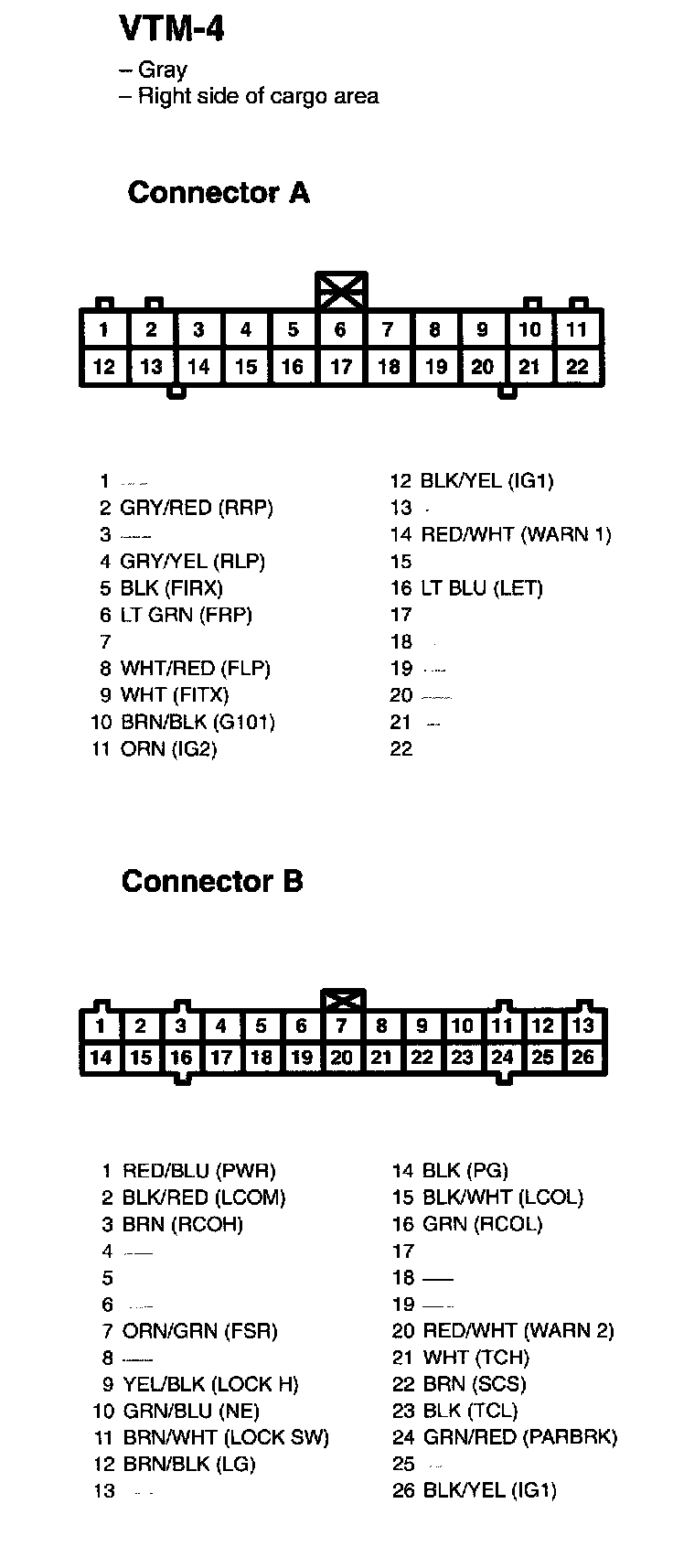

VTM-4 ( Connector A - B):
Rear Accessory Power Socket Relay and VTM - 4 Relay:

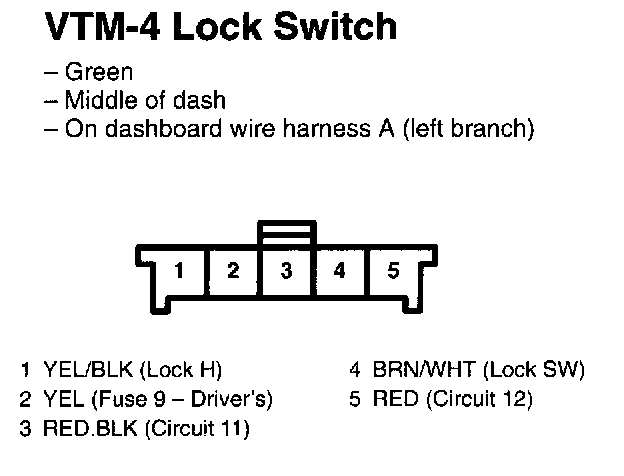

VTM-4 Lock Switch:
