Operation CHARM
: Car repair manuals for everyone.
Home
>>
Acura
>>
2001
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
Wheel Speed Sensor

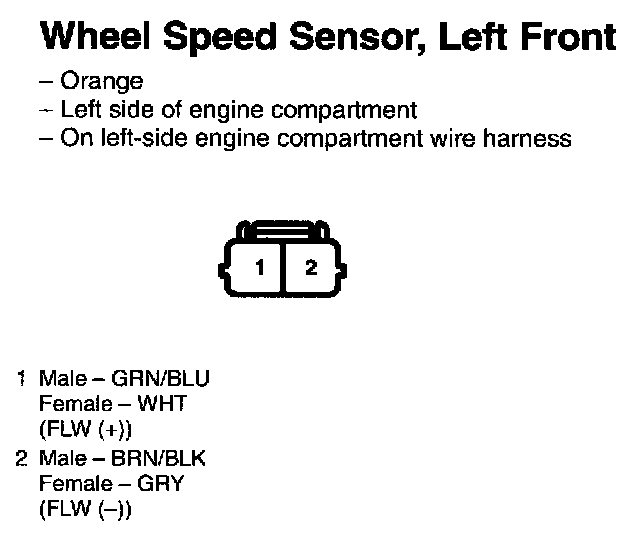

Wheel Speed Sensor, Left Front:
Wheel Speed Sensor, Left Rear:

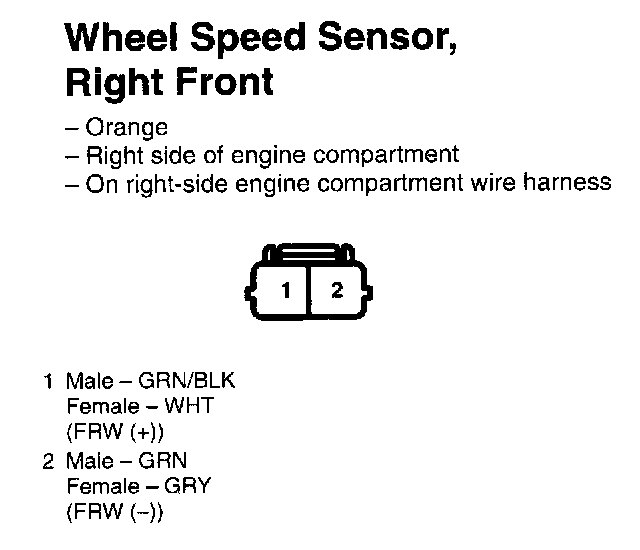

Wheel Speed Sensor, Right Front:

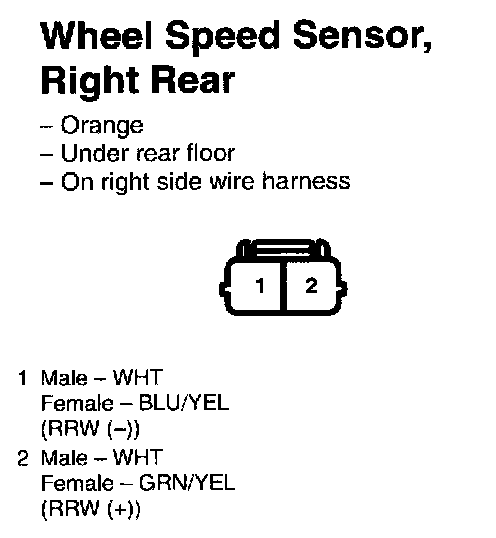

Wheel Speed Sensor, Right Rear:
