Home
>>
Acura
>>
2001
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Motor
Windshield Washer Motor

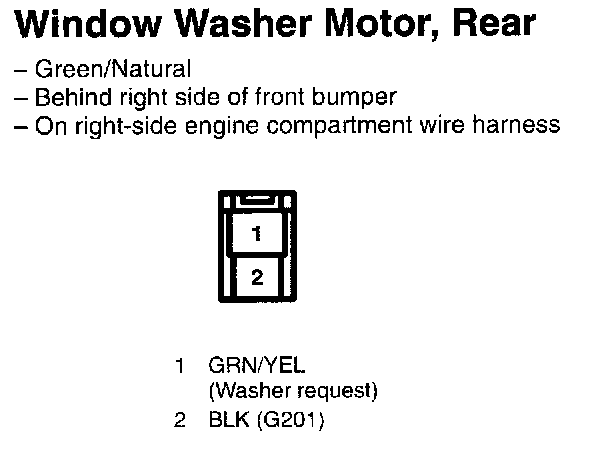

Window Washer Motor, Rear:

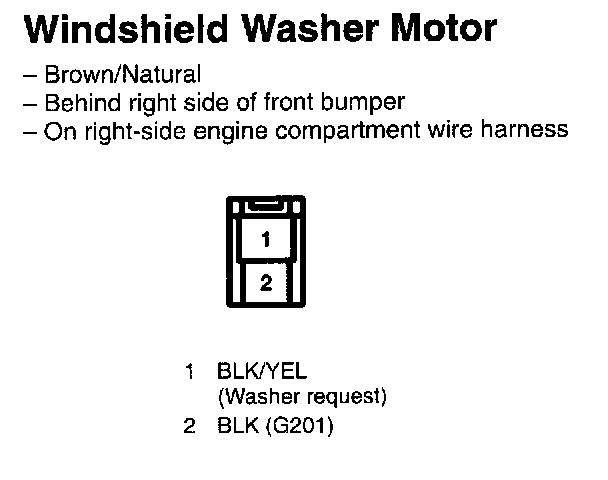

Windshield Washer Motor:
