Heating and Air Conditioning: Locations

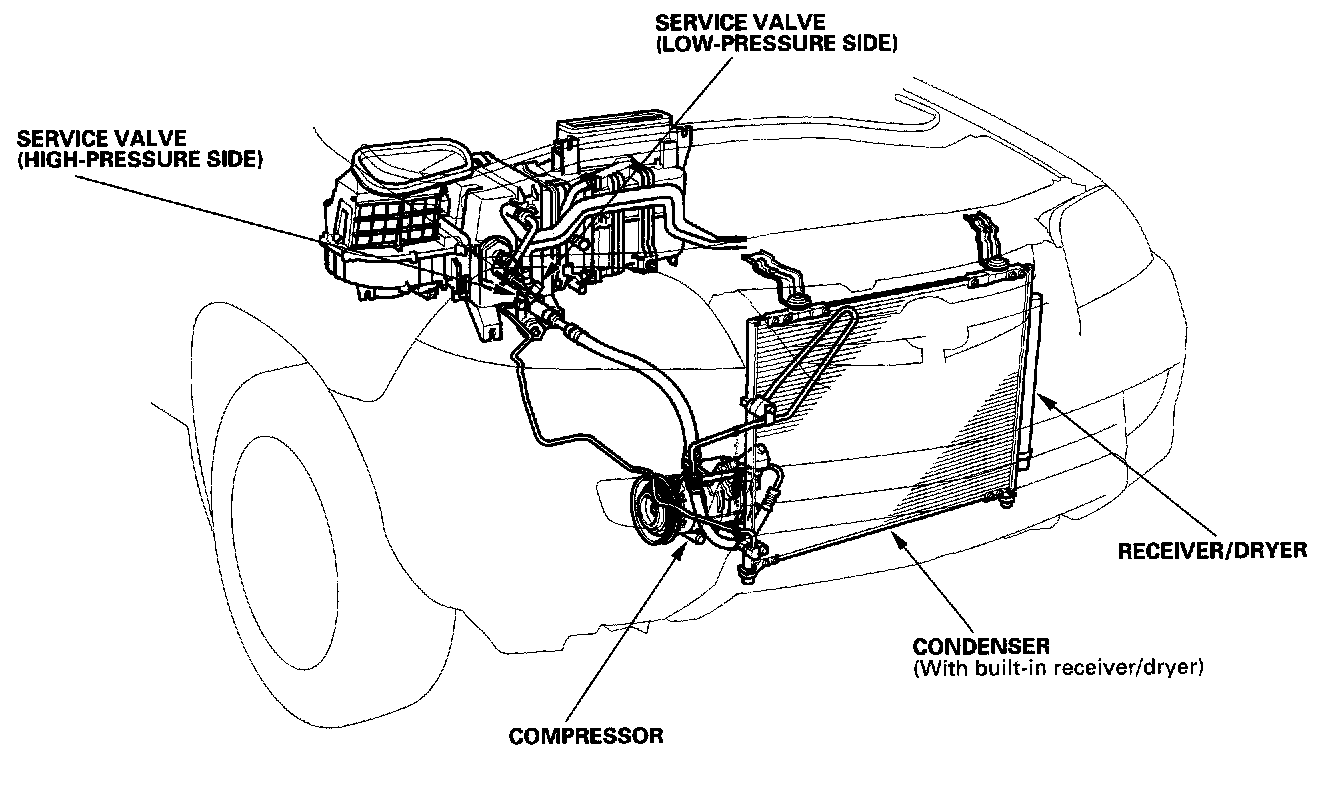

Climate Control - Component Location Index Part 1:

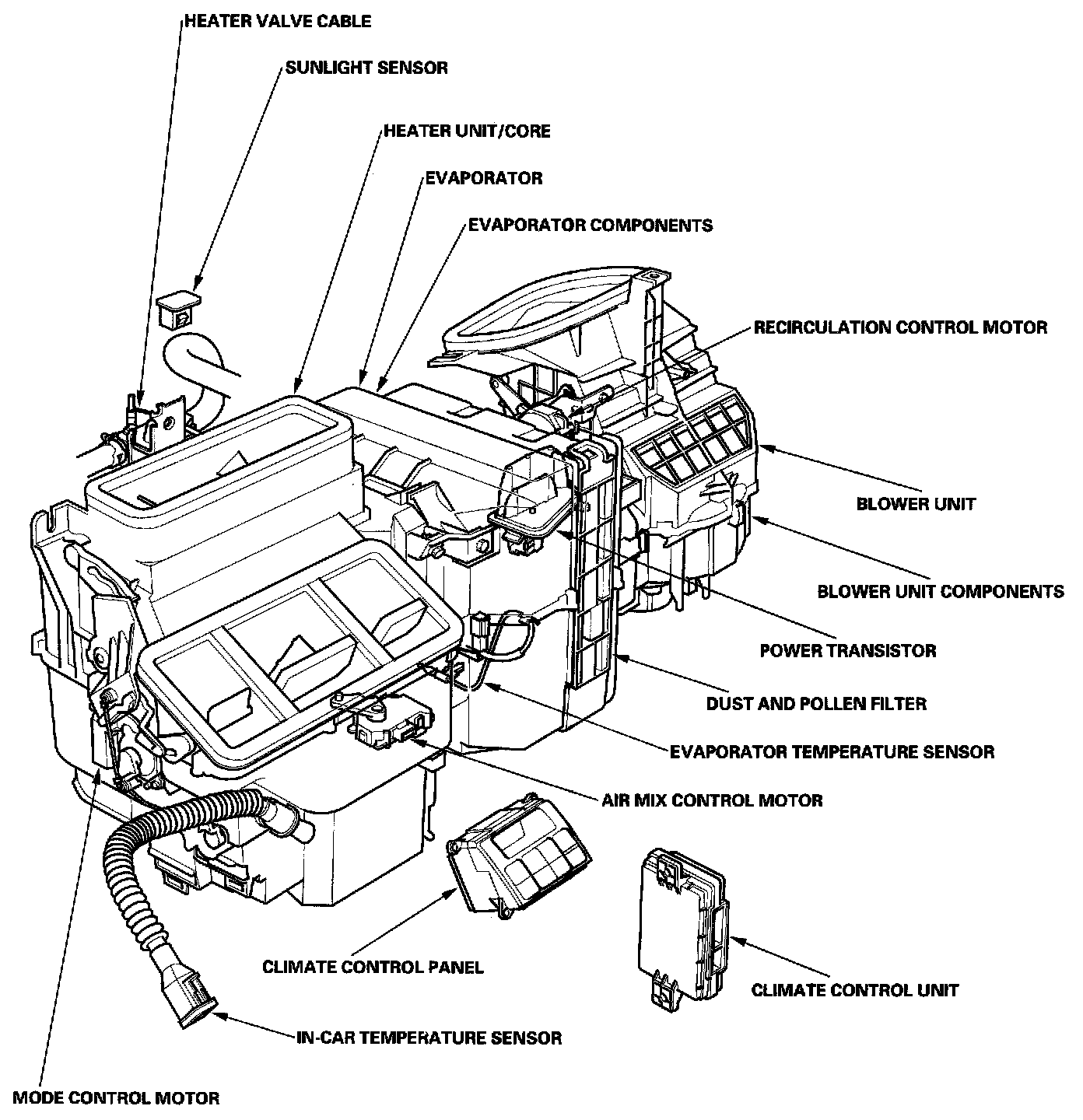

Climate Control - Component Location Index Part 2:

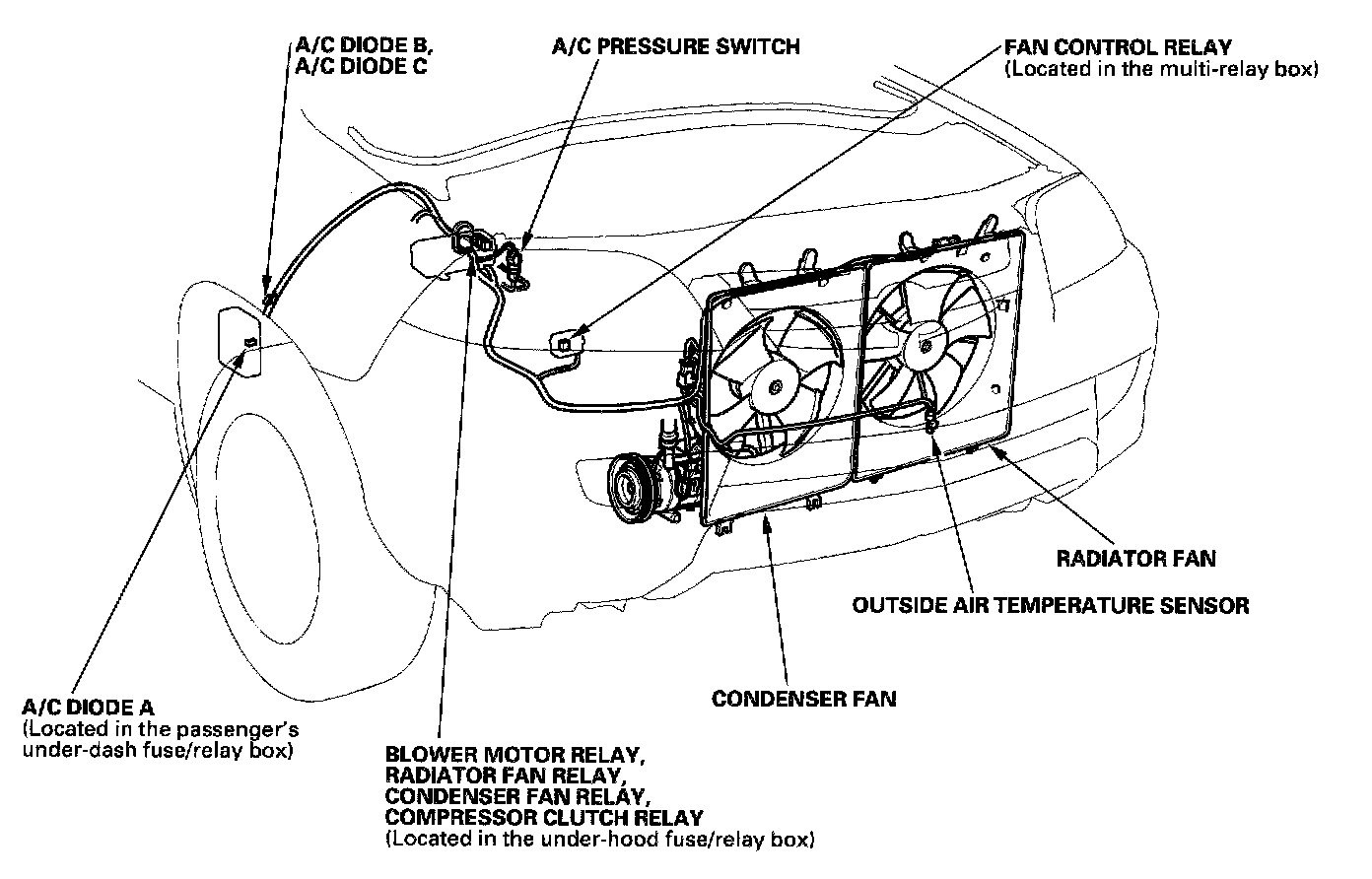

Climate Control - Component Location Index Part 3:

Rear Heater - A/C - Component Location Index:
