Home >> Acura >> 2001 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Locations >> Component Locations >> A - Z Component List >> Solenoids >> EVAP Canister Purge Valve

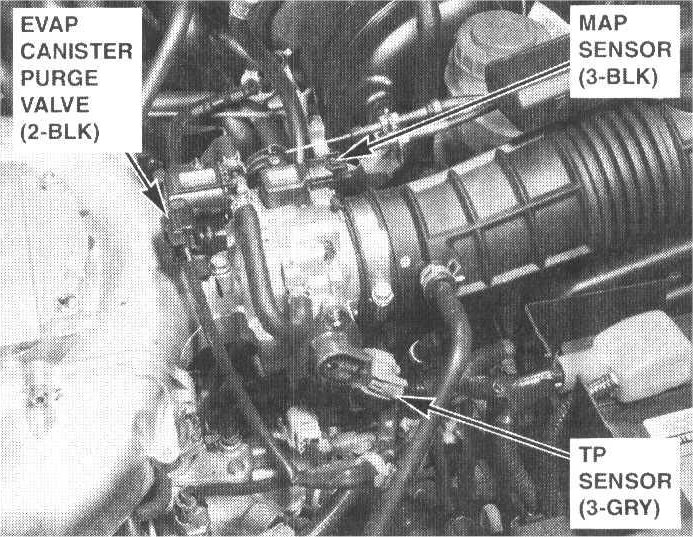

EVAP Canister Purge Valve

30. Middle of Engine Compartment:



Part 1:
