Auxiliary Power Outlet: Locations

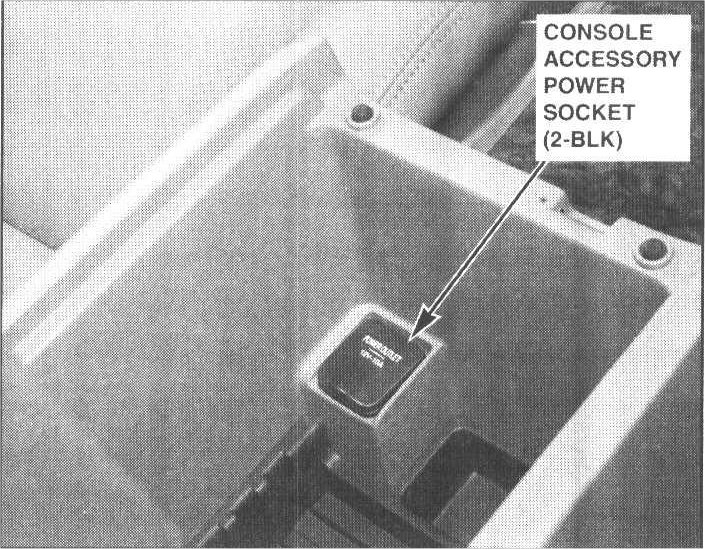

78. Behind Center Console:

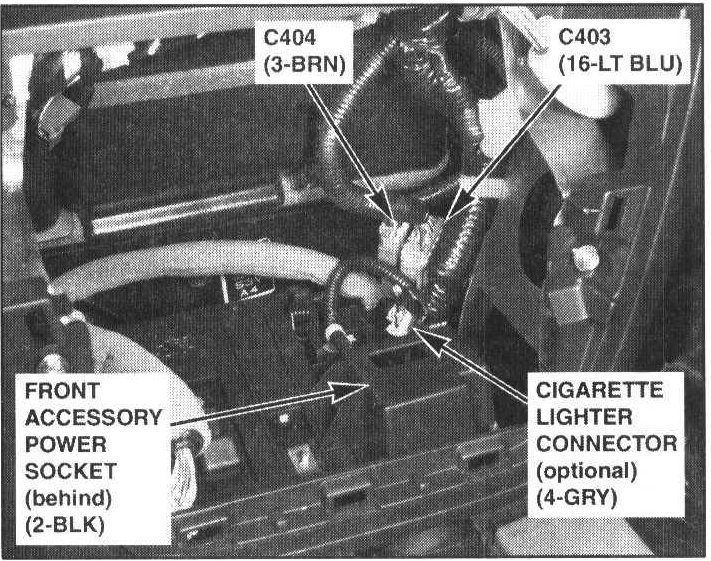

91. Under Middle of Dash:

152. Left Side of Cargo Area:

162. Right Side of Cargo Area:

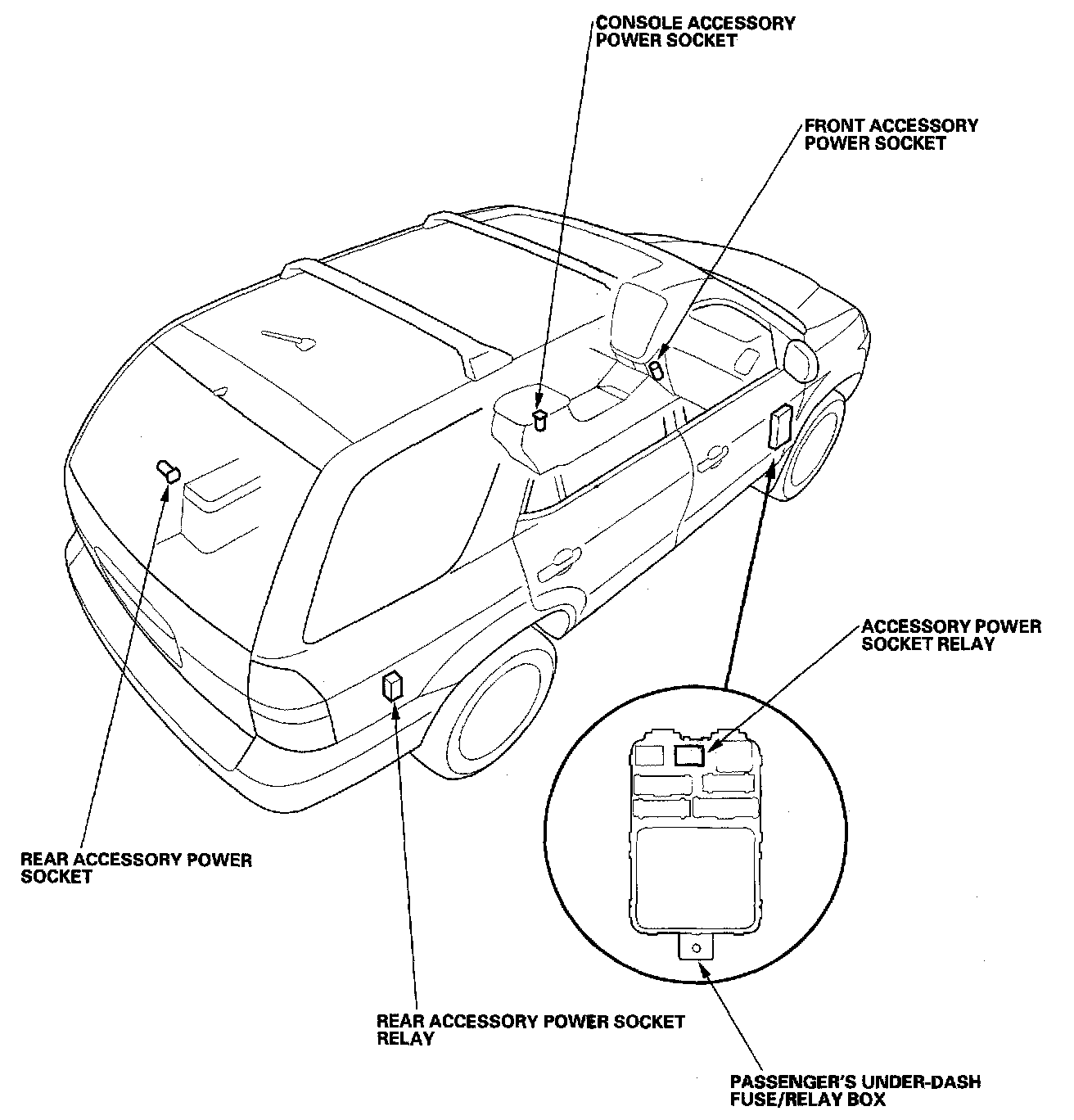

Accessory Power Sockets - Component Location Index:
