Pinout Values and Diagnostic Parameters

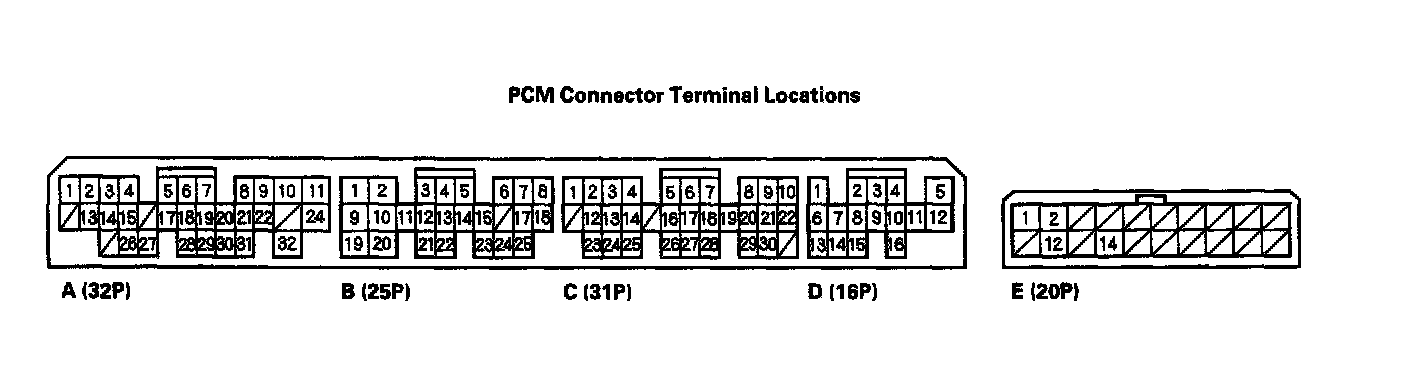

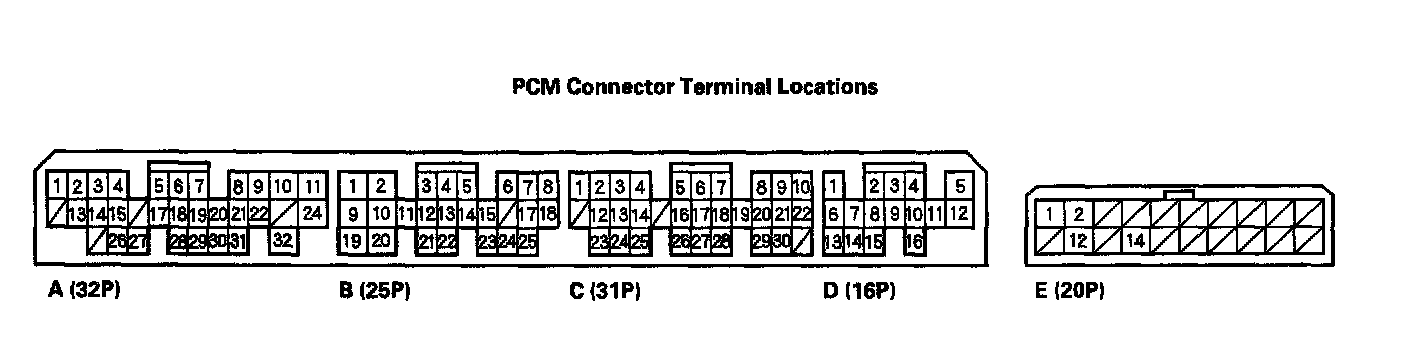

PCM Terminal Connections

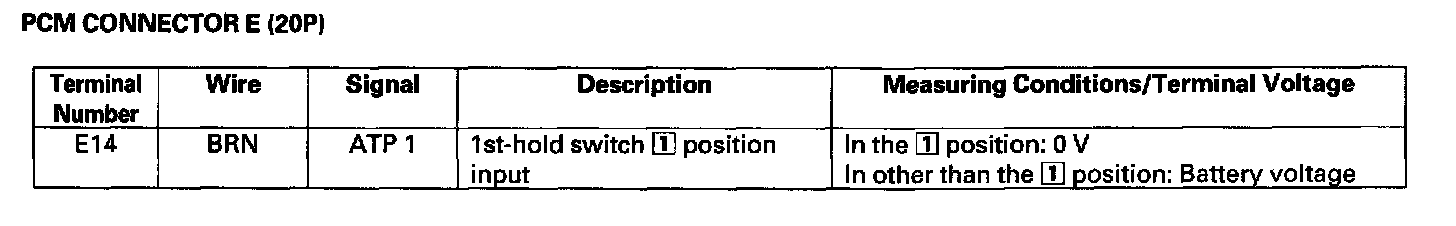

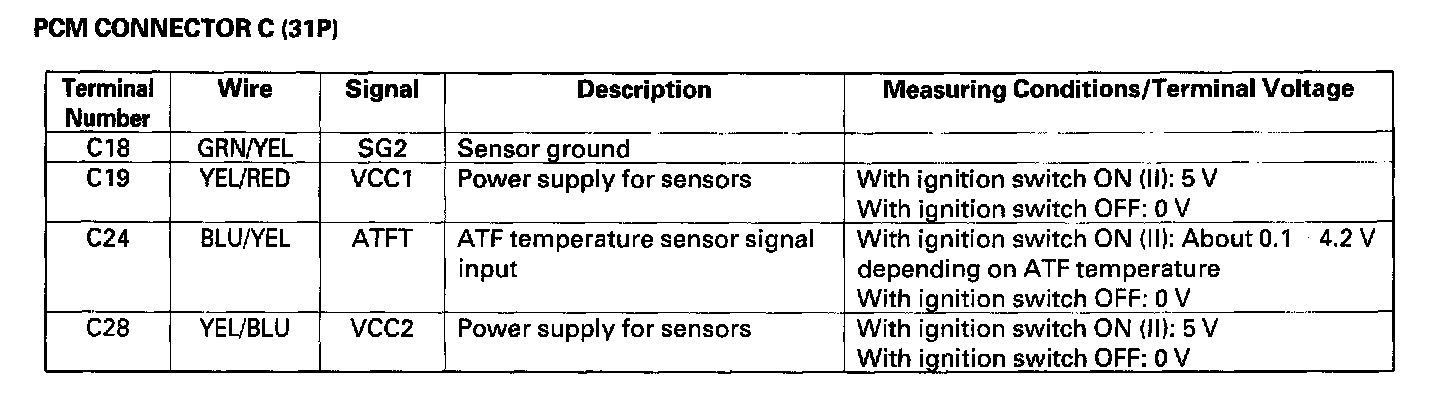

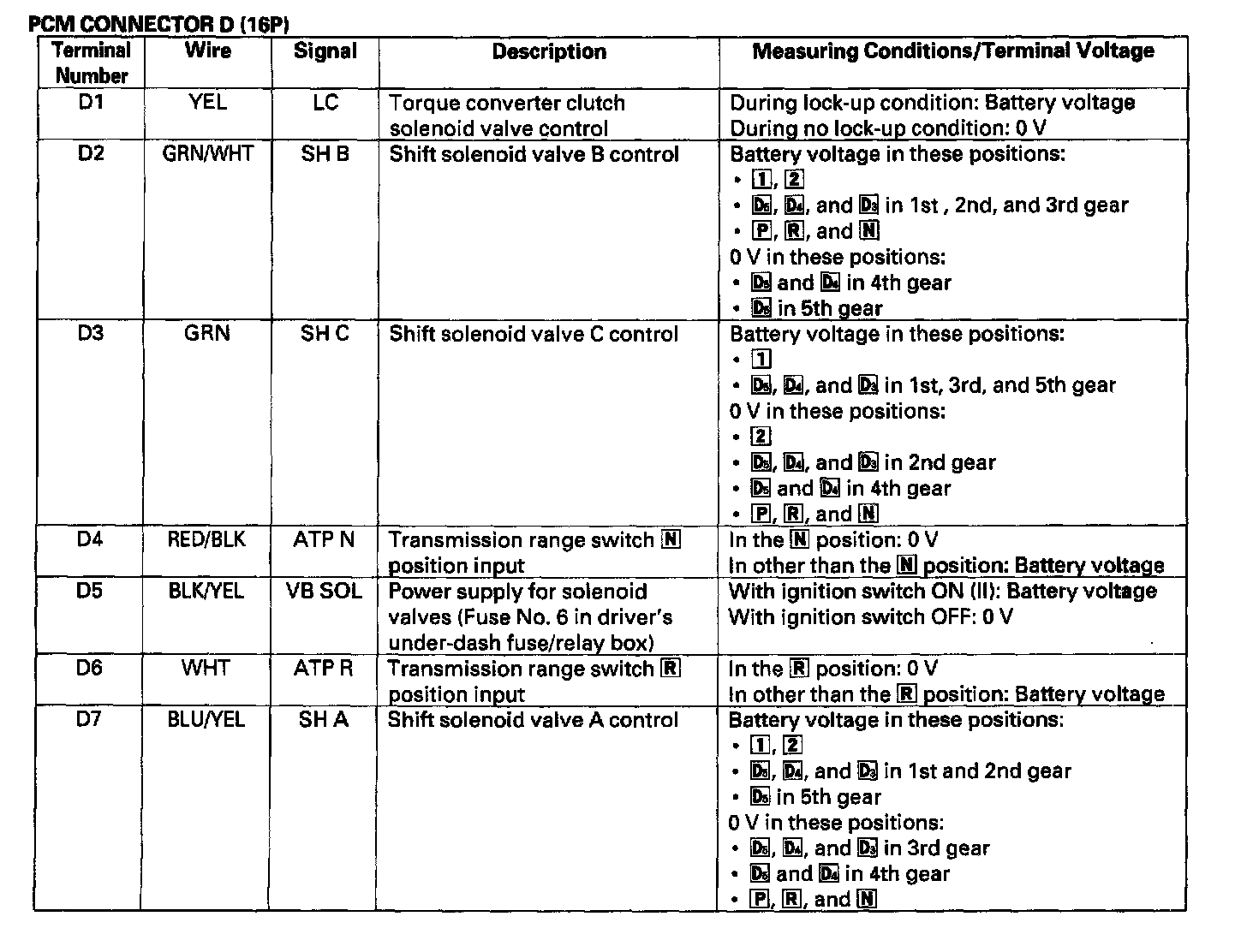

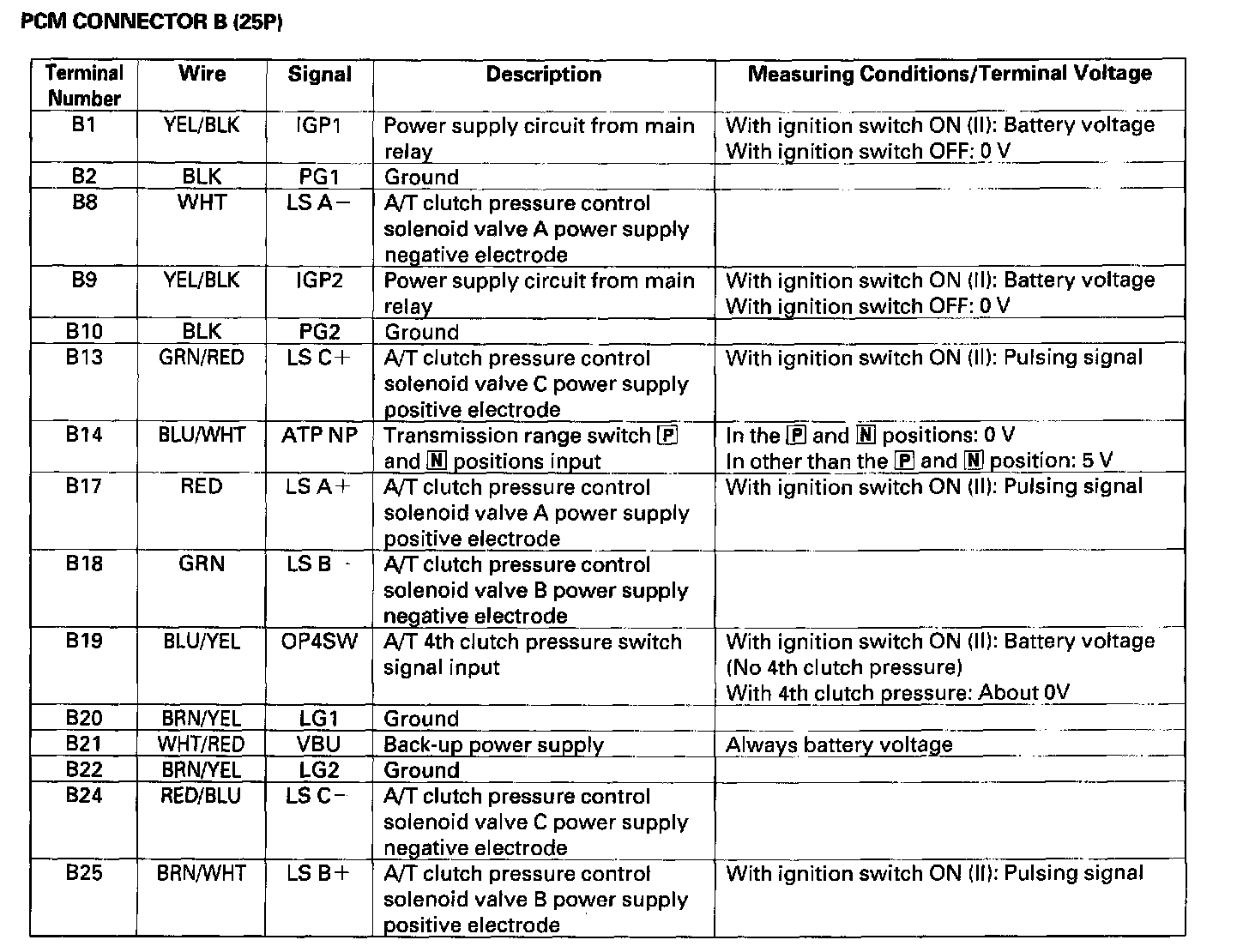

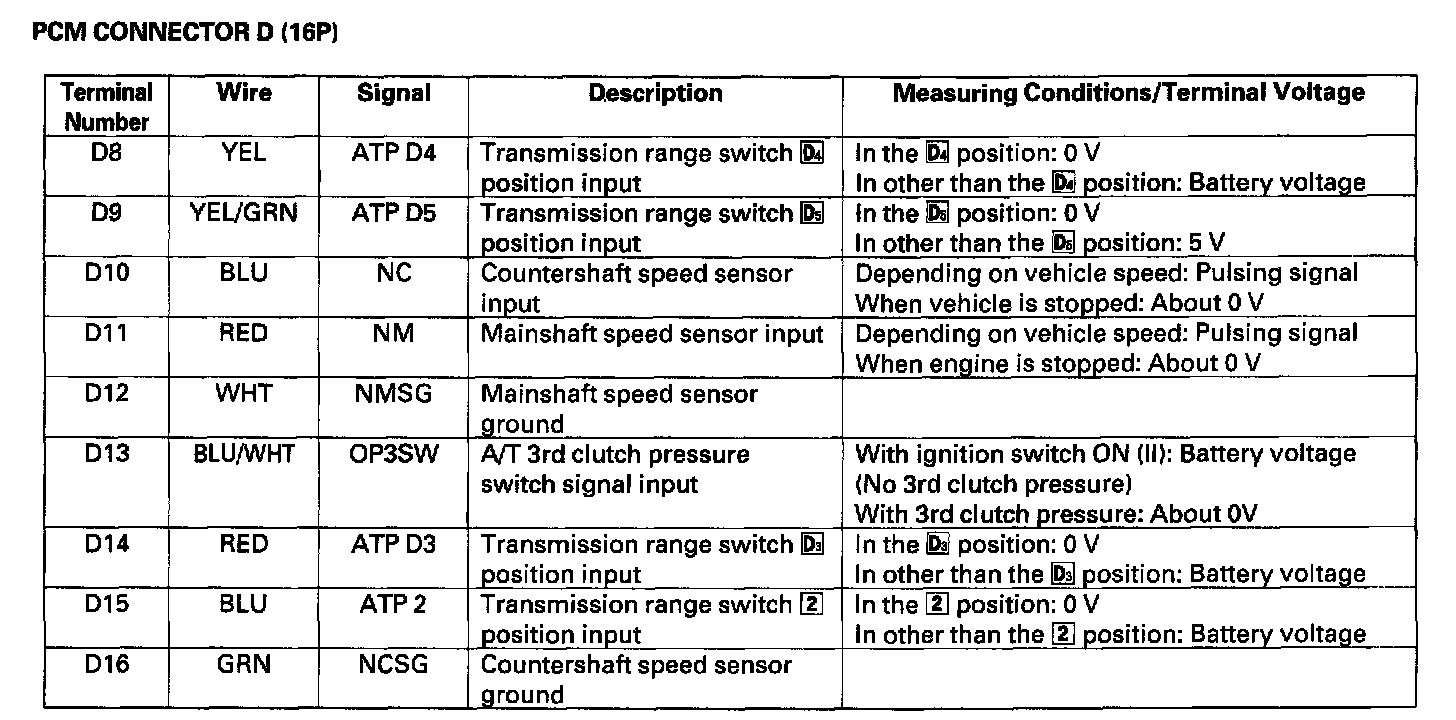

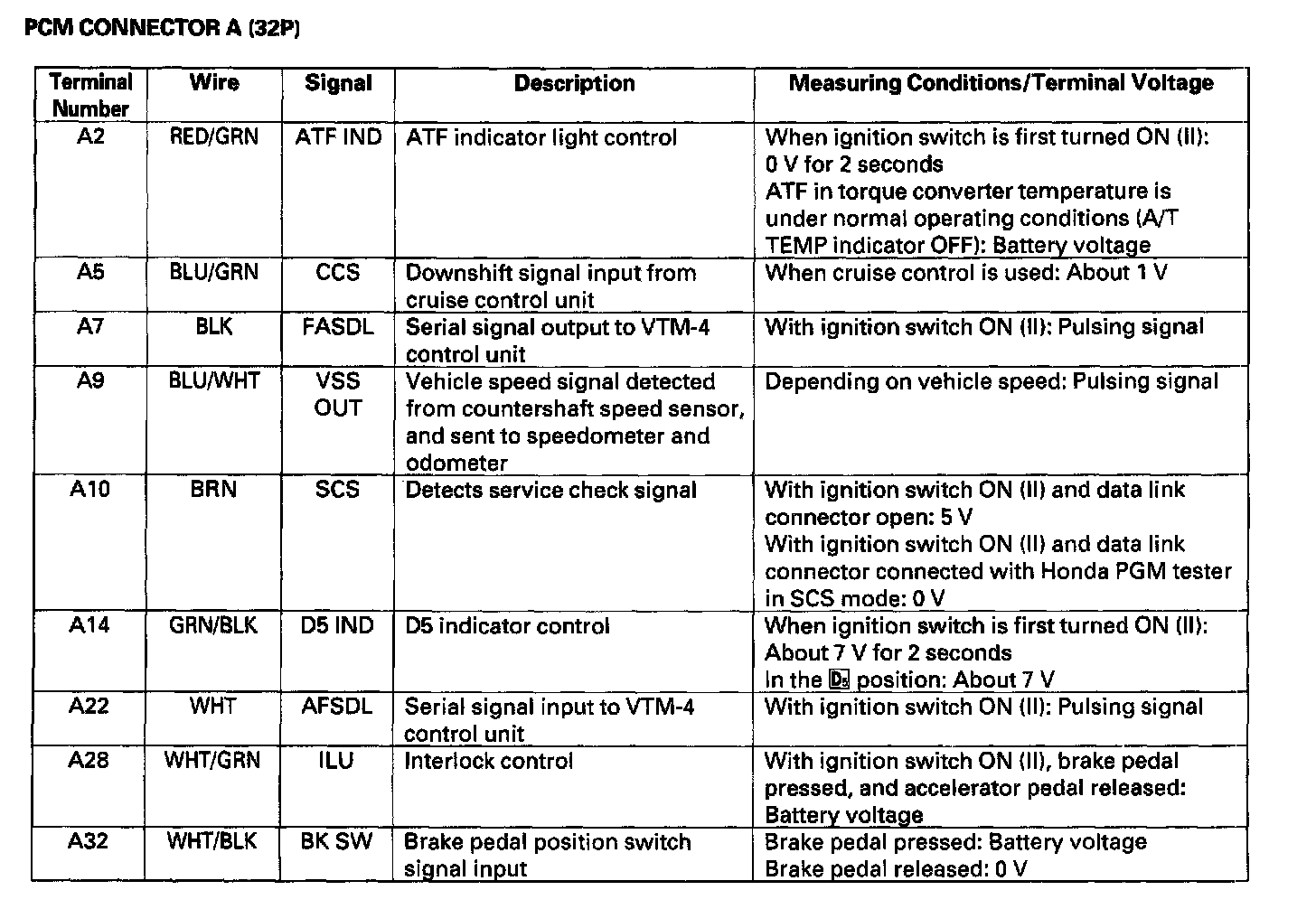

PCM Inputs and Outputs














The PCM terminal voltage and measuring conditions for the A/T control system are shown.














PCM Inputs and Outputs
