Washer Fluid Level Switch: Service and Repair

1. Remove the right inner fender.

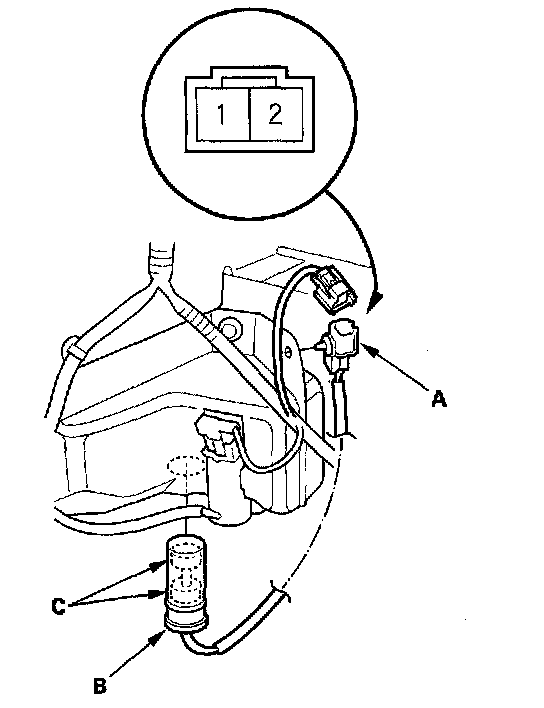

2. Disconnect the 2P connector (A) from the washer fluid level switch (B).
3. Check for continuity between the No. 1 and No. 2 terminals in each float switch position (C).
- There should be continuity when the float is down.
- There should be no continuity when the float is up.

4. If the switch is faulty, pull the switch out of the reservoir and replace it.
