Throttle Control Actuator: Service and Repair

VSA-TCS Control Valve Assembly Replacement

NOTE: Be careful not to damage the TCS control valve when handling the TCS control valve assembly.

1. Remove the battery.

2. Remove the intake air duct (A).

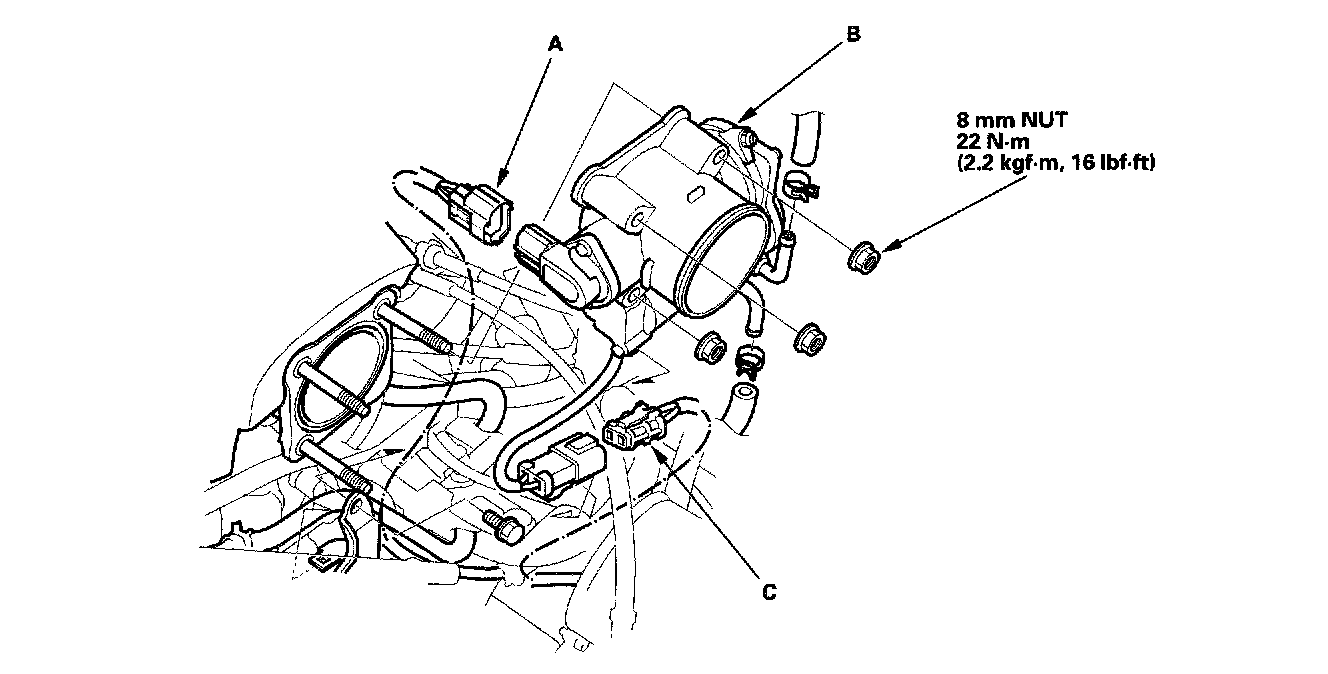

3. Disconnect the TCS control valve sensor 3P connector (A) and TCS control valve actuator 2P connector (C), then remove the TCS control valve assembly.
4. Install the TCS control valve assembly in the reverse order of removal.
