General Specifications

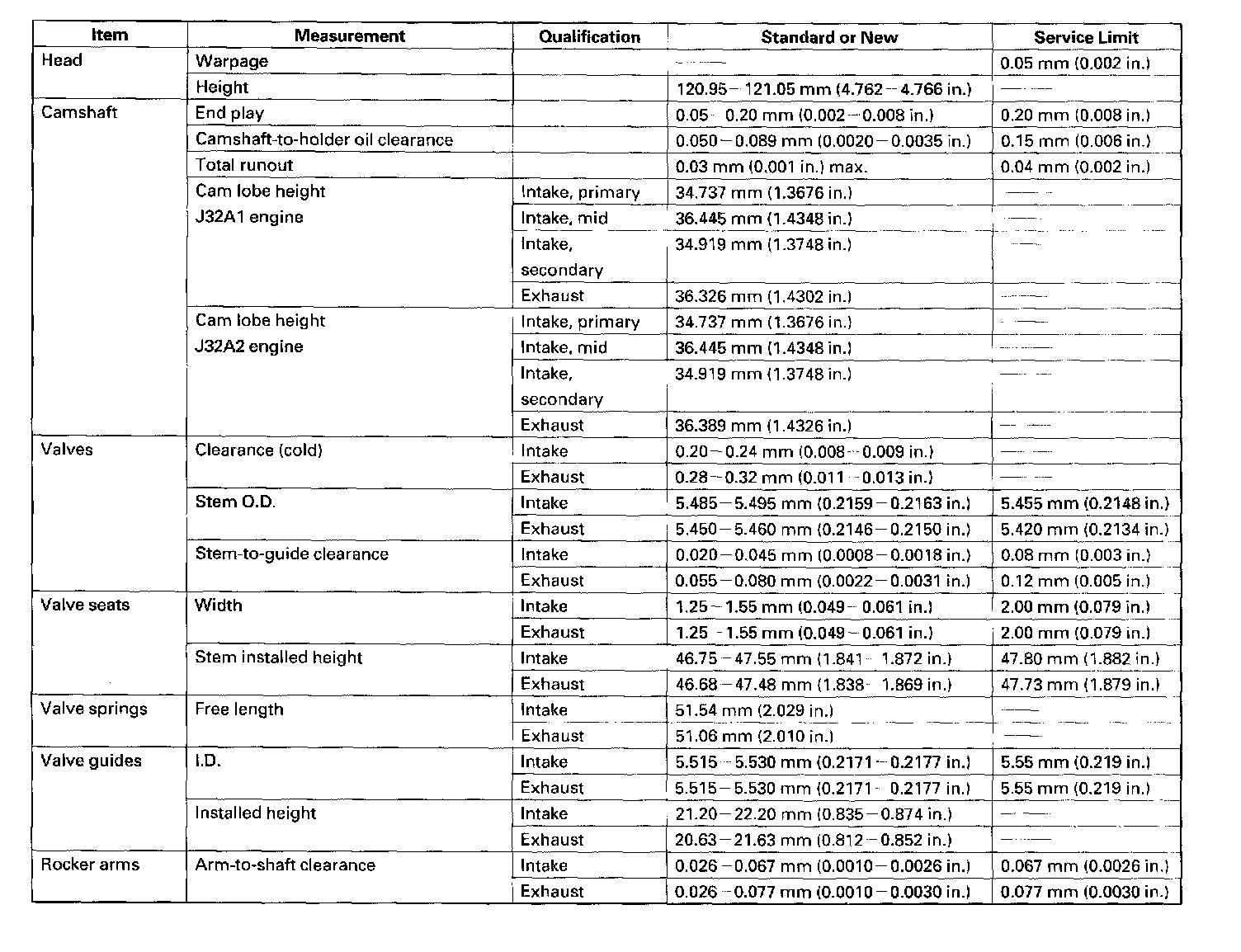

Cylinder Head Specifications:

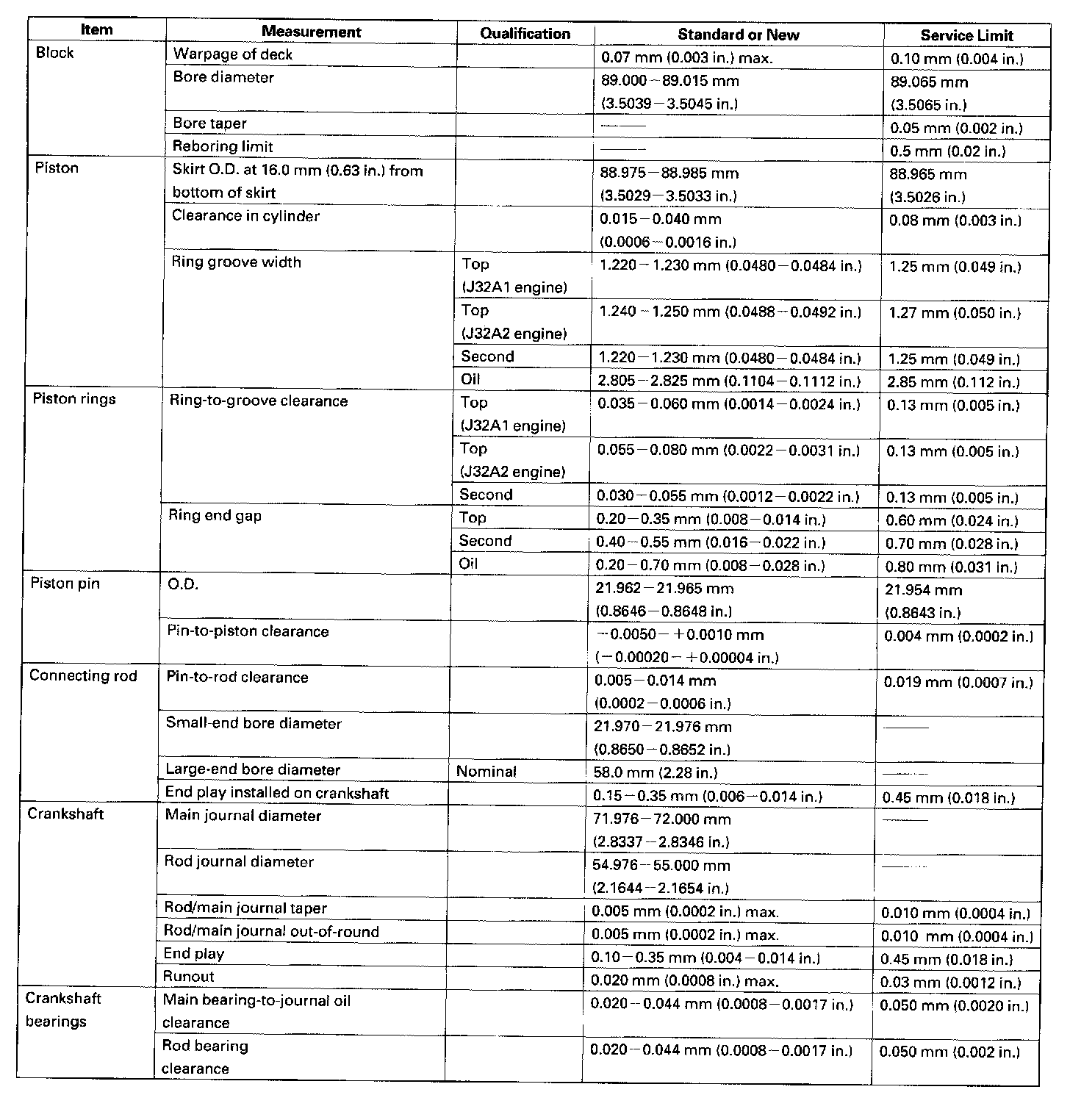

Cylinder Block Specifications:

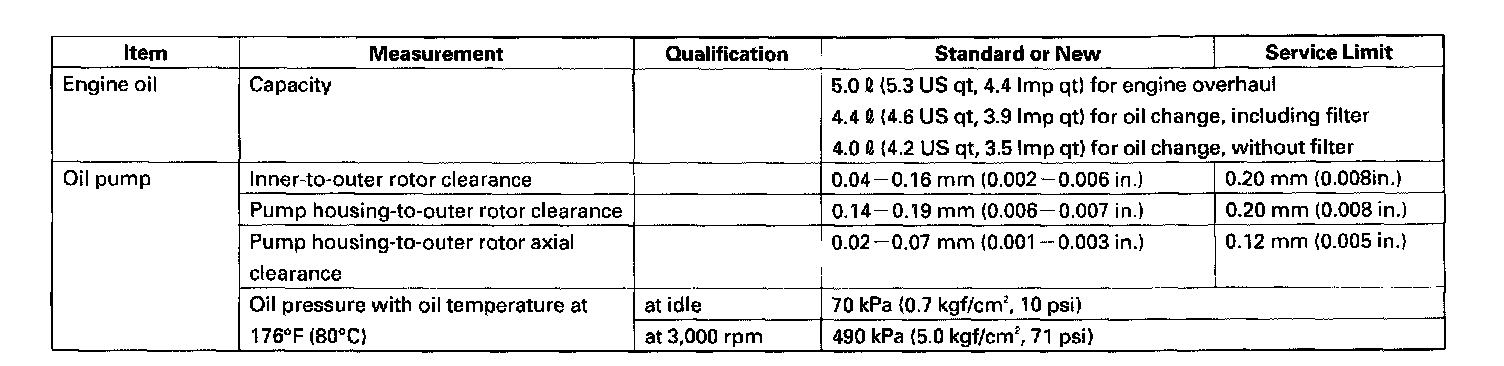

Engine Lubrication:

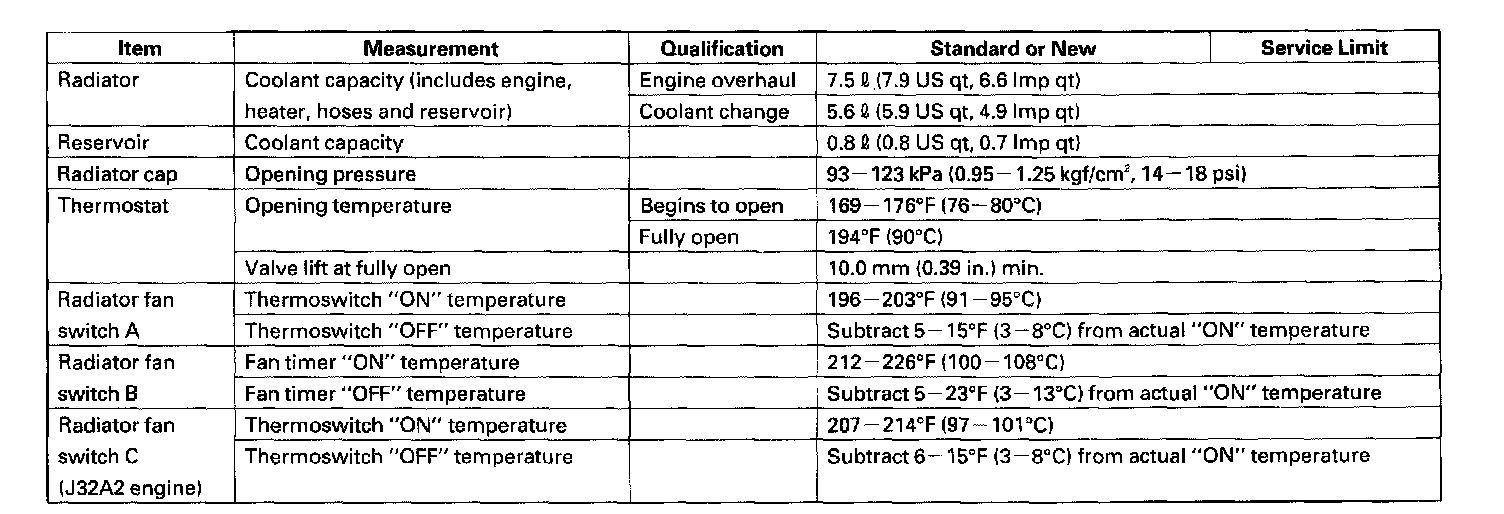

Engine Cooling System:

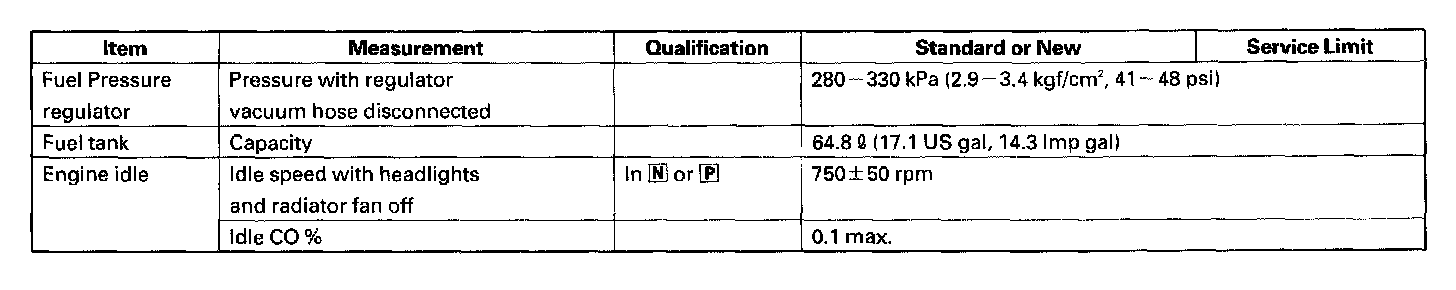

Fuel System:

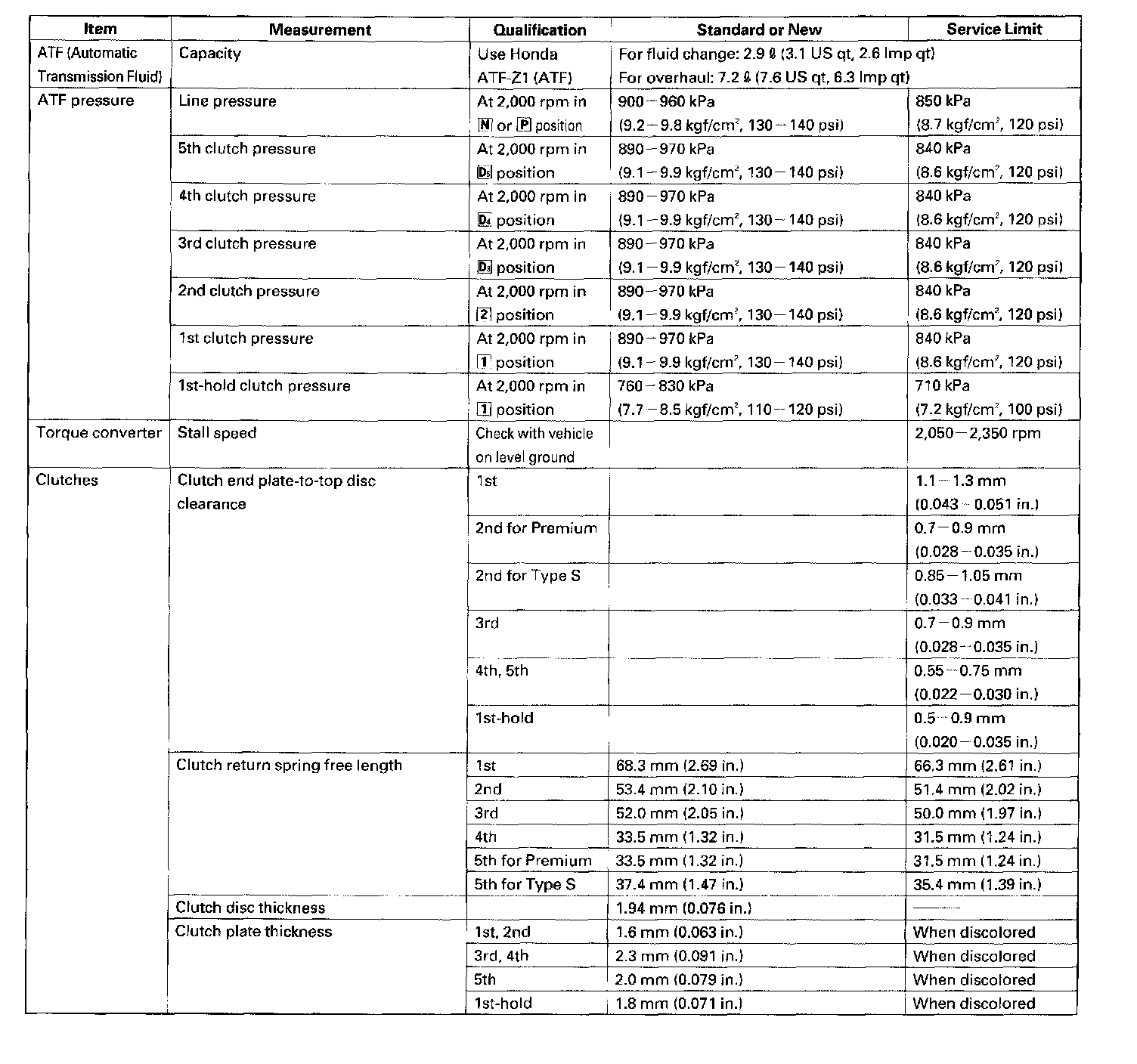

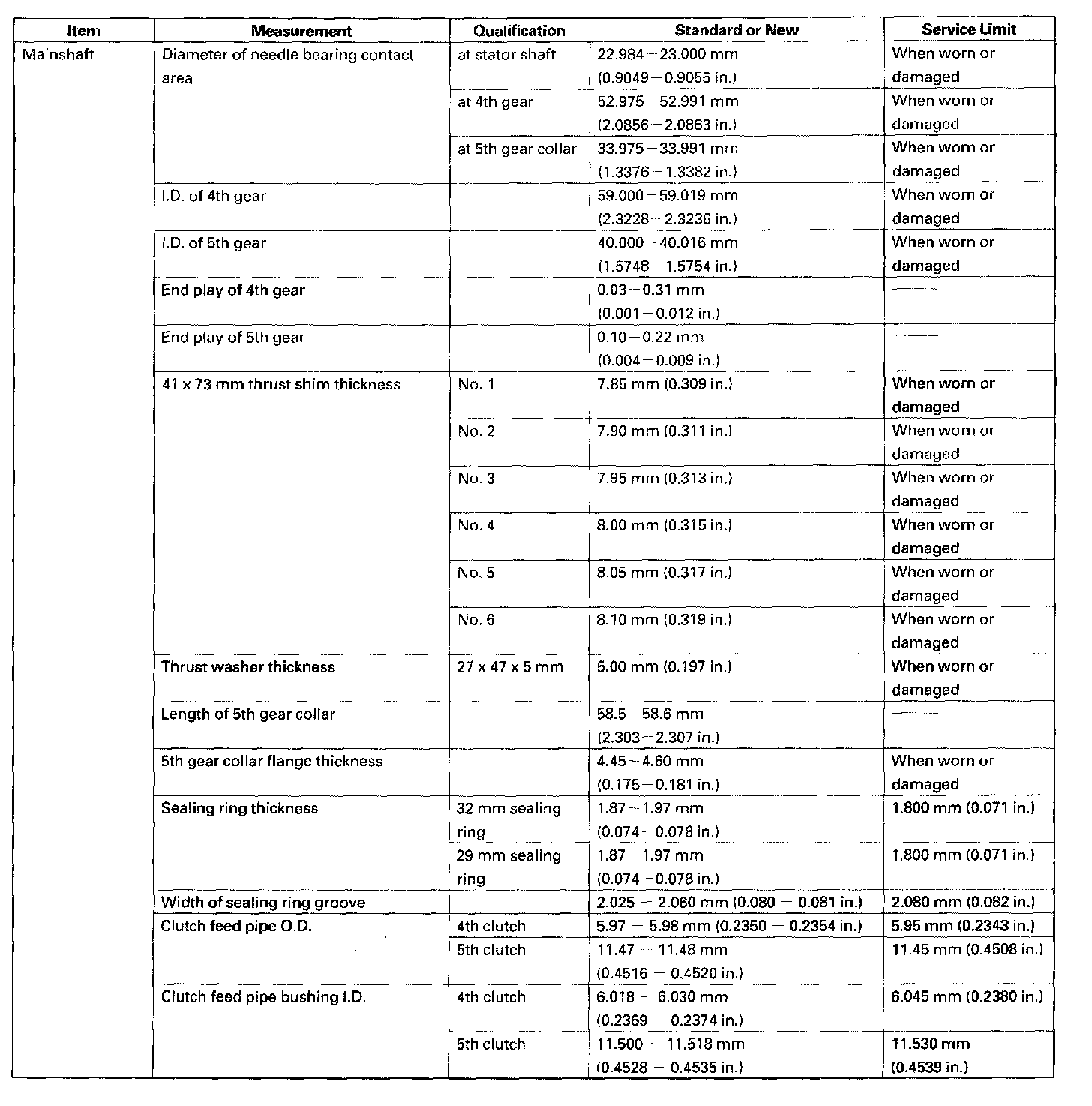

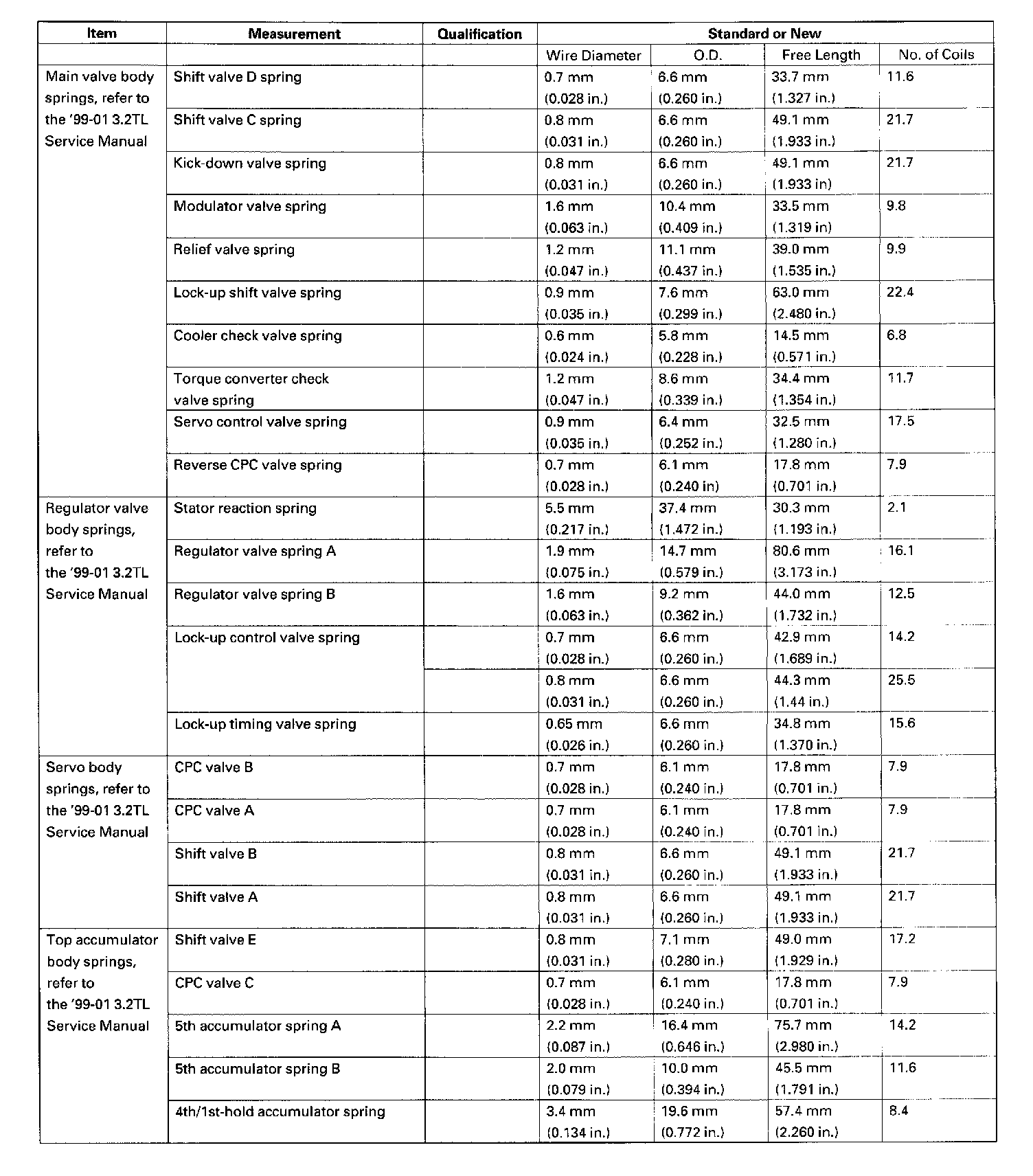

5 Speed Automatic Transmission Specifications:

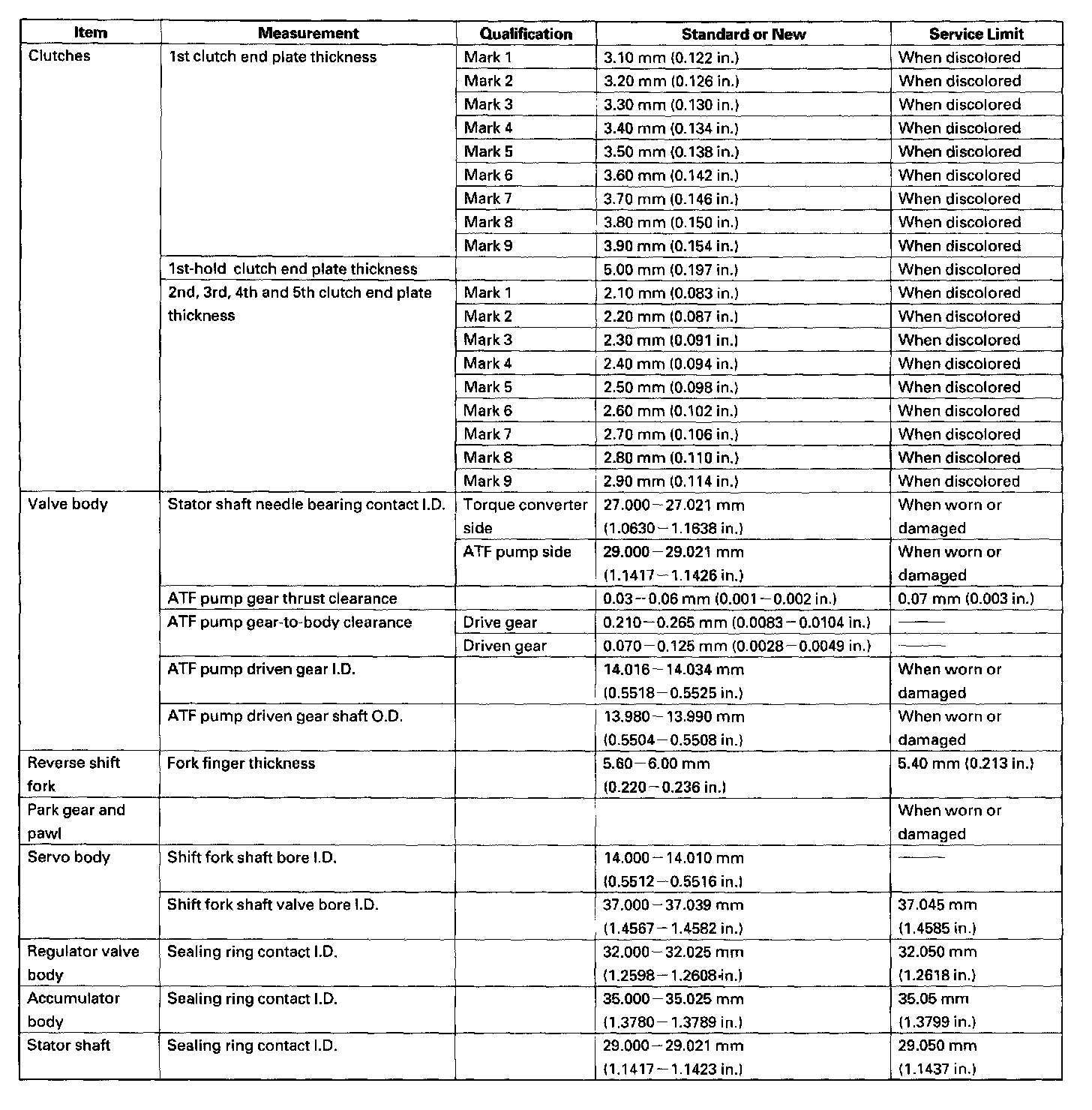

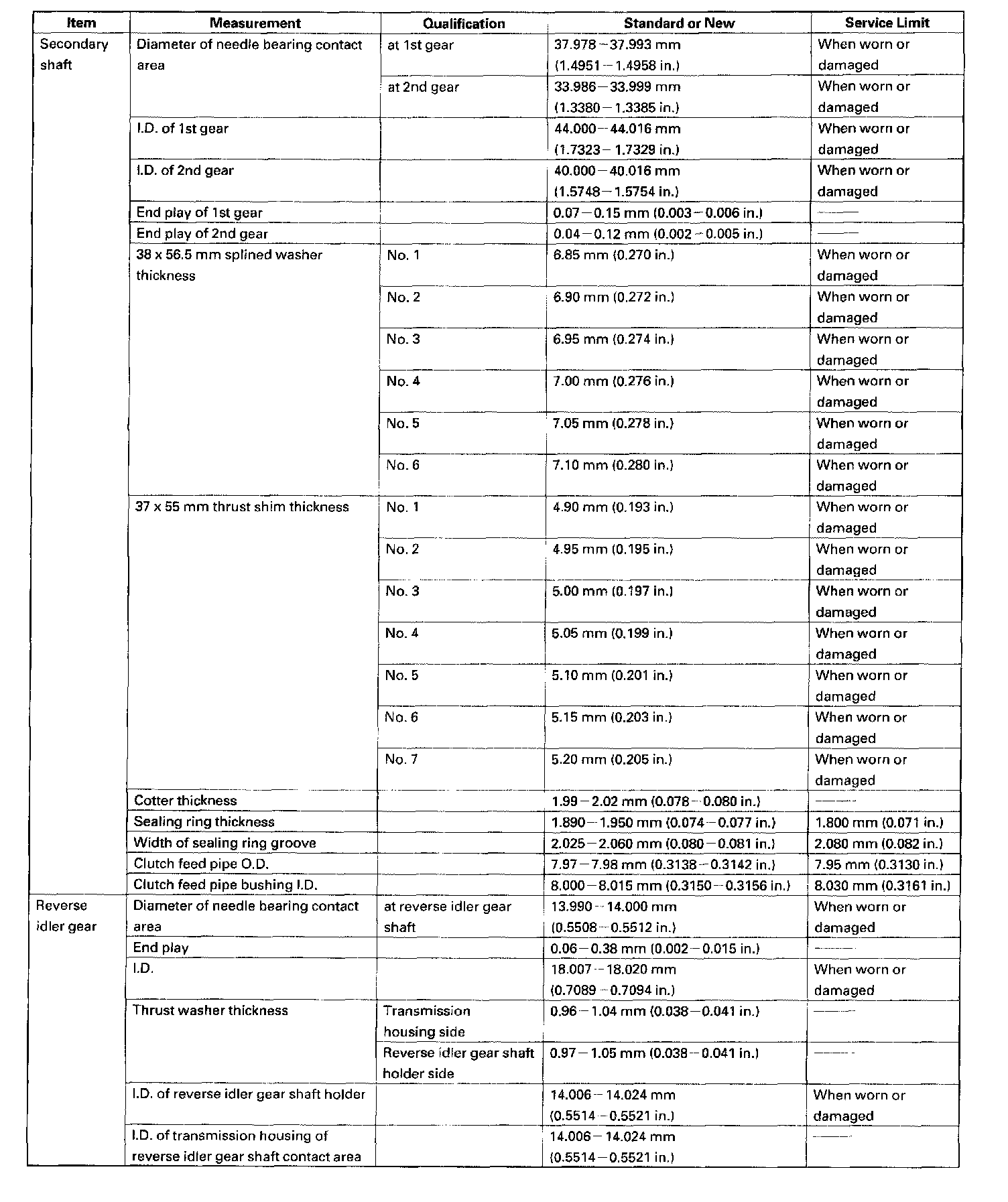

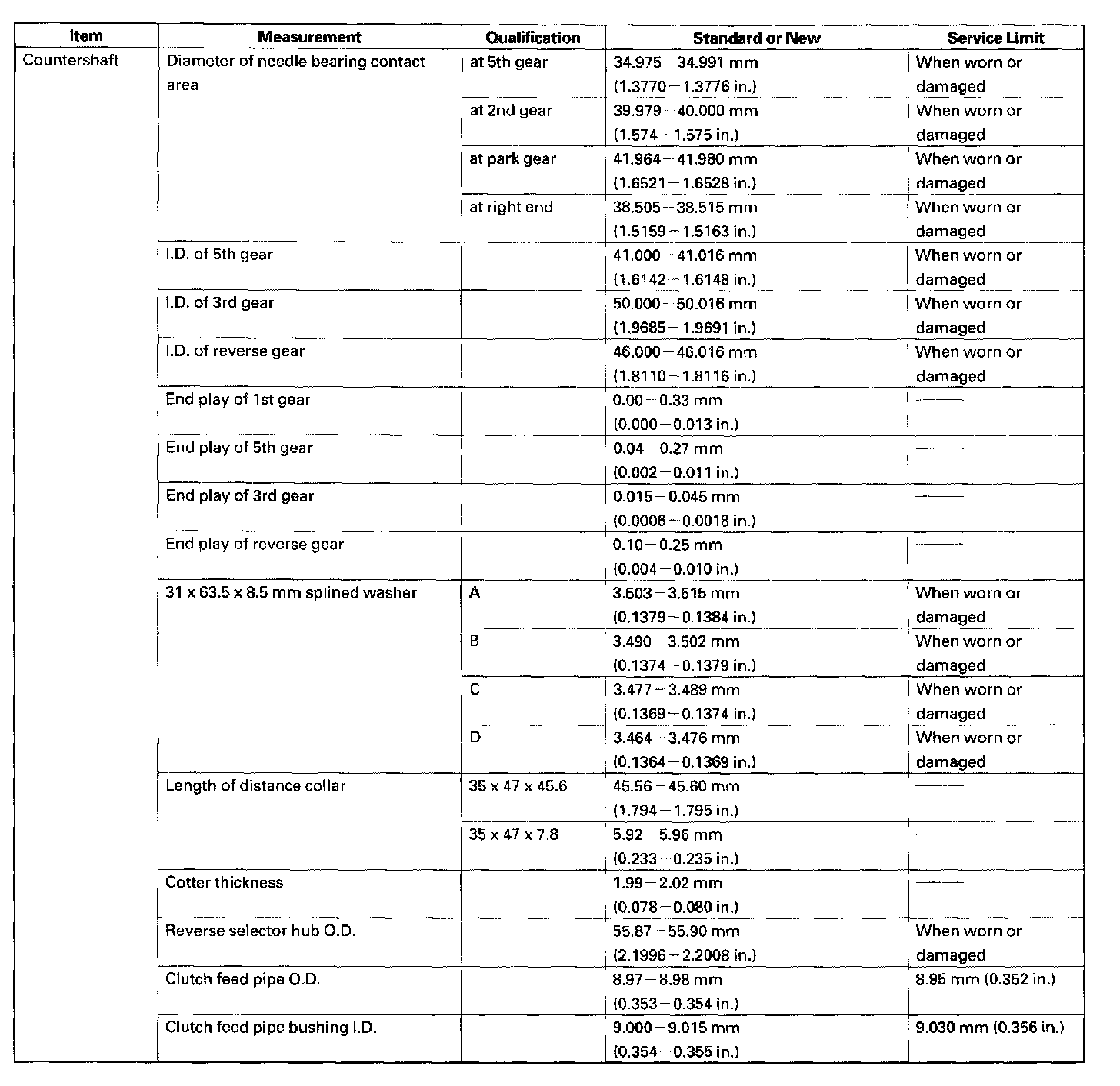

Continued:




Continued:




Continued:

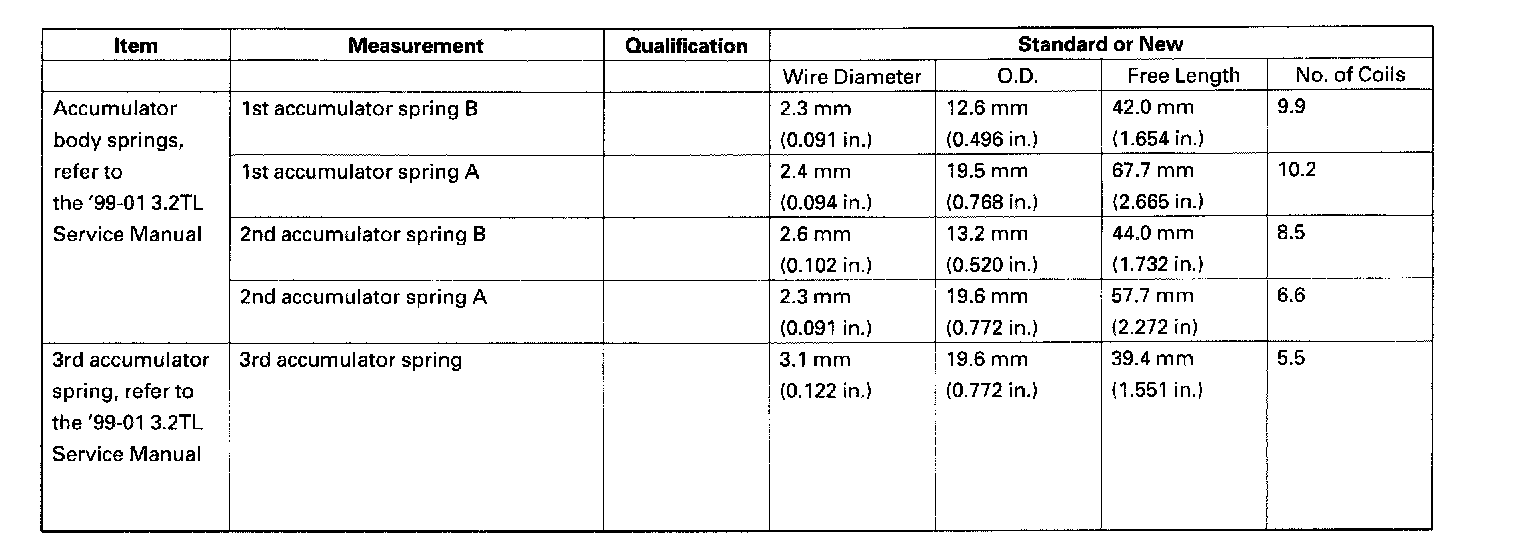

Accumulator Springs:

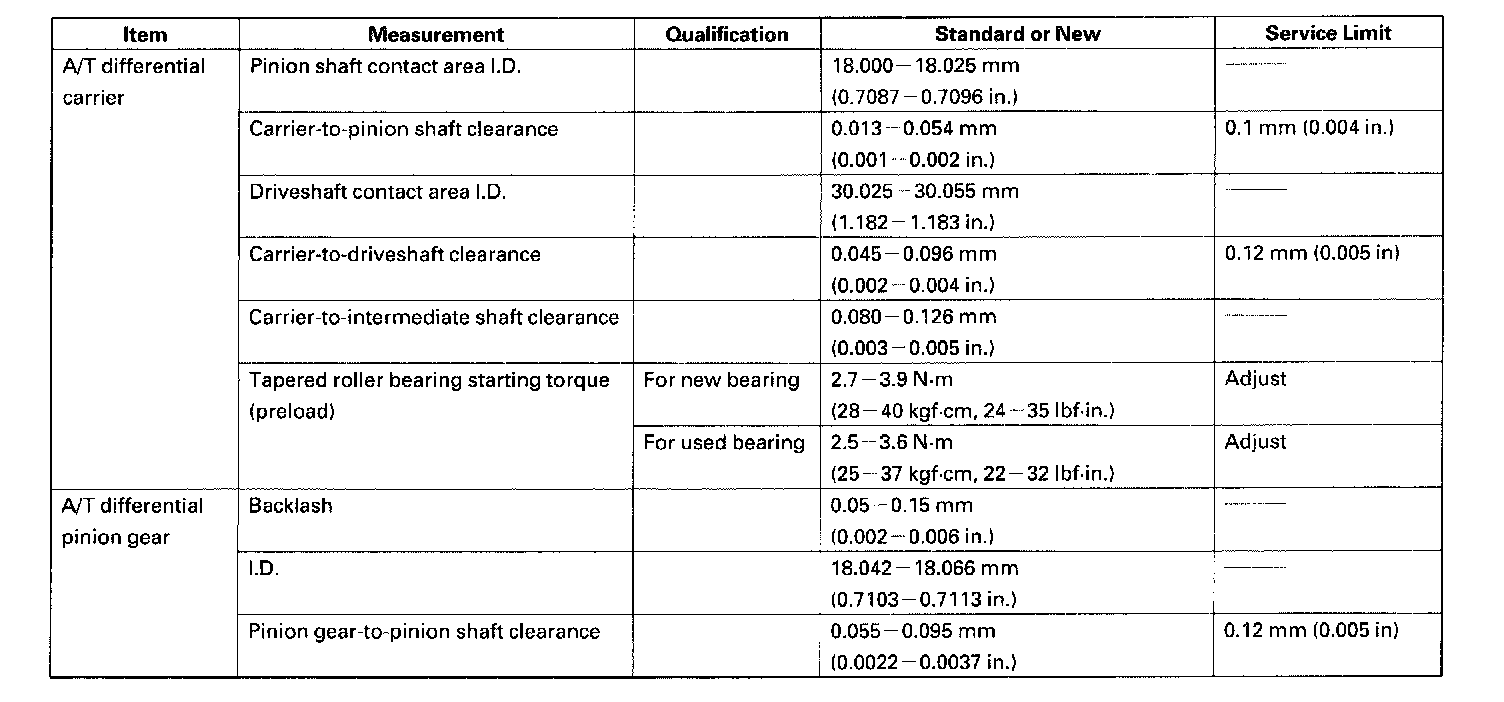

Automatic Transmission Differential Carrier:

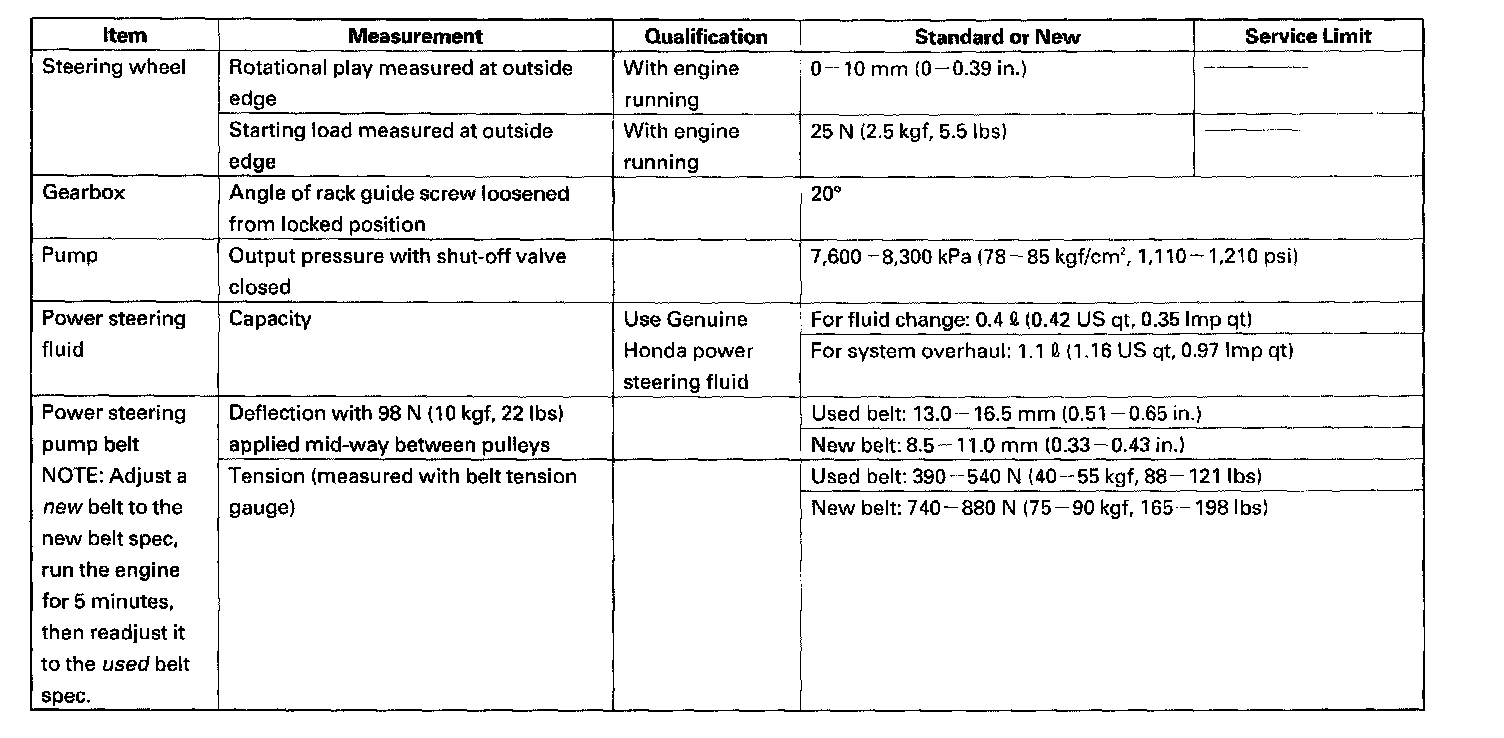

Steering Specifications:




Alignment:

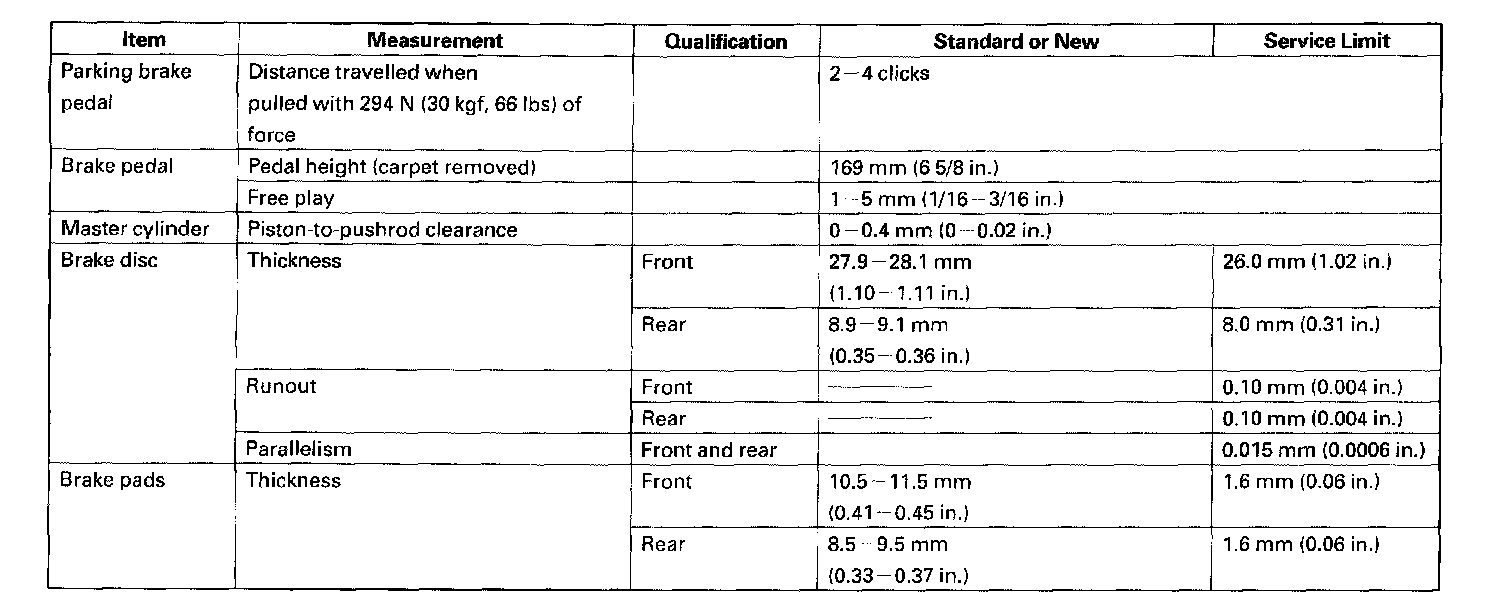

Brake Specifications:

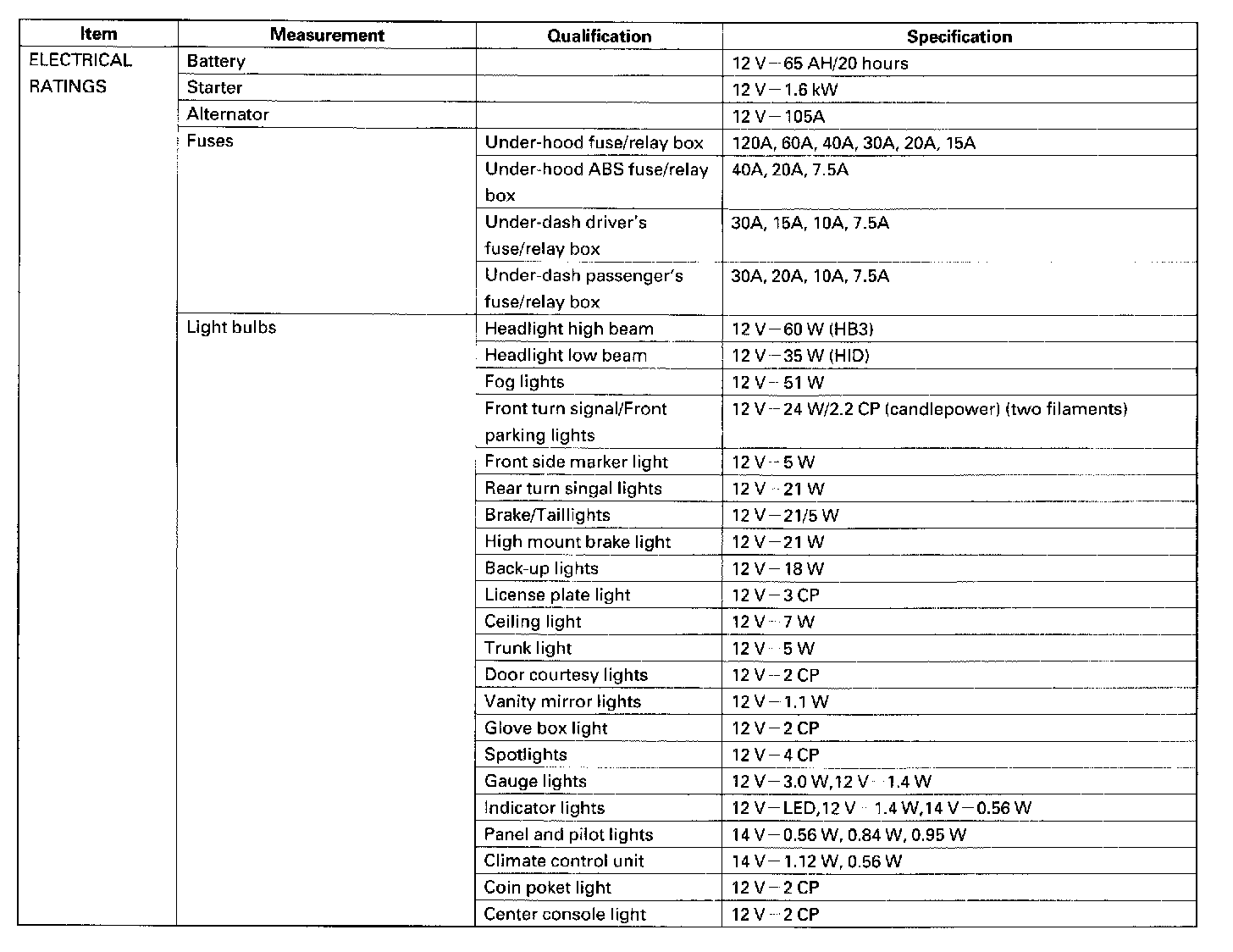

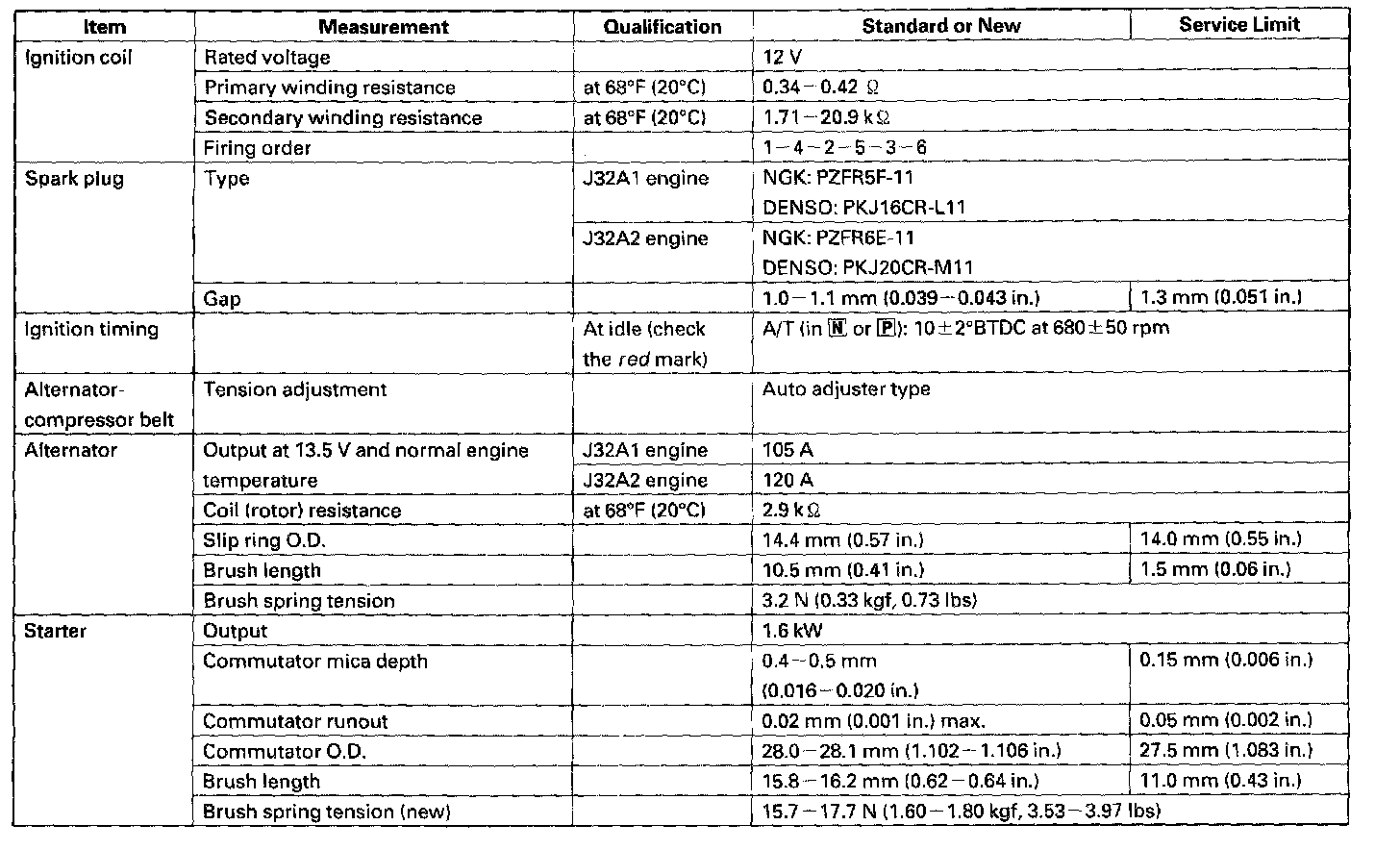

Electrical:
