Trunk/Liftgate Sensor/Switch (For Alarm): Testing and Inspection

1. Open the trunk lid, then remove the trunk lid inner trim.

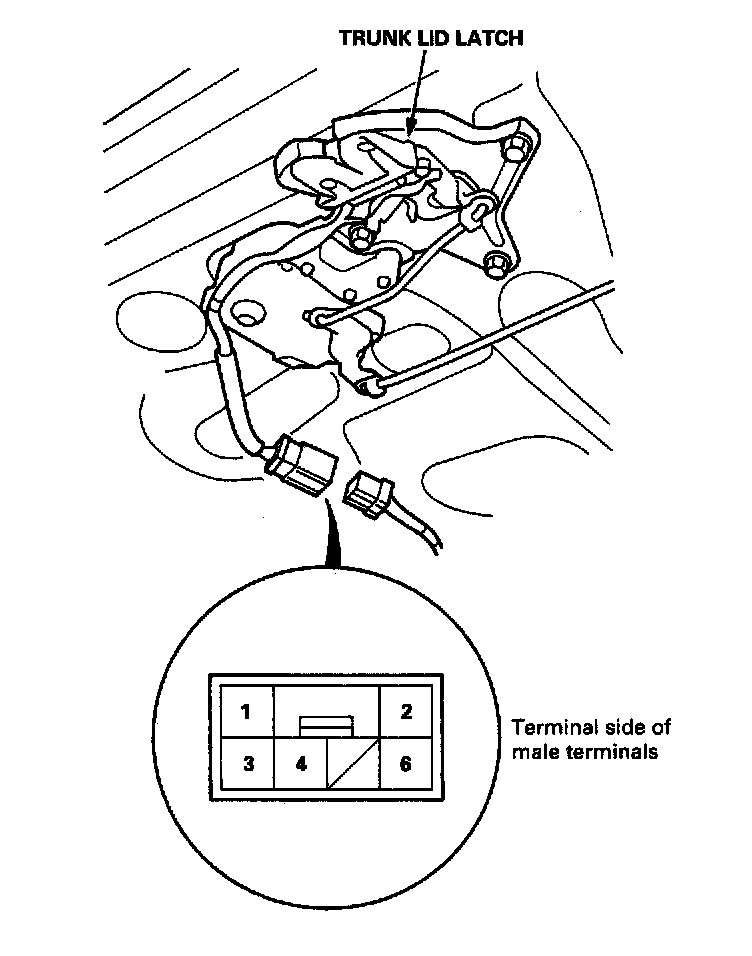

2. Disconnect the 6P connector from the trunk lid latch.
3. Check continuity between the No.2 and No.6 terminals.
- There should be continuity with the trunk lid opened.
- There should be no continuity with the trunk lid latch in LOCK (trunk lid closed) position.
