Driver's Power Seat Position Sensor Test

Driver's Power Seat Position Sensor Test

CAUTION: Be careful not to damage the seat, interior trim or body.

1. Remove the driver's seat.

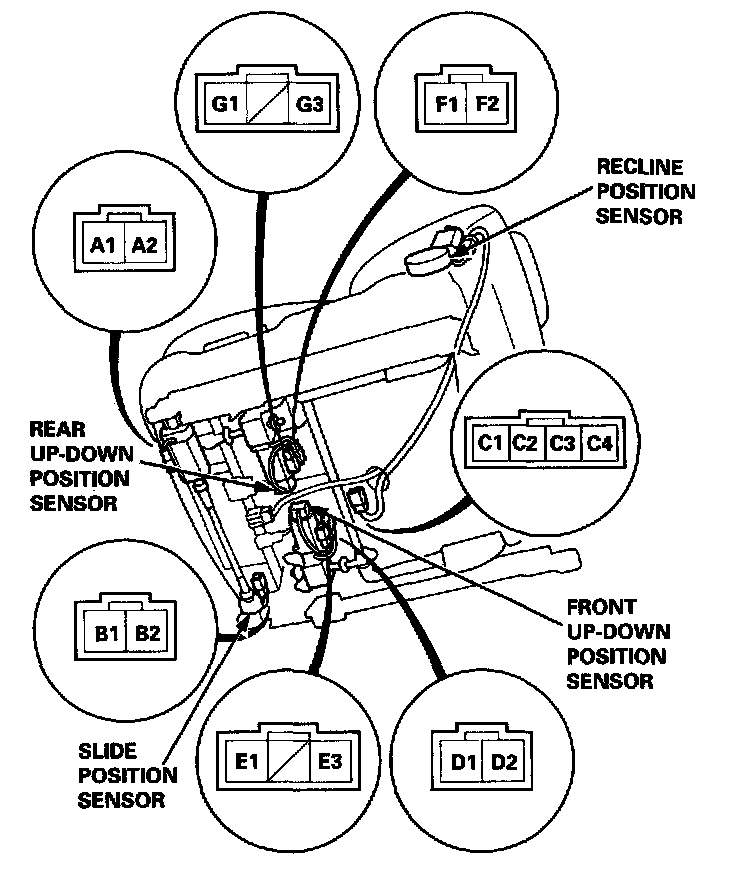

2. Disconnect the connector from each power seat memory sensor and motor.




3. Test the sensor by connecting power and ground to the motor, and connect an analog ohmmeter test leads to the sensor connector.

The needle in the ohmmeter should move from left to right.

CAUTION: When a motor stops running, disconnect power immediately.

NOTE: If a motor does not run, reverse power and ground. If the motor still does not run, replace the motor.
