Power Mirror Operation Test

1. Remove the door panel.

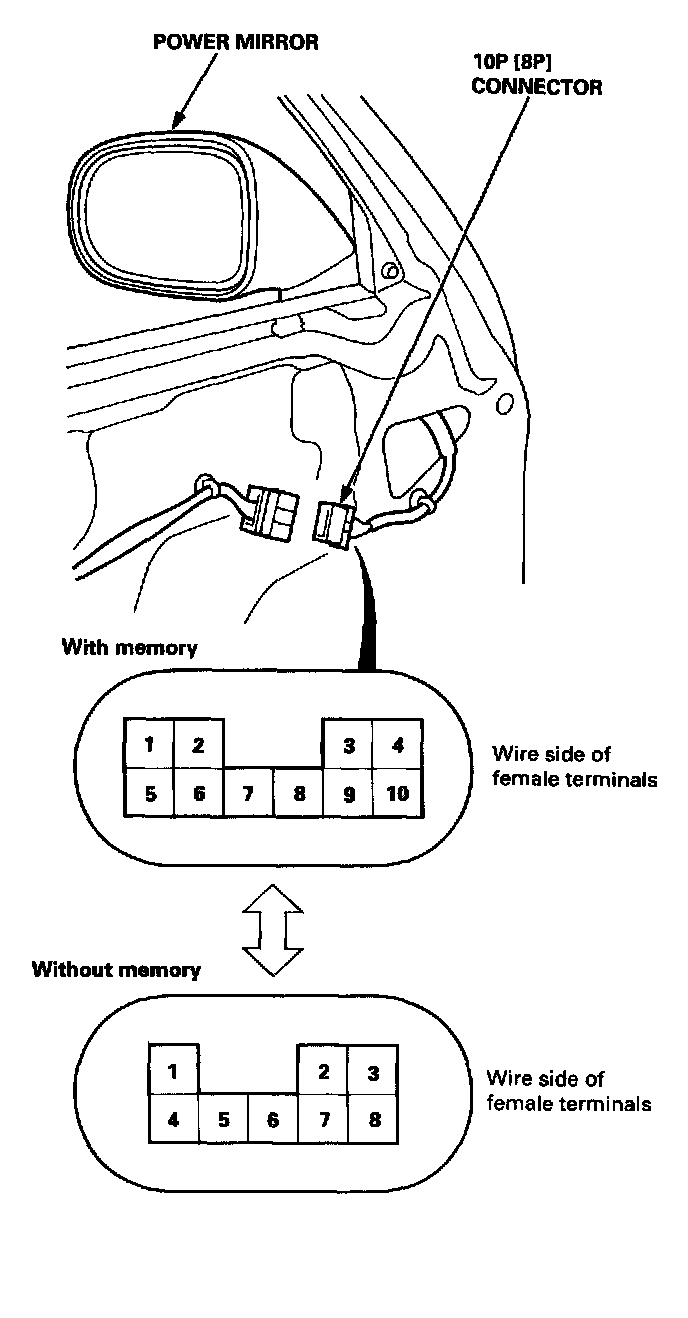

2. Disconnect the 10P [8P] connector from the power mirror actuator.

3. Check actuator operation by connecting power and ground according to the table.

Defogger Test:

4. Check for continuity between the No.3 [No.2] and No.4 [No.3] terminals of the 10P [BP] connector. There should be continuity.
5. If the mirror fails to work properly, replace the mirror actuator or mirror sub assembly.
