Stall Speed Test

Test

CAUTION:
- To prevent transmission damage, do not test stall speed for more than 10 seconds at a time.
- Do not shift the lever while raising the engine speed.
- Be sure to remove the pressure gauge before testing stall speed.

1. Engage the parking brake, and block the front wheels.
2. Connect a tachometer to the engine, and start the engine.
3. Make sure the A/C switch is OFF.
4. After the engine has warmed up to normal operating temperature (the radiator fan comes on), shift into 2 position.

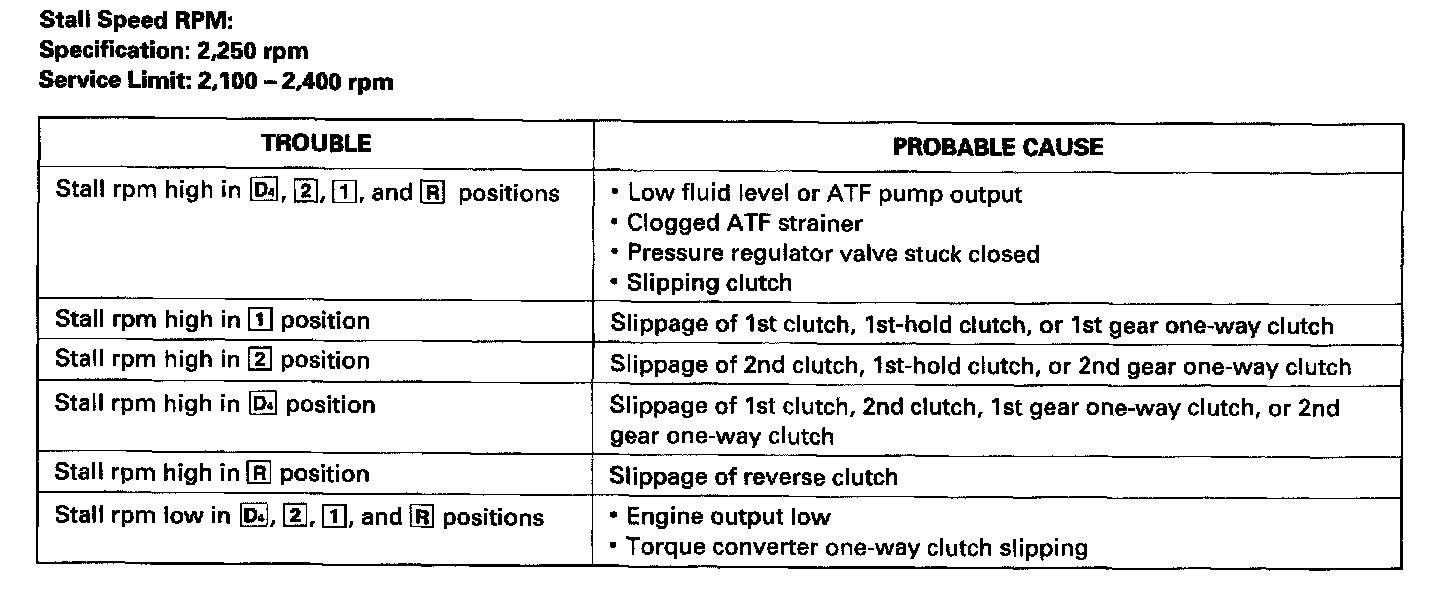

5. Fully press the brake pedal and accelerator for 6 to 8 seconds, and note engine speed.





6. Allow two minutes for cooling, then repeat the test in D4, 1 and R positions.

NOTE:
- Stall speed tests should be used for diagnostic purposes only.
- Stall speed should be the same in D4, 2, 1, and R positions.
