Grille: Service and Repair
Front Bulkhead Cover ReplacementNOTE: -
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
-
Take care not to scratch the
front bulkhead and body.
1.

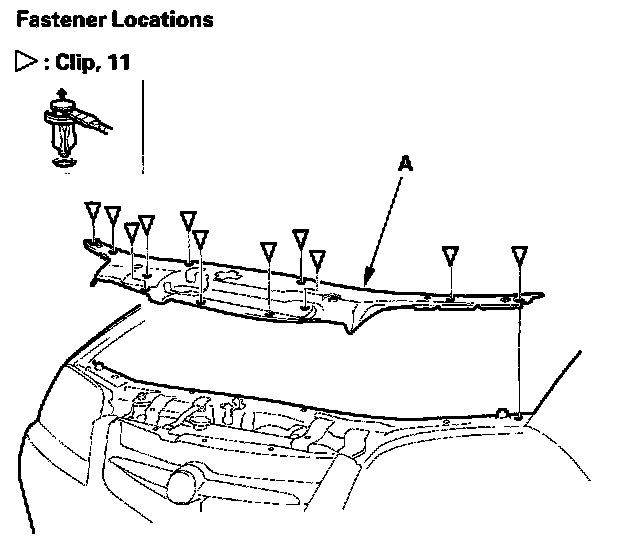

Detach the clips, then remove the
front bulkhead cover (A).
2.
Install the
front bulkhead cover in the reverse order of removal, and replace any damaged clips.
